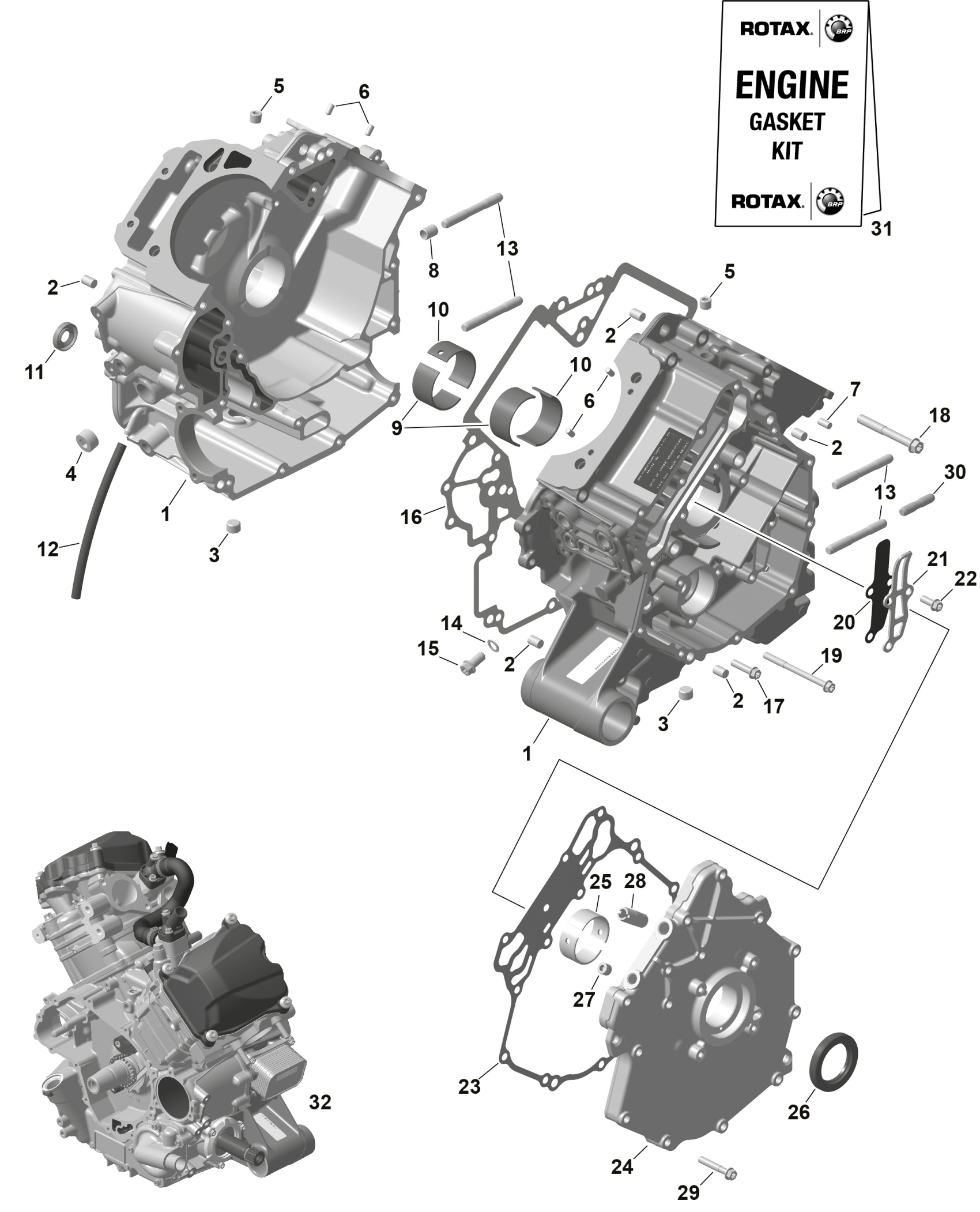

Can-Am RENEGADE - 4X4 - XMR - 650 EFI - 5TTA - Catalyst Gray - 2026 ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 12

420685253

$1,150.49

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M12x1,5

420840658

$7.51

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

5

Plug Screw M10 X 1

420641323

$14.28

6

Drive Pin 5 X 10

420929650

$1.68

7

Needle Pin

420932780

$7.41

8

Dowel Pin 10 X 13

420929670

$11.60

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Oil Seal

420650315

$11.65

12

Polyurethane Hose 5.2 mm

415110000

Unavailable

13

Stud

420240816

$7.09

14

Sealing Ring

420950141

$2.00

15

Torx Flange Screw M8 X 16

420440852

$4.12

16

Gasket

420651227

$31.99

17

Torx Flange Screw M6 X 25

420440234

$3.06

18

Torx Flange Screw M8 X 65

420440402

$7.41

19

Torx Flange Screw M6 X 75

420440657

$4.44

20

Reed Valve

420224721

$19.19

21

Reed Valve Stop

420224725

$11.63

22

Torx Flange Screw M6 X 16

420440162

$3.17

23

Gasket

420651211

$26.49

24

PTO Cover Ass'y | Includes 25a to 29

420612335

$280.99

25

Bearing Sleeve

420233995

$20.99

26

Oil Seal

420631933

$27.49

27

Plug Screw M10 X 1

420641323

$14.28

28

Hose Nipple

420256332

$17.53

29

Torx Flange Screw M6 X 35

420440274

$1.01

30

Stud

420241019

$3.24

31

Gasket Set

420684154

$381.49

32

Engine Long Block 660 | PRO Package

420066050

$3,887.99
