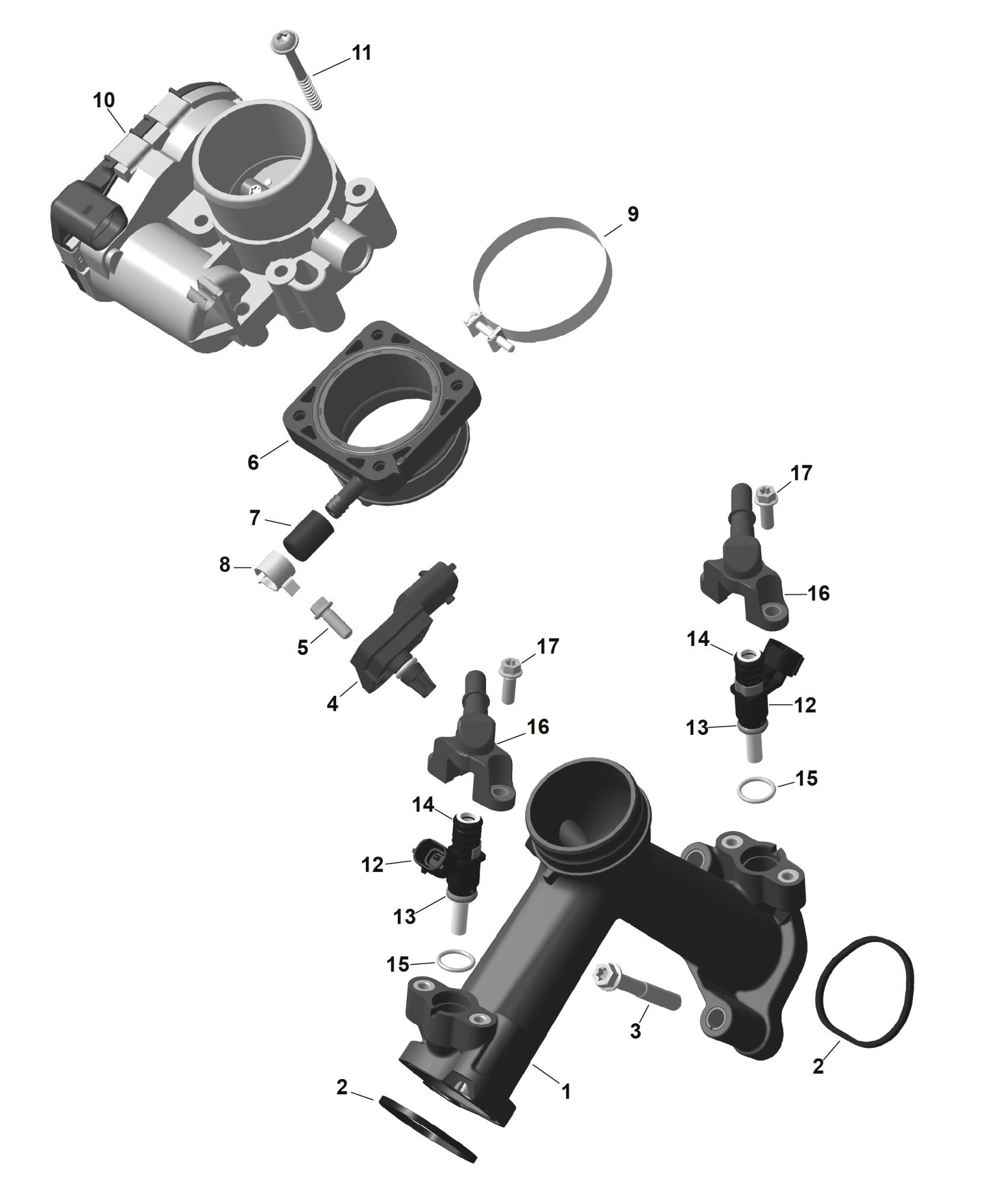

Can-Am RENEGADE - 4X4 - XMR - 650 EFI - 5TTA - Catalyst Gray - 2026 ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667581

$139.99

2

Gasket

420630642

$5.39

3

Torx Flange Screw M8 X 55

420641213

$7.41

4

Pressure And Temperature Sensor

420874658

$119.99

5

Hex. Flange Screw M6 X 12

420440149

$2.11

6

Flange

420267617

$65.99

7

Closure Cap

420201911

$4.86

8

Spring Type Clamp 14

420853512

$4.55

9

Clamp

420251480

$14.28

10

Throttle Body

420893149

$646.49

11

Torx Flange Screw M6 X 50

420441588

$4.44

12

Injection Valve Ass'y | Includes 17 to 19

420874840

$174.99

13

O-Ring

420431890

$7.49

14

O-Ring

420631220

$14.28

15

O-Ring

420631296

$0.76

16

Fuel Rail

420874901

$24.49

17

Torx Flange Screw M6 X 16

420440164

$2.19
