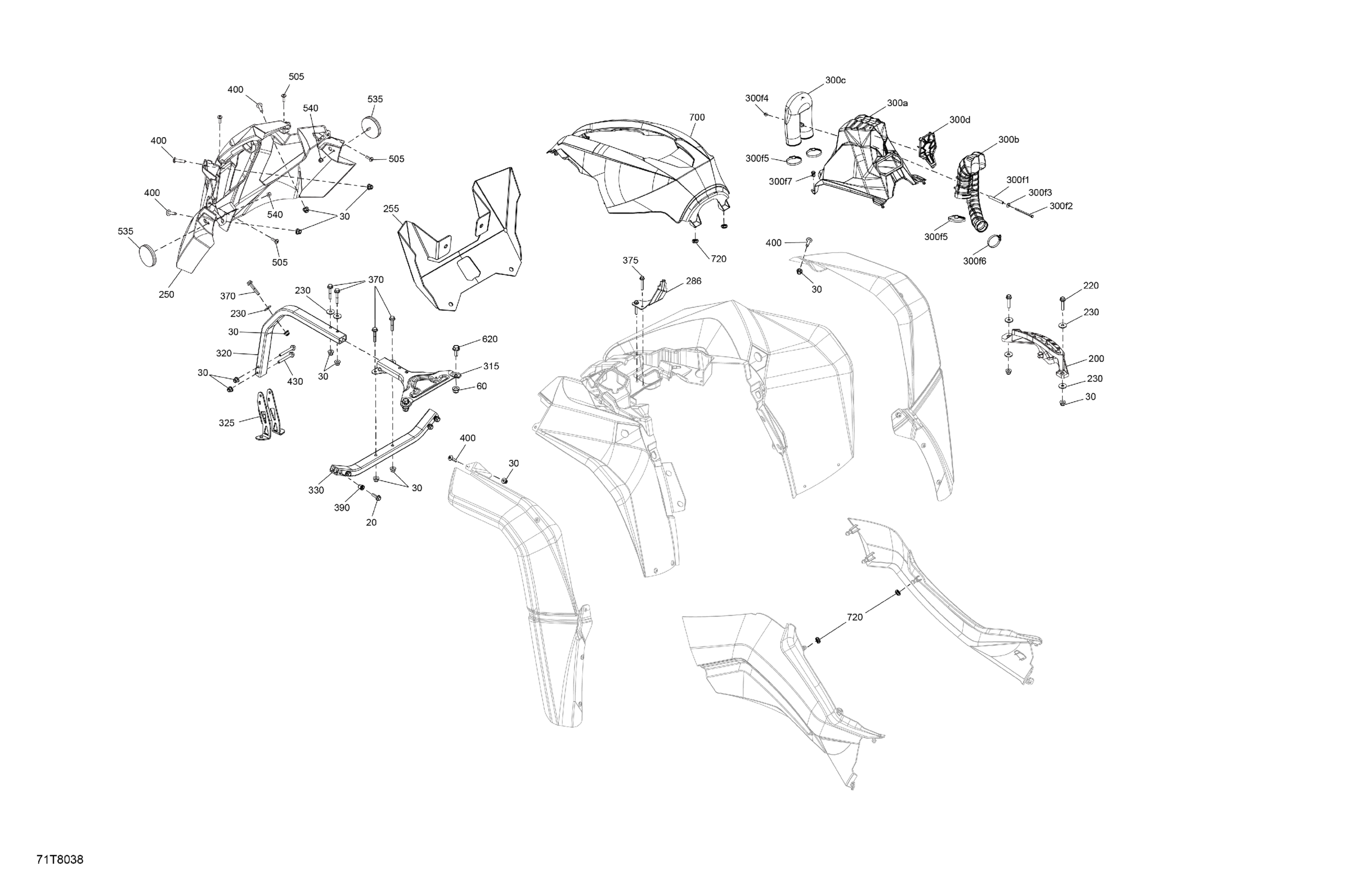

Can-Am RENEGADE - 4X4 - XMR - 1000R - 4FJC - Can-Am Red, 2018 Body - Front Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$0.83

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M8

233281434

$1.74

200

Lever Indicator | 1000

705004416

$16.62

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

250

Front Facia

705010673

$67.66

255

Front Facia

705009707

$111.51

286

Fuse Bracket

705009695

$33.05

300a

Hood XMR

705009685

$86.12

300b

Upper Air Inlet

707001779

$83.05

300c

Upper Air Outlet

707001782

$50.74

300d

Prefilter Screen

705010922

$20.01

300f1

Bushing

293900122

$15.35

300f2

Hex. Screw M6 X 100

230060060

$6.08

300f3

Flat Washer M6

250200115

$2.72

300f4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300f5

Norma Clamp

293650091

$4.60

300f6

Norma Clamp

293650077

$6.11

300f7

Tuflok Plastic Rivet

293150230

$1.21

315

Bracket

705003599

$22.28

320

Front Sectinal Bent Tube

705016643

$94.58

325

Support

705009706

$44.58

330

Sectinal Bent Tube

705016642

$94.58

370

Hex. Flange Screw M6 X 35

207663544

$0.74

375

Hex. Flange Screw M6 X 40

207664044

$2.18

390

Insert

293450275

$9.89

400

Torx Screw M6 X 25

250000758

$1.74

430

Hex. Flange Screw M6 X 45

207664544

$1.07

505

Torx Screw K50 X 16

250000720

$1.39

535

Amber Reflector | Except Europe Model

705011222

$12.32

540

Hex. Flange Elastic Nut M5

233251414

$1.66

620

Hex. Flange Screw M8 X 20

207682044

$0.92

700

Carbon Black Central Panel

715005249

$364.58

720

Grommet

705003264

$3.43
