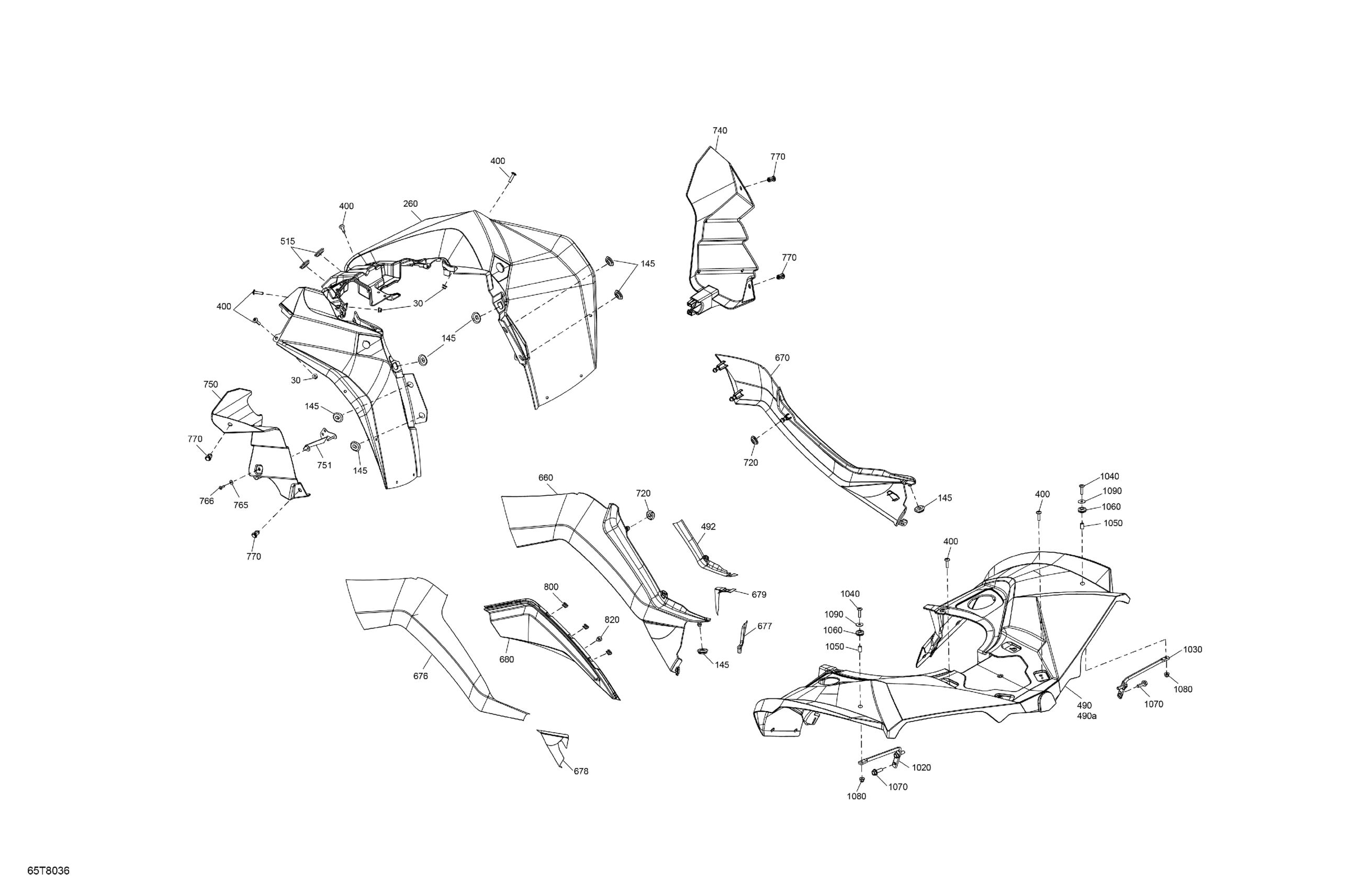

Can-Am RENEGADE - 4X4 - XMR - 1000R - 4FJC - Can-Am Red, 2018 Body - Fender Kit Diagram

Description

Price

Flange Elastic Nut M6

233261434

$4.15

145

Oval Washer

705000321

$5.33

260

Black Front Fender | Model North America

715003160

$525.34

400

Torx Screw M6 X 25

250000758

$2.00

490

Black Rear Fender | Model North America

715003171

$414.90

490a

Rear Fender

705008622

Unavailable

492

Heat Shield

705010559

$8.66

515

Oblong Grommet

705003668

$5.21

660

Carbon Black, LH Side Panel

705012137

$272.36

670

Carbon Black, RH Side Panel

705012138

$272.36

676

Reflective Sheet

705005620

$11.51

677

Heat Shield

705010557

$8.66

678

Reflective Sheet | Outlander

705005622

$3.81

679

Heat Shield

705010558

$8.66

680

Panel Extension

705004988

$13.84

720

Grommet

705003264

$3.94

740

RH Front Wheel Arch Protector

705017922

$23.85

750

LH INNER FENDER - Call your local BRP dealership

705004307

Unavailable

751

LH Bracket Ass'y

705010024

$47.73

765

Stainless Steel Flat Washer

234062670

$2.00

766

Torx Screw M6 X 20

250000722

$1.54

770

Tuflok Plastic Rivet

293150230

$1.39

800

Clip

414479100

$1.81

820

Rubber Bumper

293830005

$6.12

1020

LH Fender Support

705010314

$46.24

1030

RH Fender Support

705010315

$46.24

1040

Torx Screw M6 X 25

250000758

$2.00

1050

Bushing

293900105

$6.07

1060

Overmolded Grommet

293720130

$4.25

1070

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

1080

Flange Elastic Nut M6

233261434

$4.15

1090

Flat Washer

250200040

$1.76
