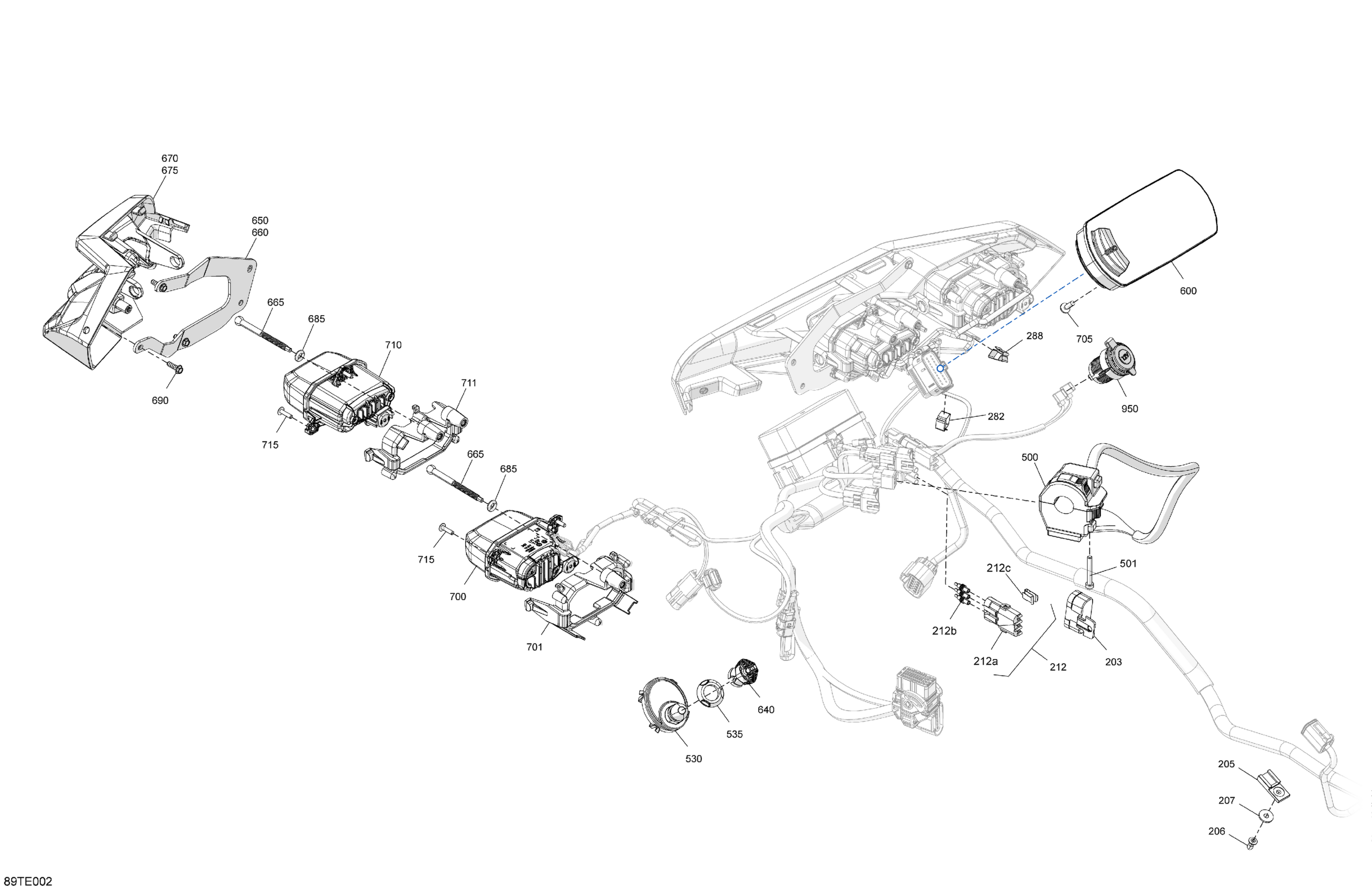

Can-Am RENEGADE - 4X4 - STD - 650 EFI - 5PSB - Catalyst Gray - 2025 Electric - Front Section Diagram

Description

Price

203

DPS Connector Cap | Not Shown

710005760

$16.86

205

Clip

270000141

$11.49

206

Pop Rivet 3/16 X ,551

293150301

$0.77

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

212b

Wire Seal

278000216

$3.19

212c

Clip

710000992

$4.29

282

Clip

710010204

$1.67

288

Clip

710010204

$1.67

500

Switch Handle

710006134

$71.99

501

Socket Head Screw M5 X 35

205053588

$1.90

530

Terminal DESS One Wire

515179305

$74.99

535

Specialized Nut

278004274

$3.28

600

Multifunction Compact Gauge

710008298

$389.99

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

650

LH Front Headlight Support

710008461

$38.99

660

RH Front Headlight Support

710008462

$38.99

665

Ajustment Screw

710005837

$6.35

670

Trim_Headlight Fl

705016529

$51.99

675

RH Front Headlight Trim

705016532

$66.99

685

O-Ring

293300192

$4.92

690

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

700

Low Beam Light

710008088

$139.99

701

Exterior Headlight Support

710008396

$26.99

705

Torx Screw K50 X 16

250000720

$1.69

710

HIgh Beam Light

710006910

$129.99

711

Interior Headlight Support

710008394

$9.09

715

Torx-Truss Pt K40 X 16

250000759

$2.11

950

DC Outlet

710001248

$37.99
