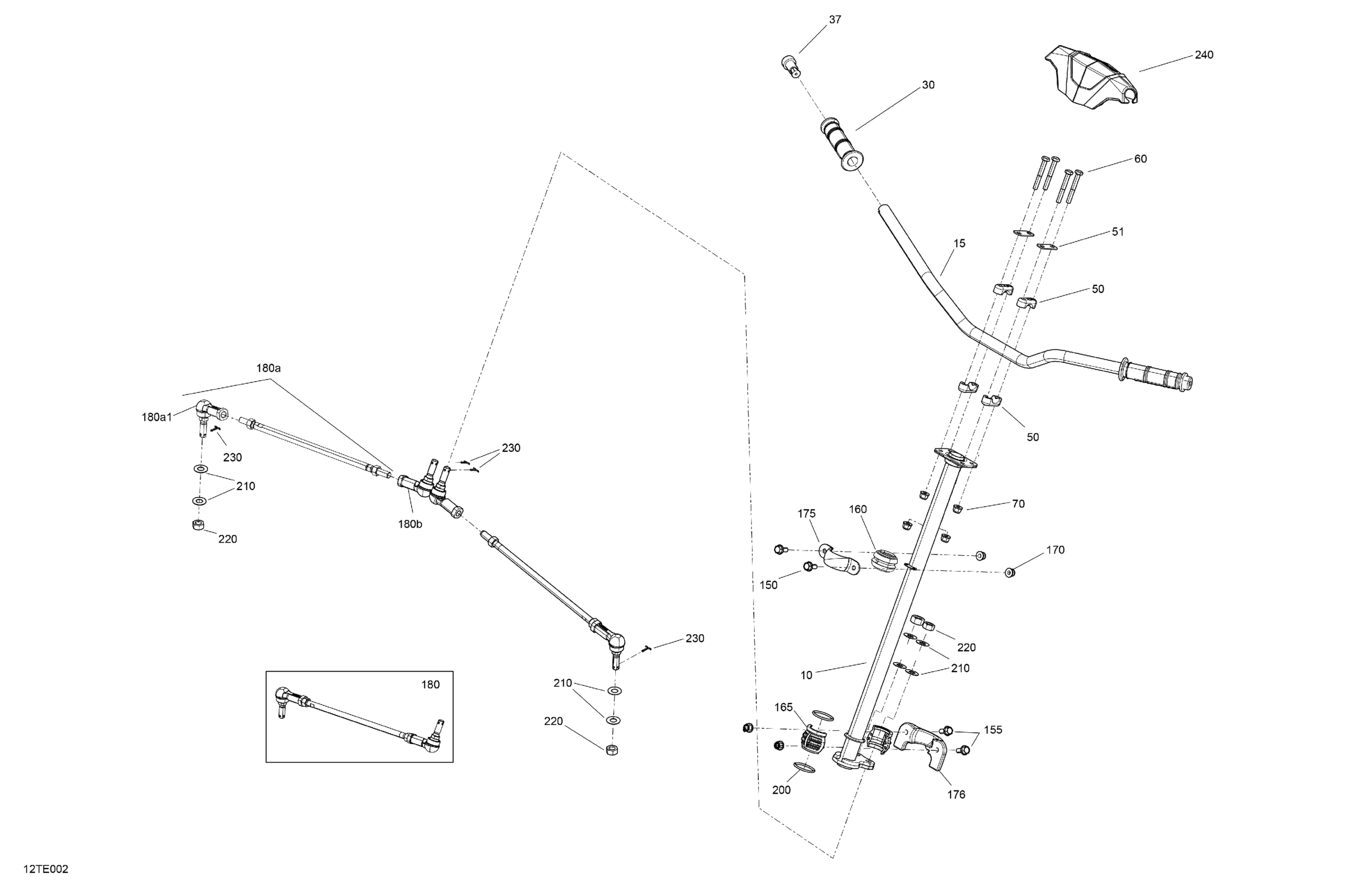

Can-Am RENEGADE - 4X4 - STD - 650 EFI - 5PSB - Catalyst Gray - 2025 Mechanic - Steering Diagram

Description

Price

Steering Axle

709402806

$174.99

10a8

Steel Wire S6 .9mm HI-DEP | Not Shown

075011200

Unavailable

Deep Black, Handlebar

709402872

$56.99

Handle Grip

709400493

$14.83

End Piece

709400449

$8.49

Steering Support

709401799

$22.49

Stiffner

709400509

$4.69

Hex. Screw M8 X 60

207086046

$2.85

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682544

$1.35

160

Spherical Bushing

709402169

$7.65

165

Spherical Half Bushing

709400783

$7.65

170

Hex. Elastic Flange Nut M8

233281416

$1.48

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

180a

Not Available As Spare Parts

XXX

Unavailable

180a1

LH Ball Joint

709402303

$36.99

180b

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Hex Nut M12

250100239

$2.00

230

Cotter Pin

211400013

$0.37

240

Cover

709400939

$24.99
