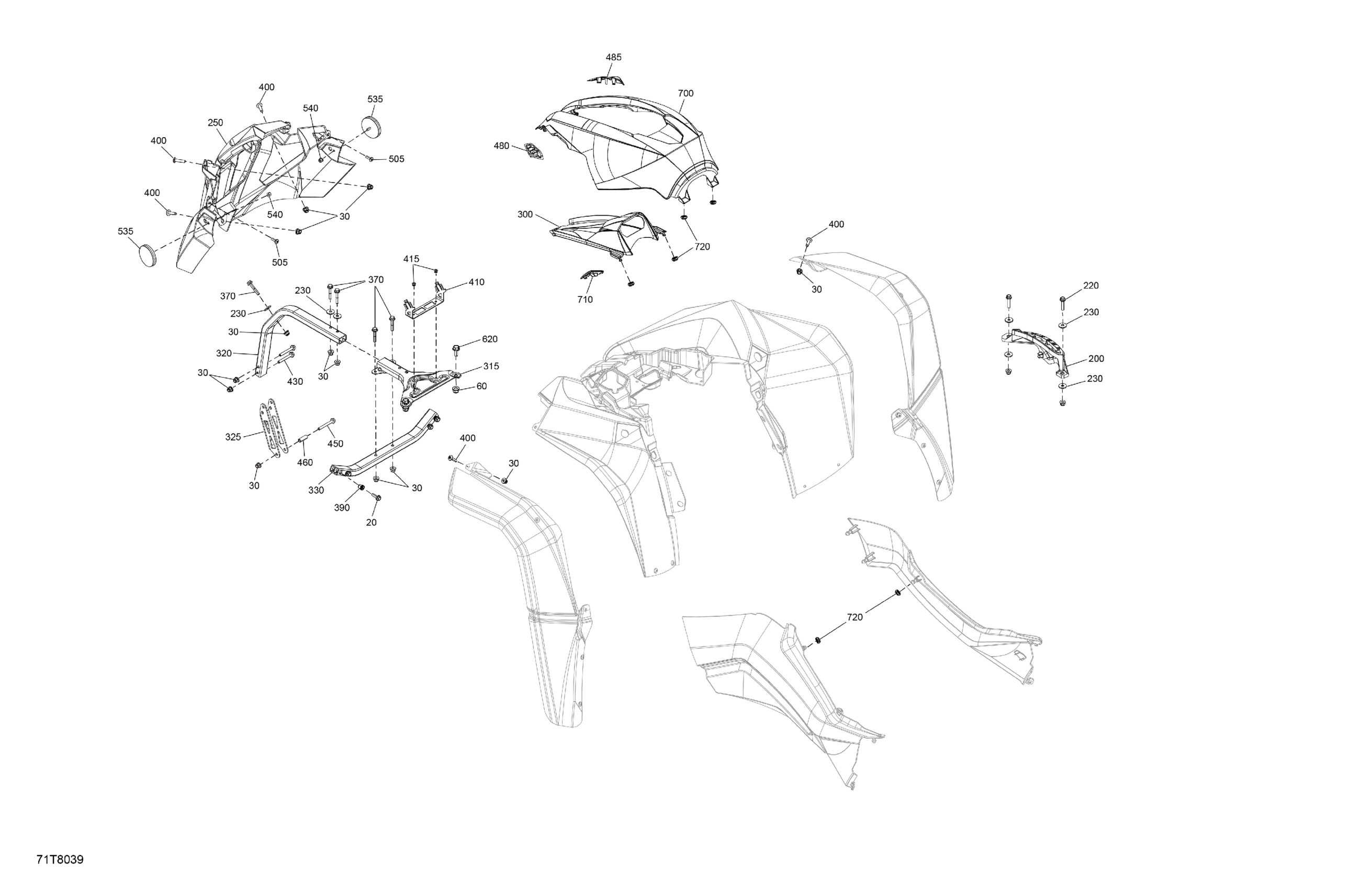

Can-Am RENEGADE - 4X4 - STD - 1000R - 4GJA - Can-Am Red, 2018 Body - Front Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$0.83

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M8

233281434

$1.74

200

Lever Indicator | 1000

705004416

$15.64

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

250

Front Facia

705003948

$49.97

300

Dashboard

705003556

$41.76

315

Bracket

705003599

$21.61

320

Front Sectinal Bent Tube

705016643

$91.76

325

Support

705002282

$28.33

330

Sectinal Bent Tube

705016642

$91.76

370

Hex. Flange Screw M6 X 35

207663544

$0.74

390

Insert

293450275

$9.89

400

Torx Screw M6 X 25

250000758

$1.74

410

Fuse Holder

710002482

$6.69

415

Pop Rivet 3/16"

390402400

$0.25

430

Hex. Flange Screw M6 X 45

207664544

$1.07

450

Hex. Flange Screw M6 X 50

207665044

$3.38

460

Spacer

705005809

$11.31

480

LH Grille

705008137

$18.63

485

RH Grille

705008138

$18.63

505

Torx Screw K50 X 16

250000720

$1.39

535

Amber Reflector | Except Europe Model

705011222

$11.96

540

Hex. Flange Elastic Nut M5

233251414

$1.66

620

Hex. Flange Screw M8 X 20

207682044

$0.92

700

Red Central Panel Kit | Package STD, North America Model

715003174

$134.30

710

Cap

705002353

$13.78

720

Grommet

705003264

$3.43
