05- Suspension - Rear Components

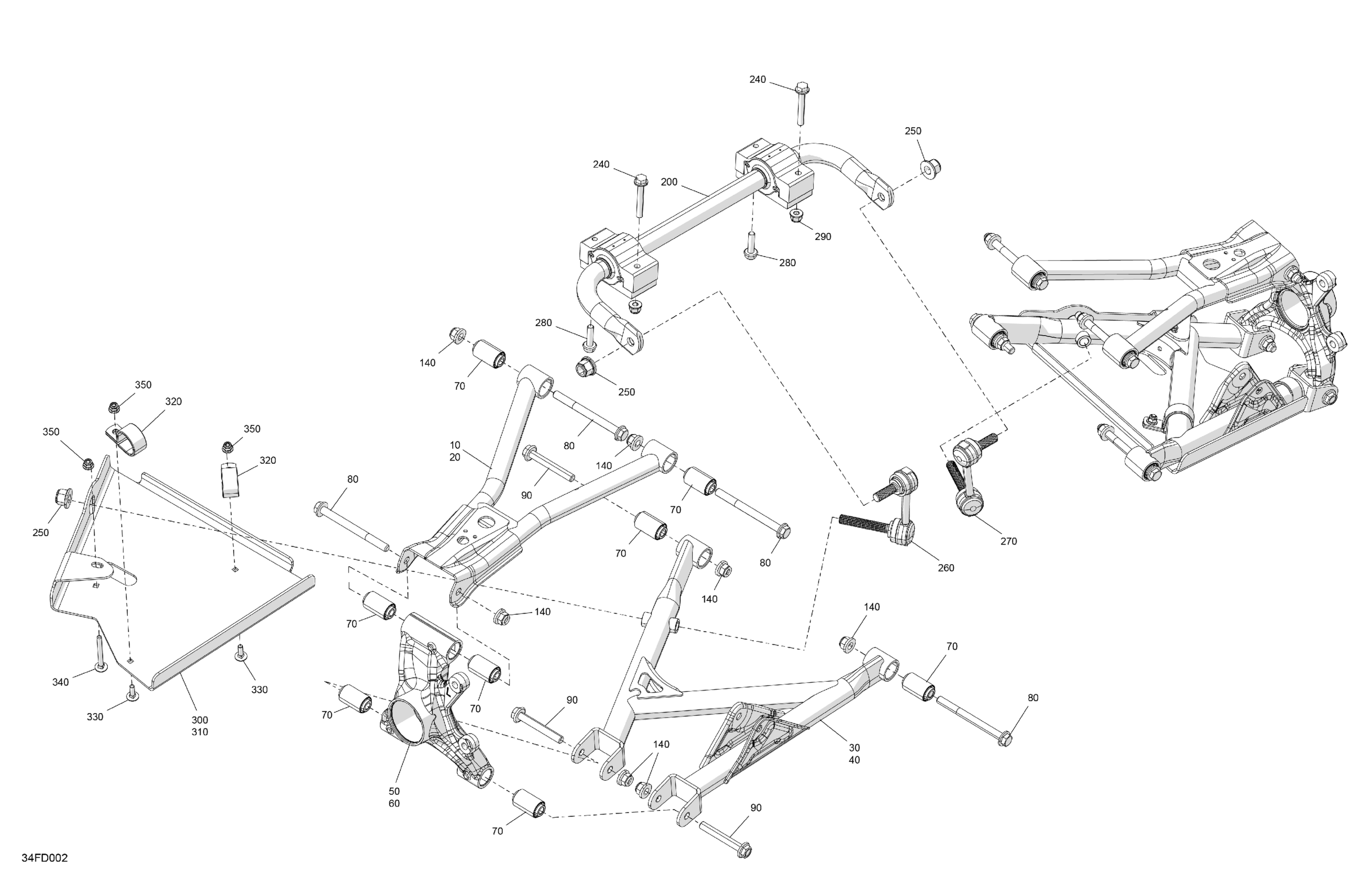

Can-Am North America - Outlander PRO HD7 4X4 - 1PRB - Hunting Edition - Wildland Camo, 2024 05- Suspension - Rear Components Diagram
#
Description
Price
10
LH Upper Suspension Arm
706003510
Unavailable
20
RH Upper Suspension Arm
706003511
Unavailable
30
LH Lower Suspension Arm
706003512
Unavailable
40
RH Lower Suspension Arm
706003513
Unavailable
50
LH Rear Knuckle
706004297
Unavailable
60
RH Rear Knuckle
706004298
Unavailable
70
Suspension Arm Bushing
706004511
Unavailable
80
Hex Flange Screw DIN.6921
230601046
Unavailable
90
Hex. Flange Screw M10 X 70
207607046
Unavailable
140
Hex. Flange Elastic Nut M10
233201436
Unavailable
200
Stabilizer Bar Ass'y
706004983
Unavailable
240
Hex. Flange Screw M8 X 55
207685544
Unavailable
250
Hex. Flange Elastic Nut M12
233221414
Unavailable
260
LH Rear Stabilizer Link
706205088
Unavailable
270
RH Rear Stabilizer Link
706205089
Unavailable
280
Hex. Flange Screw M8 X 30 Scotch Grip
250001073
Unavailable
290
Hex. Flange Elastic Nut M8
233281414
Unavailable
300
LH Rear Suspension Arm Guard
706003924
Unavailable
310
RH Rear Suspension Arm Guard
706003925
Unavailable
320
Fastener
706005364
Unavailable
330
Carriage Bolt M6 X 20
250000677
Unavailable
340
Carriage Bolt M6 X 60
207766054
Unavailable
350
Hex. Flange Elastic Nut M6
233261466
Unavailable
