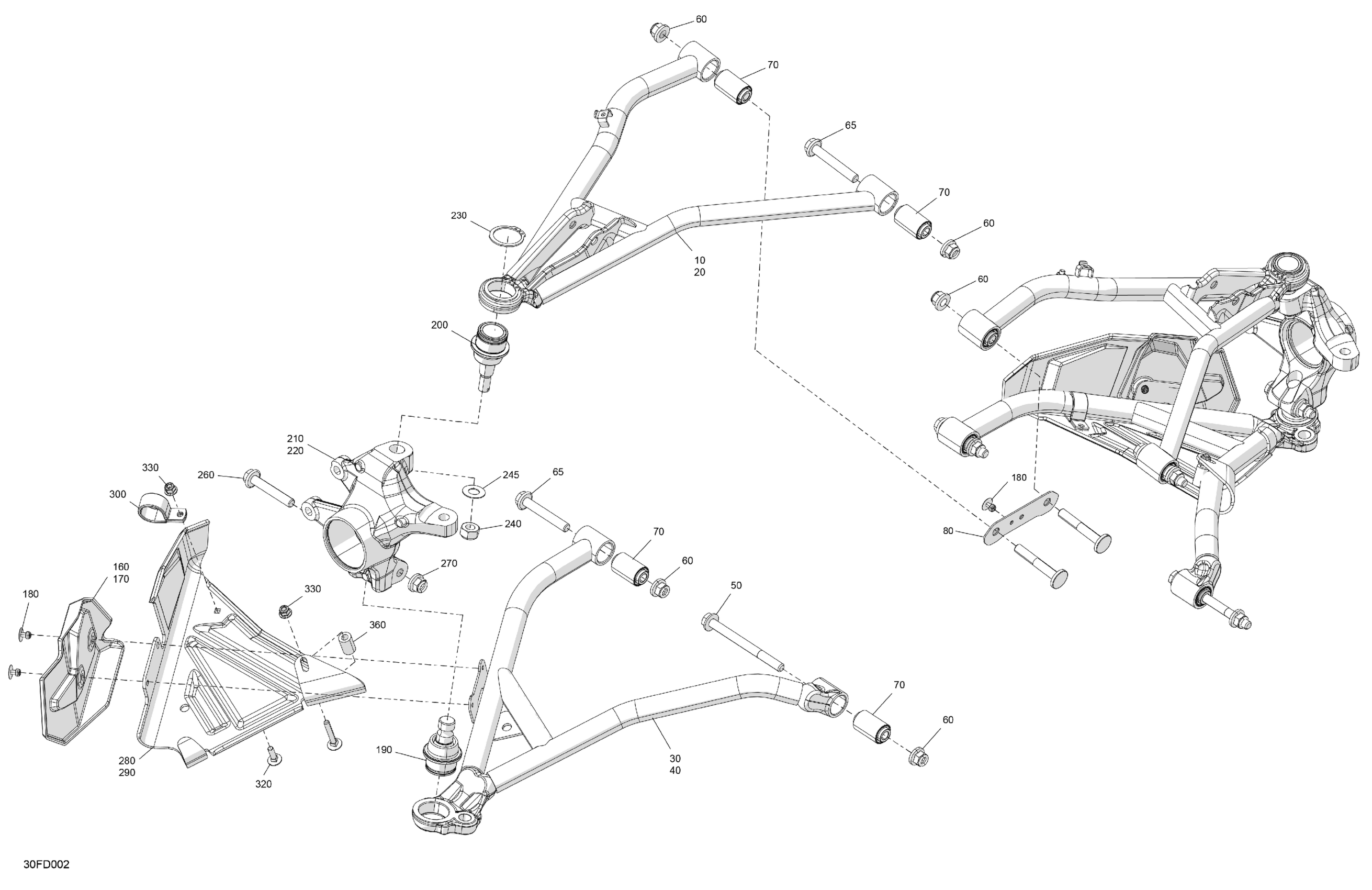

Can-Am Outlander PRO HD7 4X4 - 1PRB - Hunting Edition - Wildland Camo, 2024 Suspension - Front Components Diagram

Description

Price

LH Upper Suspension Arm

706203185

$156.89

RH Upper Suspension Arm

706203186

$156.89

LH Lower Suspension Arm

706203187

$156.89

RH Lower Suspension Arm

706203188

$156.89

Hex Flange Screw DIN.6921

230601046

$2.20

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Screw M10 X 65

207606536

$3.61

Suspension Arm Bushing

706004511

$12.91

Suspension Arm Anchorage

705208352

$124.58

160

LH CV joint Guard

706202134

$9.23

170

RH CV joint Guard

706202135

$9.23

180

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

190

Ball Joint

706202045

$35.35

200

Ball Joint

706202044

$35.14

210

LH Knuckle

706203212

$175.35

220

RH Knuckle

706203213

$175.35

230

Circlip

293370035

$2.55

240

Hex. Elastic Hex. Nut M12

250100089

$0.39

245

Hardened Washer

706200281

$2.34

260

Hex. Flange Screw M10 X 60

207606044

$2.78

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

LH Front Formed Suspension Guard

706205630

$114.58

290

RH Front Formed Suspension Guard

706205631

$114.58

300

Fastener

706205579

$8.29

320

Carriage Bolt M6 X 20

250000677

$2.06

330

Hex. Flange Elastic Nut M6

233261466

$1.66

340

Torx-Truss M/S M5X20 | Not Shown

250000895

$2.06

350

Flange Elastic Nut M5

233251434

$1.66

360

Spacer

706205578

$7.60
