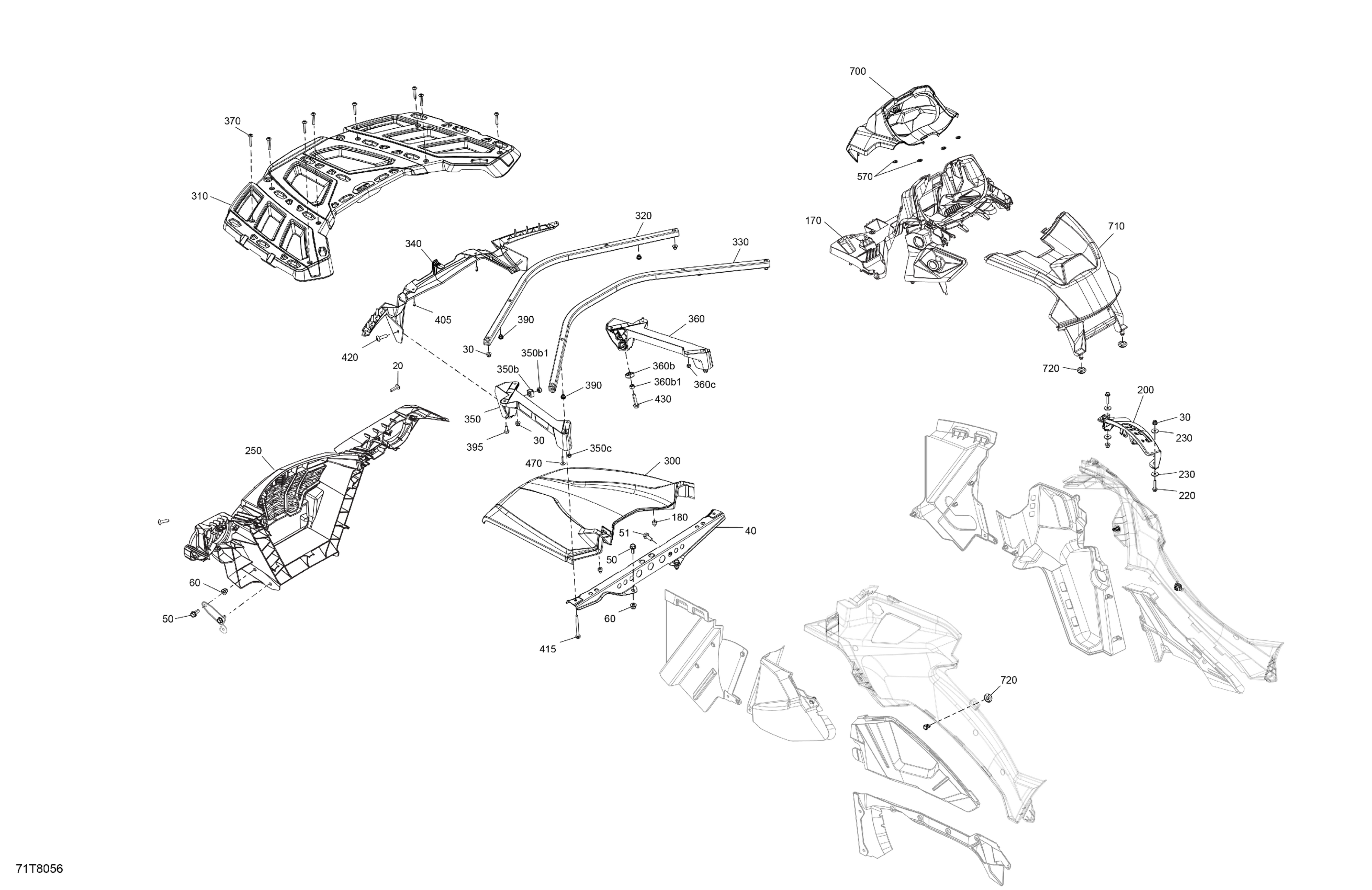

Can-Am OUTLANDER MAX - 4X4 - XTP - 850 EFI - 5FJC - Timeless Black Metallic - CALI, 2018 Body - Front Section Diagram

Hex. Flange Screw M6 X 20

207662054

$0.96

Flange Elastic Nut M6

233261434

$4.15

Cargo Rack Center Support

705006812

$55.19

Hex. Flange Screw M8 X 20

207682044

$1.06

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Elastic Nut M8

233281434

$2.00

Console Support Ass'y | Model-Europe/International

715006101

$52.21

Rubber Bumper

293830005

$6.12

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$23.85

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Flat Washer

224061201

$1.27

Fascia

705012822

$108.18

Black, Hood Kit

715004679

$102.21

Luggage Rack Kit

715001852

$200.72

Sectional Bent Tube

705016640

$34.30

Sectional Bent Tube

705016641

$38.03

Lugage Rack Moulding

705004523

$21.61

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$17.88

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

Hex. Elastic Nut M8 Brass

232581200

$1.48

Hex. Elastic Stop Nut M6

232561600

$1.06

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$17.88

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

Hex. Elastic Nut M8 Brass

232581200

$1.48

Hex. Elastic Stop Nut M6

232561600

$1.06

Black, Torx Screw M6 X 35

250000646

$0.90

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Screw K40 X 10

241140060

$1.43

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.00

Torx Screw M8 X 30

250000886

$2.00

Hex. Flange Screw M8 X 35

207683534

$2.00

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

Push Nut

732610072

$1.97

Gauge Support | XTP Model

705006322

$40.27

Dash Kit

715006098

$25.34

Grommet

705003264

$3.94
