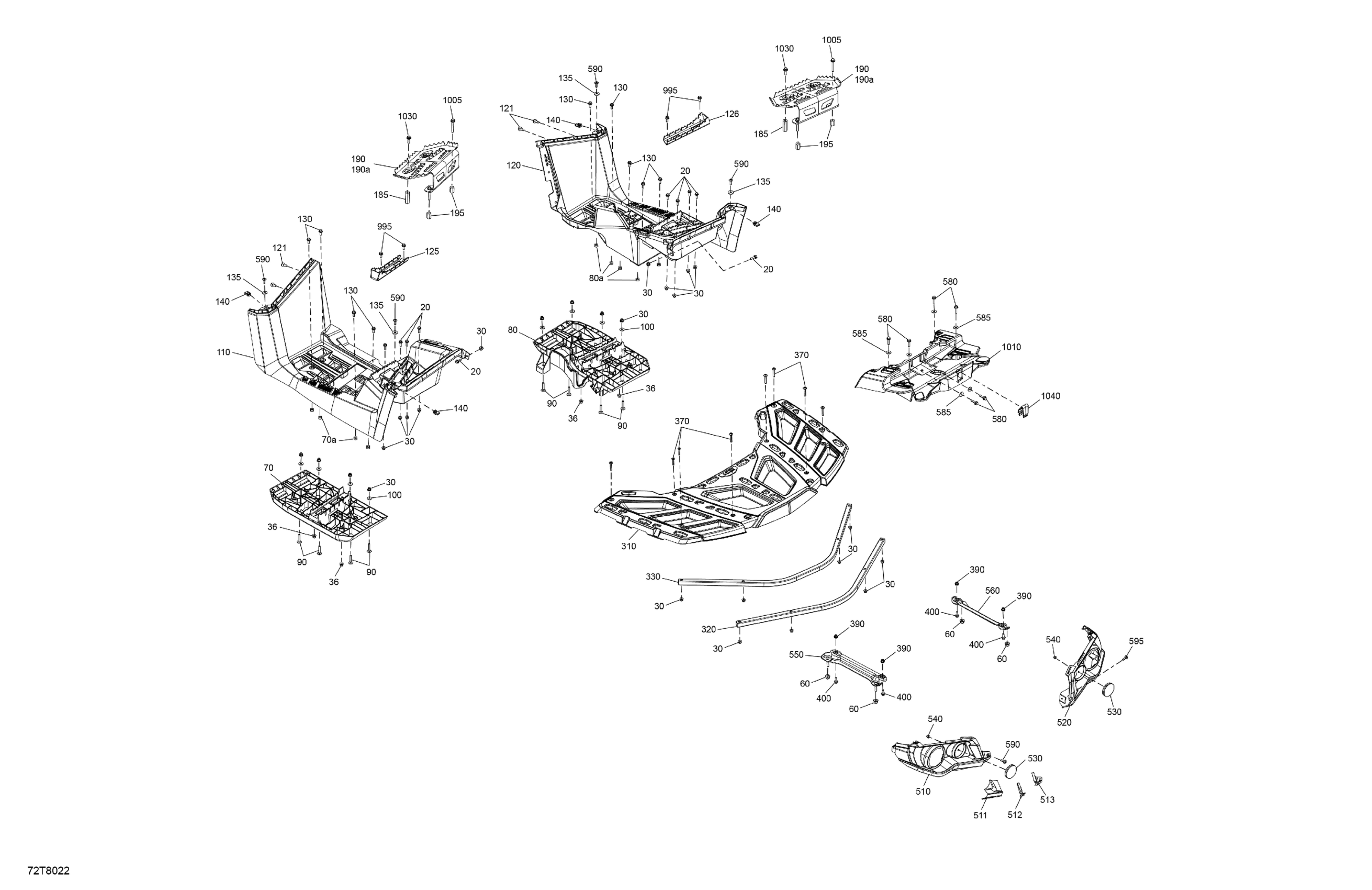

Can-Am OUTLANDER MAX - 4X4 - XMR - 1000R - 5KJB - Sunburst Yellow, 2018 Body - Rear Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.96

30

Flange Elastic Nut M6

233261434

$4.15

36

Flange Elastic Nut M6

233261434

$4.15

60

Hex. Flange Elastic Nut M8

233281434

$2.00

70

LH Structural Footboard

705011540

$108.18

70a

Square Nut M6

232862412

$1.36

80

RH Structural Footboard

705011542

$95.49

80a

Square Nut M6

232862412

$1.36

90

Carriage Bolt M6 X 35

207763554

$1.96

100

Flat Washer 6 mm

234062410

$0.73

110

LH Footboard

705005978

$162.66

120

RH Footboard

705005977

$162.66

121

Torx Screw K50 X 16

250000720

$1.60

125

LH Footrest

705004352

$30.57

126

RH Footrest

705005395

$35.79

130

Hex. Flange Screw M6 X 16

207661654

$2.00

135

Flat Washer

224061201

$1.27

140

Panel Nut M6 X 1.0

250100198

$1.99

185

Coupling Nut, Large

705006819

$11.64

190

Black, Footrest | Package XMR, Engine 1000R

705015693

$64.90

190a

Footrest

705005890

$57.43

195

Coupling Nut, Short

705006818

$8.87

310

Luggage Rack Kit

715001852

$200.72

320

Sectional Bent Tube

705016640

$34.30

330

Sectional Bent Tube

705016641

$38.03

370

Black, Torx Screw M6 X 35

250000646

$0.90

390

Insert Half Hex Body M6 x 1.0

250100199

$2.91

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

510

LH Rear Facia | North America, International

705006643

$14.27

511

Heat Shield

707002103

$8.66

512

Heat Shield

707002107

$1.91

513

Heat Shield

707002293

$8.66

520

RH Rear Facia | North America, International

705006650

$14.27

530

Red Reflector

705011221

$11.96

540

Hex. Flange Elastic Nut M5

233251414

$1.91

550

LH Support

705007277

$27.58

560

RH Support

705007278

$27.58

580

Hex Flange Screw M6 X 25

250000841

$7.06

585

Stainless Steel Flat Washer

234062670

$2.00

590

Torx Screw M6 X 20

250000722

$1.54

595

Hex. Flange Screw M6 X 16

207661654

$2.00

995

Hex. Flange Screw M6 X 20

207662034

$2.00

1005

Hex. Flange Screw M6 X 45

207664536

$2.70

1010

Seat Holder

705007948

$52.21

1030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

1040

Rod Cap

708200462

$2.97
