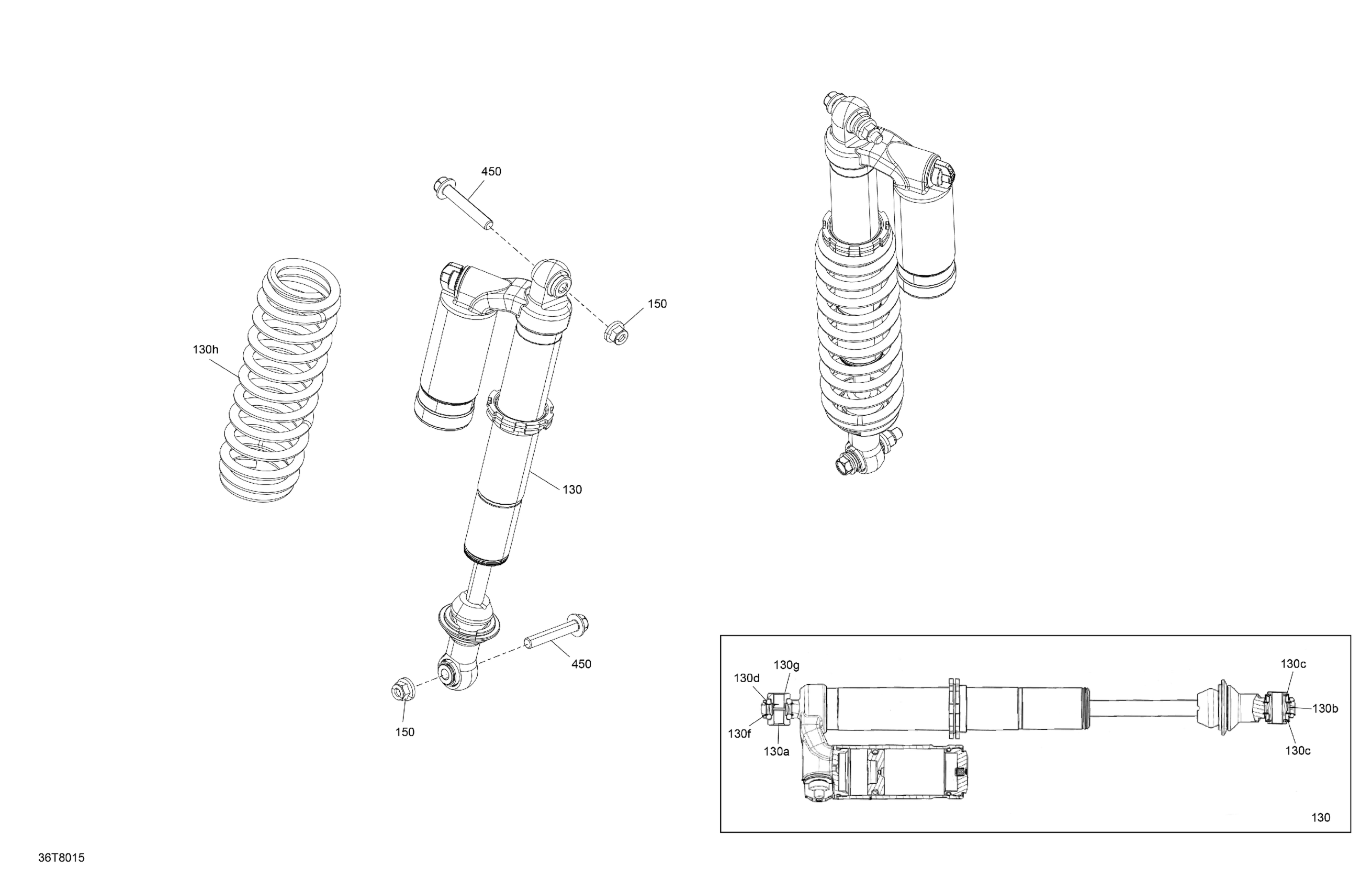

Can-Am North America - OUTLANDER MAX - 4X4 - XMR - 1000R - 5KJB - Sunburst Yellow, 2018 05- Suspension - Rear Shocks Diagram

Rear Shock | Package XMR 1000

706002601

Unavailable

SPHERICAL BEARING - Call your local BRP dealership | Package XMR 1000

715900484

Unavailable

Ball Journal

715900336

Unavailable

Protector

715900331

Unavailable

O-Ring Bushing

715900209

Unavailable

Retaining Ring

715900252

Unavailable

Interior Bushing | XTP

715900210

Unavailable

Spring Yellow Sunburst

706002808

Unavailable

Hex. Flange Elastic Nut M10

233201436

Unavailable

Hex. Flange Screw M10 X 6

207606046

Unavailable
