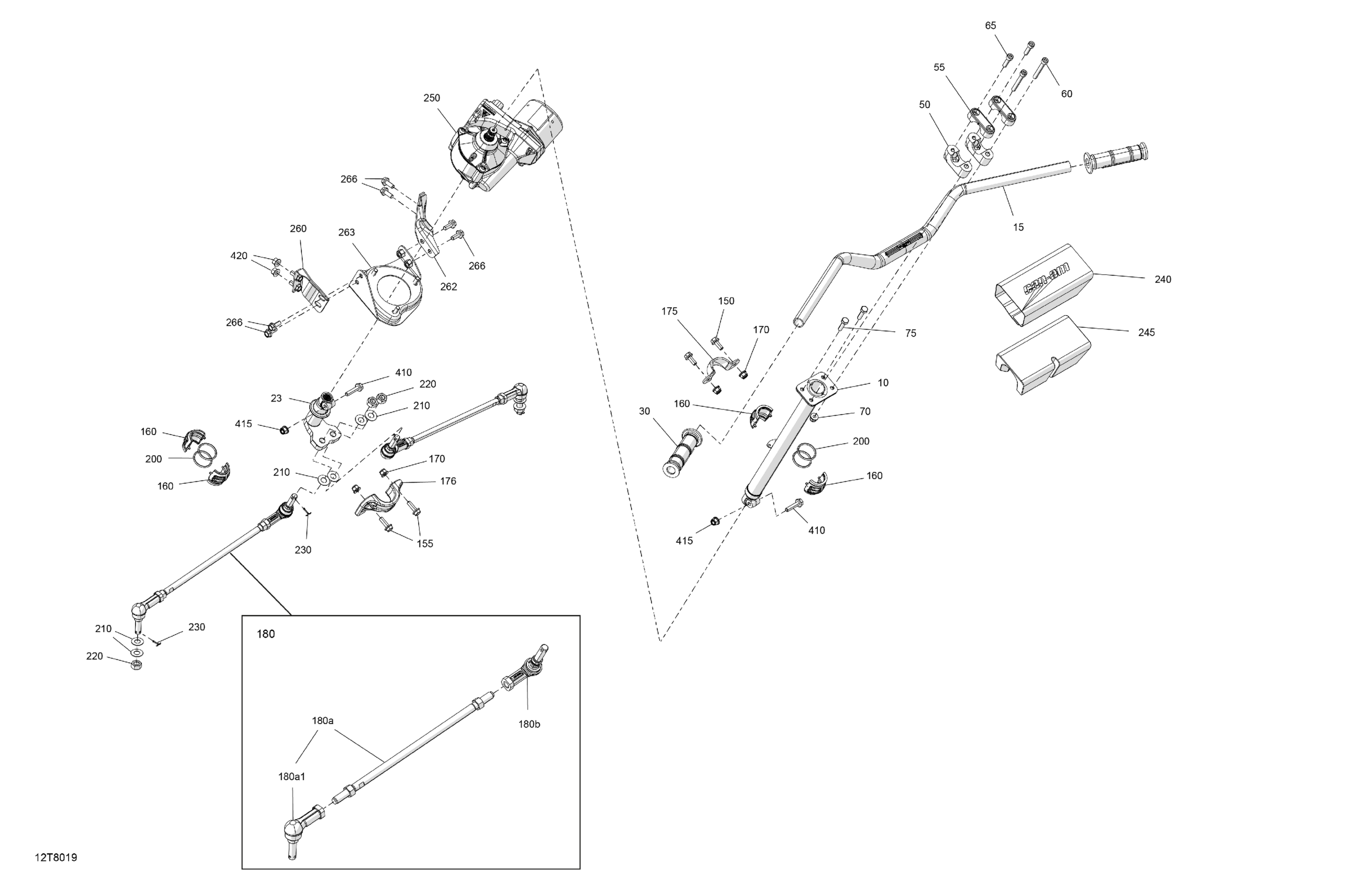

Can-Am OUTLANDER MAX - 4X4 - XMR - 1000R - 5KJB - Sunburst Yellow, 2018 Mechanic - Steering Diagram

Description

Price

Main Tube Kit | Model With DPS

703501108

$61.16

Sunburst Yellow, Handle Bar

709402063

$58.93

Pitman Arm | Model XMR

703501161

$39.52

Handle Grip

709400493

$13.82

Lower Mounting Clamp

709402750

$23.10

Support

709400496

$23.10

Socket Head Screw M8 X 60

205086060

$3.88

Socket Screw M8 X 30

205083060

$3.27

Hex. Elastic Flange Nut M8

233281416

$1.43

Hex. Screw M8 X 30

207183060

$1.49

150

Hex. Flange Screw M8 X 20

207682044

$1.06

155

Hex. Flange Screw M8 X 25

207682544

$1.03

160

Spherical Half Bushing

709400783

$5.96

170

Hex. Flange Elastic Nut M8

233281414

$1.31

175

Upper Column Attachment

709400827

$0.97

176

Column Attachment

709401428

$35.04

180

Rod-Tie Ass'y | Incl 36

703501037

$102.21

180a

Rod-Tie Ass'y | Incl 36

703501037

$102.21

180a1

LH Ball Joint

709402303

$34.30

180b

RH Ball Joint

709402302

$34.30

200

O-Ring

293300068

$6.07

210

Hardened Washer

706200281

$2.69

220

Nut M12

250100099

$1.88

230

Cotter Pin

211400013

$0.31

240

Cover

709402113

$32.06

245

Foam

709400422

$15.64

250

Power Steering Ass'y | Model With DPS

709403187

$1,131.31

260

LH Power Steering Bracket | Model With DPS

709402184

$14.90

262

RH Bracket | Model With DPS

709402185

$25.34

263

Power Steering Support | Model With DPS

709401743

$16.39

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

410

Hex. Flange Screw M8 X 35

250000986

$2.00

415

Hex. Elastic Flange Nut M8

233281416

$1.43

420

Hex. Flange Nut M8

233081416

$1.87
