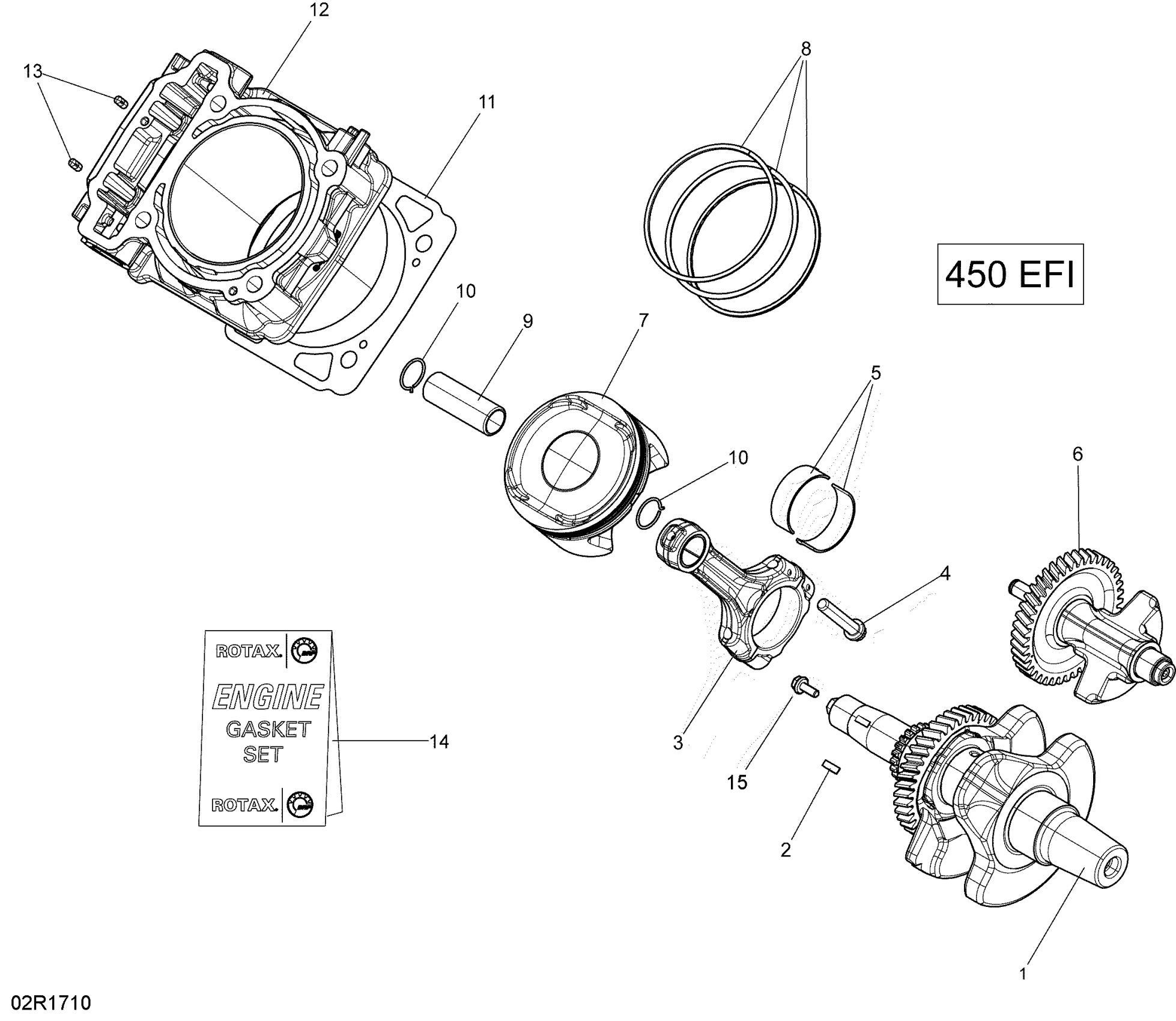

Can-Am OUTLANDER MAX - 4X4 - STD - 450 EFI - 5CJC - Viper Red - CALI, 2018 ROTAX - Crankshaft and Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y

420295030

$670.99

2

Woodruff Key

420246571

$4.44

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

$228.99

4

Connecting Rod Screw M8 X 1

420641645

$14.28

5

Plain Bearing 40 X 43 X 15

420233980

$28.49

6

Balance Shaft

420637455

$445.49

7

Piston Ass'y, 93.958 mm

420686310

$143.49

8

Piston Ring Set

420686314

$67.99

9

Piston Pin

420216270

$25.99

10

Piston Circlip

420845107

$4.89

11

Gasket

420450330

$13.76

12

Cylinder

420413263

$414.99

13

Drive Pin 5 X 10

420929650

$1.68

14

Gasket Set ( Engine)

420685125

$217.49

15

Hex Screw

295501162

$15.28
