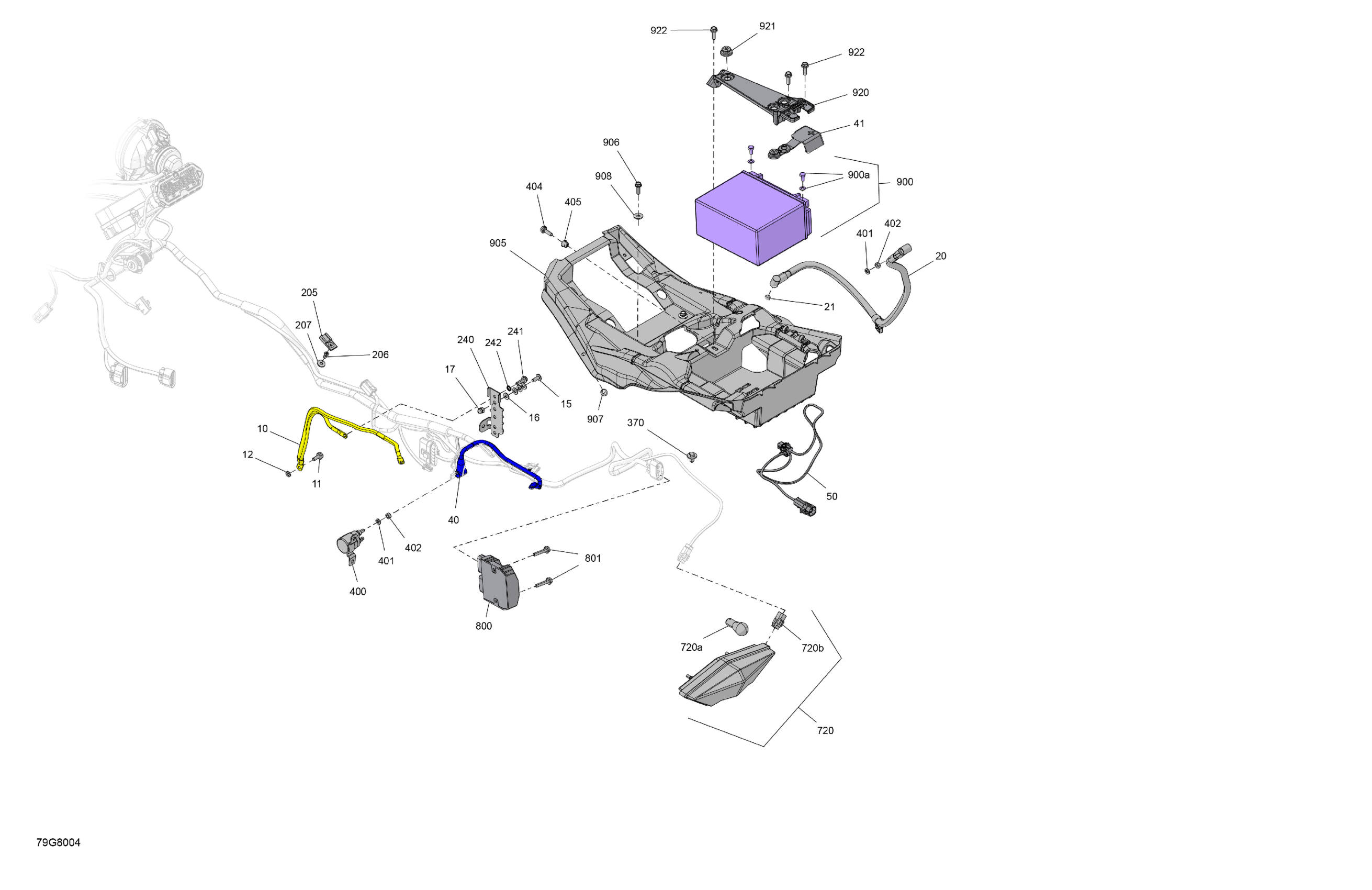

Can-Am OUTLANDER MAX - 4X4 - DPS - 570 EFI - 2FJF - Squadron Green - CALI, 2018 Electric - Rear Section Diagram

Ground Cable

710004382

$19.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Lock Washer Helical M6

234161601

$1.15

Torx Head Screw M6 X 16

250000717

$2.11

Flat Washer

224061121

$0.53

Domed Nut M6

232361493

$2.11

Positive Cable

710004377

$27.99

Elastic Stop Nut M6

232561414

$0.55

Positive Cable

710004376

$48.99

Battery Cable Cap

710006729

$7.20

Extension Cable 02 Sensor

710005819

$21.99

Clip

270000141

$11.49

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Connector Bracket

710004118

$5.40

Hex. Flange Screw M6 X 20

210262040

$2.11

External Serrated Lock Washer 6 mm

234461608

$1.15

Mount Dart

293730040

$1.04

Starter Relay

710007777

$48.49

Lock Washer Helical M6

234161601

$1.15

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

Bulb

520000758

$9.10

Male Housing, 3 Circuits

515175494

$16.18

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Battery Support

710008370

$50.99

Hexagonal Head Screw

210262050

$2.11

Rubber Bumper

293830005

$8.09

Stainless Steel Flat Washer

234062670

$2.11

Retaining Plate

710009129

$8.69

Stopper Rubber

705014429

$5.95

Hex. Flange Screw M6 X 20

207662054

$1.01
