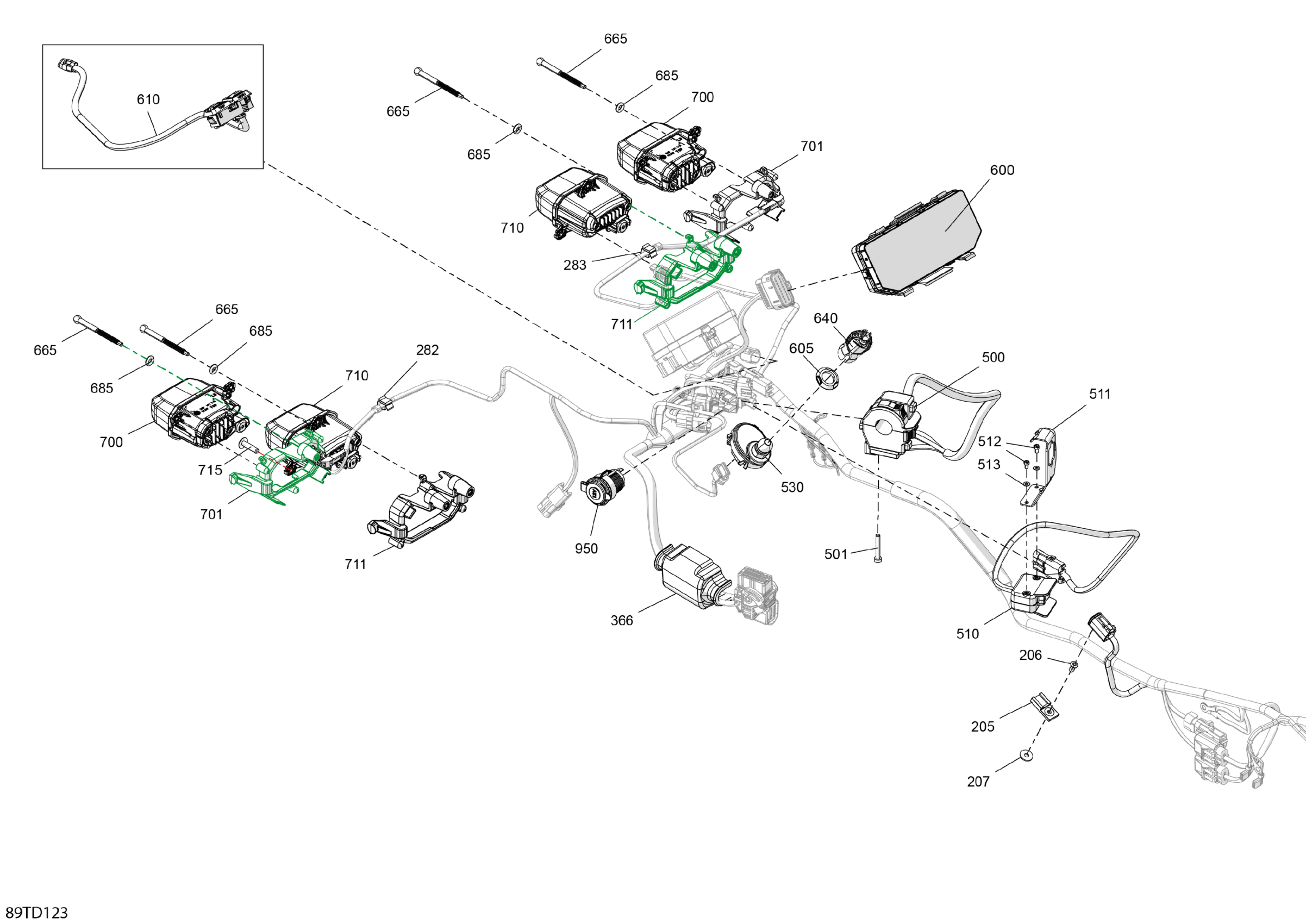

Can-Am Outlander MAX 1000R EFI 4X4 - 5WRB - Limited Package - Asphalt Grey, 2024 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

282

Clip

710010204

$1.67

283

Clip

710010204

$1.67

366

Soft Protection Sleeve

710007255

$2.54

500

Switch Handle

710006134

$71.99

501

Socket Head Screw M5 X 35

205053588

$1.90

510

Winch Switch

710007327

$13.18

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$10.99

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

513

Flat Washer 4 mm

234040600

$0.55

530

Terminal DESS One Wire

515179305

$74.99

600

Multifunction Gauge Mid

710008297

$379.99

601

Ferrite

415130224

$15.89

605

Specialized Nut

278004274

$3.28

610

Multifunction Switch

710008638

$63.49

640

Grey, Can-Am DESS Key

515179384

$63.49

665

Ajustment Screw

710005837

$6.35

685

O-Ring

293300192

$4.92

700

Low Beam Light

710008088

$139.99

701

Exterior Headlight Support

710008396

$26.99

710

HIgh Beam Light

710006910

$129.99

711

Interior Headlight Support

710008394

$9.09

715

Torx-Truss Pt K40 X 16

250000759

$2.11

950

DC Outlet

710001248

$37.99
