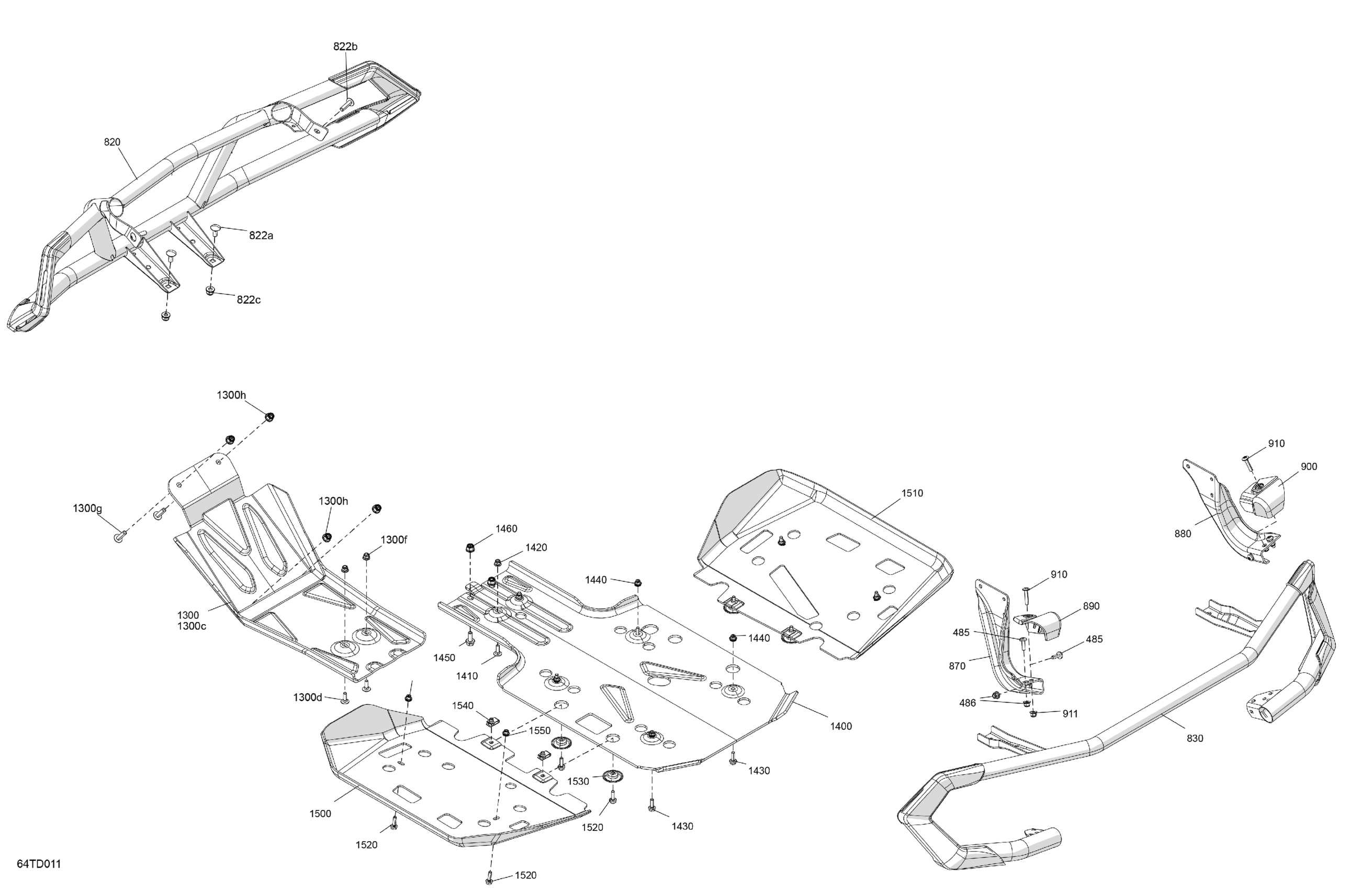

Can-Am North America - Outlander 850 EFI 4X4 - 4SRA - Hunting Edition - Wildland Camo, 2024 07- Body - Skid Plate and Bumper Diagram

Description

Price

485

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

486

Flange Elastic Nut M6

233261434

Unavailable

820

Deep Black, Bumber Kit

715004837

Unavailable

822a

Carriage Bolt, M8 X 20

207782044

Unavailable

822b

Torx Screw M8 X 30

250000886

Unavailable

822c

Hex. Flange Elastic Nut M8

233281414

Unavailable

830

Rear Bumper

715004920

Unavailable

870

LH Rear Bracket | XT

705008164

Unavailable

880

RH Rear Bracket | XT

705008165

Unavailable

890

LH Rear Bumper Trim

705017676

Unavailable

900

RH Rear Bumper Trim

705017677

Unavailable

910

Stainless, Torx Screw M6 X 30

250000842

Unavailable

911

Flange Elastic Nut M6

233261434

Unavailable

1300

Front Skid Plate | Package Hunter

715000926

Unavailable

1300b

Decal "Can-Am" | Not Shown

704904566

Unavailable

1300c

Front Skid Plate | Package Hunter

715000926

Unavailable

1300d

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

1300f

Flange Elastic Nut M6

233261434

Unavailable

1300g

Hex Torx Truss M8 X30

250000745

Unavailable

1300h

Hex. Flange Elastic Nut M8

233281414

Unavailable

1400

Central Skid Plate | Package-XXC

705204031

Unavailable

1410

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

1420

Flange Elastic Nut M6

233261434

Unavailable

1430

Hex. Flange Screw M6 X 20

207662054

Unavailable

1440

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

1450

Hex. Flange Screw M8 X 25

207682544

Unavailable

1460

Hex. Flange Elastic Nut M8

233281414

Unavailable

1500

LH Skid Plate | Package Hunter

705010659

Unavailable

1510

RH Skid Plate | Package Hunter

705010660

Unavailable

1520

Hex. Flange Screw M6 X 20

207662054

Unavailable

1530

Cup | Package Hunter

705007171

Unavailable

1540

Panel Nut M6 X 1.0

250100198

Unavailable

1550

Insert Half Hex Body M6 x 1.0

250100199

Unavailable
