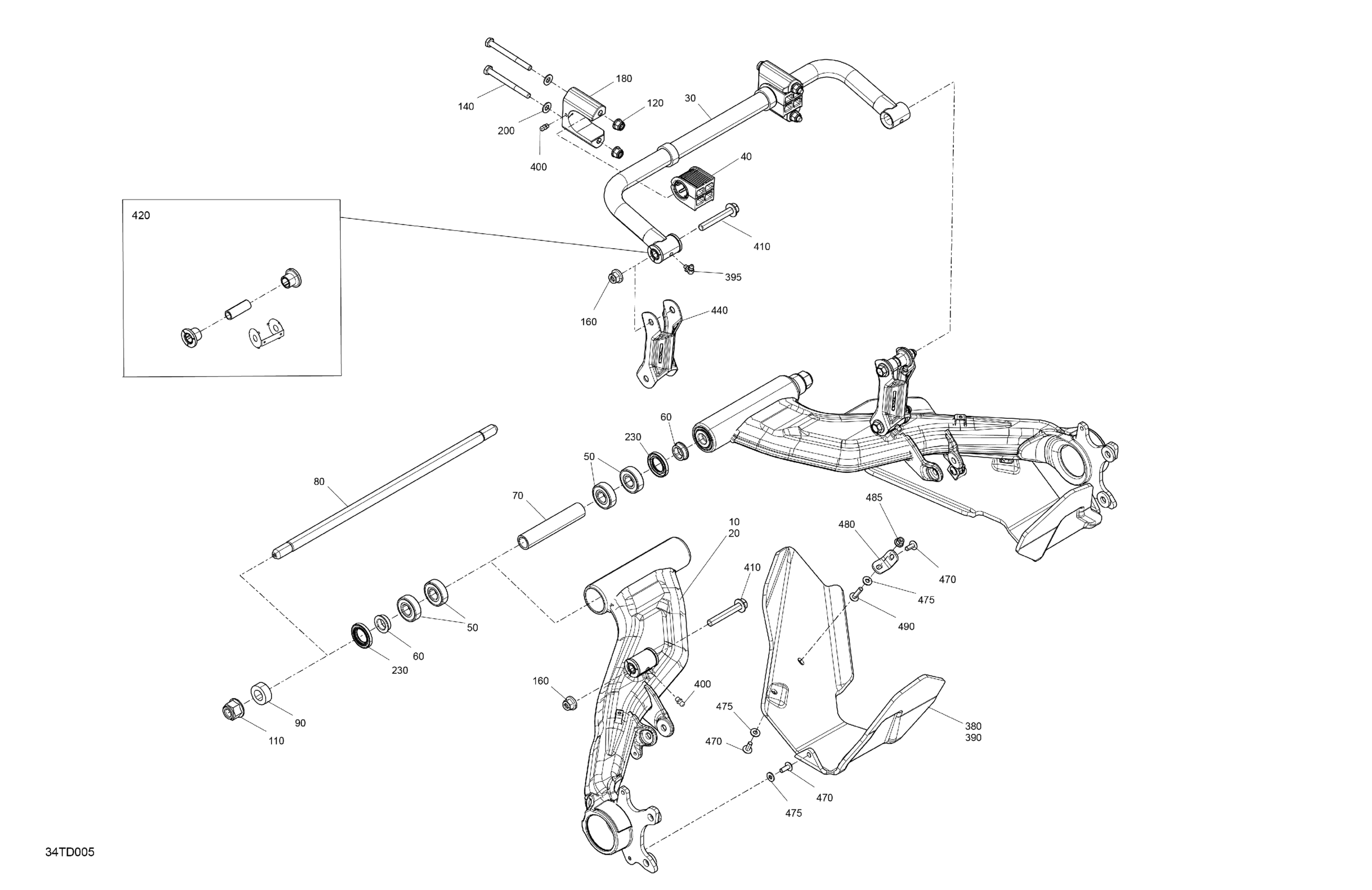

Can-Am Outlander 850 EFI 4X4 - 4SRA - Hunting Edition - Wildland Camo, 2024 Suspension - Rear Components Diagram

Description

Price

LH Swing Arm

706003041

$296.99

RH Swing Arm

706003042

$296.99

Sway Bar

706003050

$126.99

Stabilizer Bar Bushing

706004641

$11.54

Ball Bearing

293350145

$13.75

Spacer

706001282

$12.99

Spacer

706002259

$28.99

Axial Pivot M16

706001664

$72.99

Flat Washer M17

250200112

$7.99

110

Hex. Flange Elastic Nut M16

233211466

$1.99

120

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Screw M8 X 85

250001035

$1.89

160

Hex. Flange Elastic Nut M10

233201436

$2.11

180

Bushing Holder

706001099

$33.99

200

Flat Washer 8 mm

234081410

$0.83

230

Seal

293200144

$5.09

380

RH Arm Protector | Packages XXC & Hunting Edition

715004823

$159.49

390

RH Arm Protector | Packages XXC & Hunting Edition

715004823

$159.49

395

Grease Fitting 90°

293550056

$1.15

400

Grease Fitting

250000315

$5.82

410

Hex. Flange Screw M10 X 65

207606536

$4.44

420

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

440

Anchorage Stabilizer Bar

706005427

$14.49

470

Tork Screw M6 X 16

250000534

$2.11

475

Flat Washer

250200039

$0.74

480

Bended Plate | Hunting Edition

705013284

$9.91

485

Hex. Flange Elastic Nut M6

233261494

$1.58

490

Torx Screw M6 X 25

250000758

$2.11
