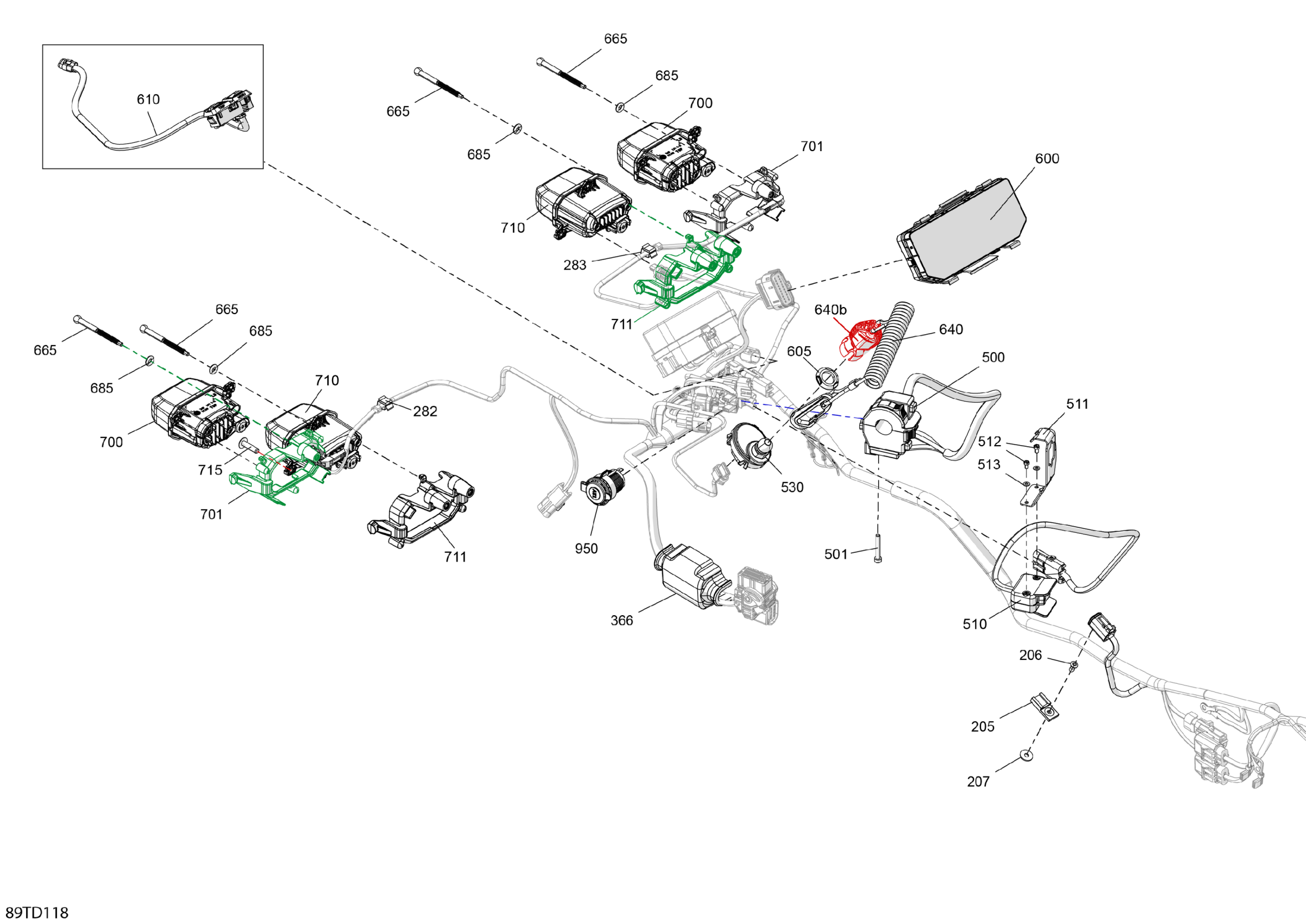

Can-Am Outlander 850 EFI 4X4 - 4KRA - X MR Package - Legion Red, 2024 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

210

ARB Connector Cap | Not Shown

710009479

$16.39

210a

Connector Sumitomo Male 2 Cavities

710008151

$7.33

210b

Cap

710000080

$6.28

282

Clip

710010204

$1.40

283

Clip

710010204

$1.40

366

Soft Protection Sleeve

710007255

$2.51

500

Switch Handle

710006134

$66.39

501

Socket Head Screw M5 X 35

205053588

$1.79

510

Winch Switch

710007327

$11.33

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.61

513

Flat Washer 4 mm

234040600

$0.52

530

Terminal DESS One Wire

515179305

$69.37

600

Multifunction Gauge Mid

710008297

$336.54

605

Specialized Nut

278004274

$3.12

610

Multifunction Switch

710008638

$58.93

640

Key Dess Can-Am Ass'y | Includes 660 to 660b

710010247

$62.66

640b

Grey, Can-Am DESS Key

515179384

$53.70

665

Ajustment Screw

710005837

$5.90

685

O-Ring

293300192

$3.81

700

Low Beam Light

710008088

$152.21

701

Exterior Headlight Support

710008396

$23.85

710

HIgh Beam Light

710006910

$152.21

711

Interior Headlight Support

710008394

$8.15

715

Torx-Truss Pt K40 X 16

250000759

$2.00

950

DC Outlet

710001248

$35.79
