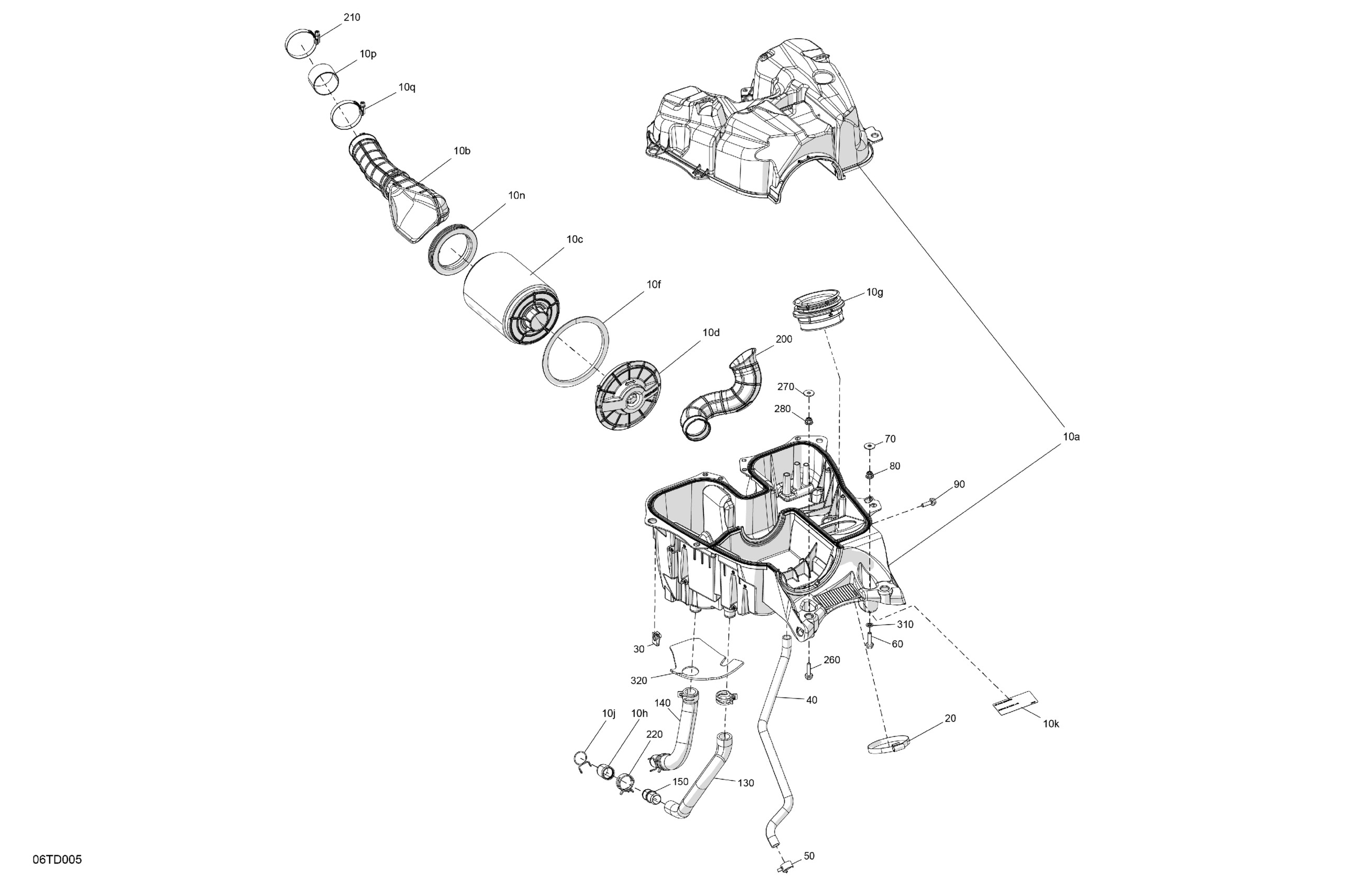

Can-Am Outlander 850 EFI 4X4 - 4KRA - X MR Package - Legion Red, 2024 Engine - Air Intake Diagram

Description

Price

10a

Air Box

707800724

$87.66

10b

Air Intake Hose

707800501

$55.35

10c

Air Filter

707800371

$37.66

10d

Intake Silencer Cap Ass'y

715002174

$15.22

10f

Gasket

293300175

$13.83

10g

Intake Adaptor

707800804

$16.89

10h

Drain Tube

707800080

$7.37

10j

Spring Clamp

707801043

$12.91

10k

Air Filter Maintenance Decal

707800373

Unavailable

10n

Air Filter Adaptor

707800470

$18.43

10p

Ring

707800504

$50.74

10q

Norma Clamp

293650077

$6.11

Norma Clamp

293650091

$4.60

Panel Nut M6 X 1.0

250100198

$1.73

Vent Hose

707800453

$27.66

Norma Clamp

293650110

$4.38

Hex. Flange Screw M6 X 25

207662544

$0.53

Flat Washer

250200082

$0.35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 20

207662044

$1.66

130

Formed Hose

707800671

$41.51

140

Formed Hose

707800672

$36.89

150

Straight Fitting

270001073

$9.00

200

Air Intake Front

707800528

$36.89

210

Norma Gear Clamp

293650090

$4.38

220

Norma Spring Clamp

293650109

$4.00

260

Hex. Flange Screw M6 X 25

207662544

$0.53

270

Flat Washer

250200082

$0.35

280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

310

Push Nut

732610072

$1.72

320

Heat Shield

707002106

$8.46
