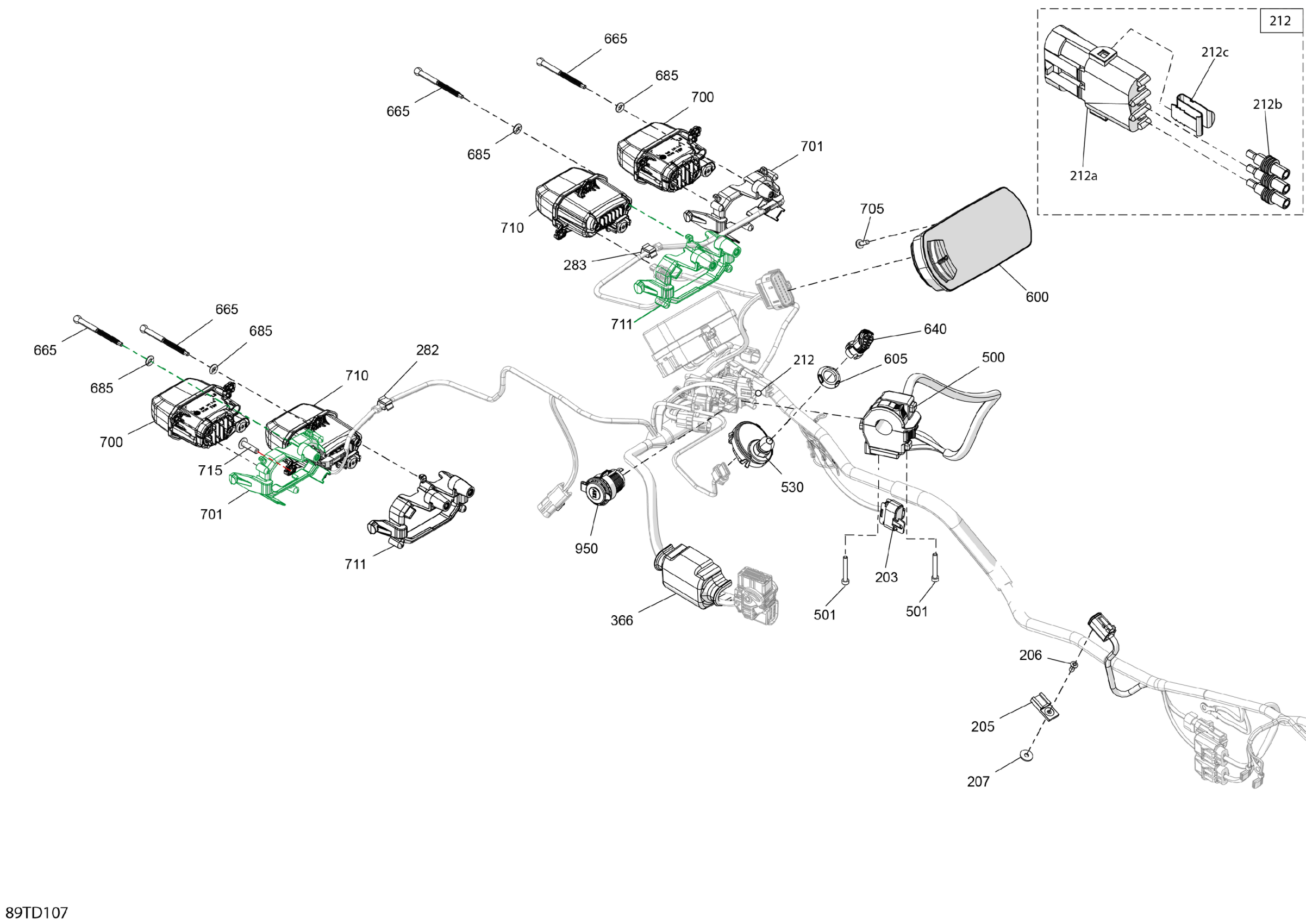

Can-Am North America - Outlander 850 EFI 4X4 - 2HRB - STD Package - Viper Red, 2024 08- Electric - Front Section Diagram
#
Description
Price
203
DPS Connector Cap | Not Shown
710005760
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
210
ARB Connector Cap | Not Shown
710009479
Unavailable
210a
Connector Sumitomo Male 2 Cavities
710008151
Unavailable
210b
Cap
710000080
Unavailable
212
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
212a
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
212b
Wire Seal
278000216
Unavailable
212c
Clip
710000992
Unavailable
282
Clip
710010204
Unavailable
283
Clip
710010204
Unavailable
366
Soft Protection Sleeve
710007255
Unavailable
500
Switch Handle
710006134
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Terminal DESS One Wire
515179305
Unavailable
600
Multifunction Compact Gauge
710008298
Unavailable
601
Ferrite
415130224
Unavailable
605
Specialized Nut
278004274
Unavailable
640
Grey, Can-Am DESS Key
515179384
Unavailable
665
Ajustment Screw
710005837
Unavailable
685
O-Ring
293300192
Unavailable
700
Low Beam Light
710008088
Unavailable
701
Exterior Headlight Support
710008396
Unavailable
705
Torx Screw K50 X 16
250000720
Unavailable
710
HIgh Beam Light
710006910
Unavailable
711
Interior Headlight Support
710008394
Unavailable
715
Torx-Truss Pt K40 X 16
250000759
Unavailable
950
DC Outlet
710001248
Unavailable
