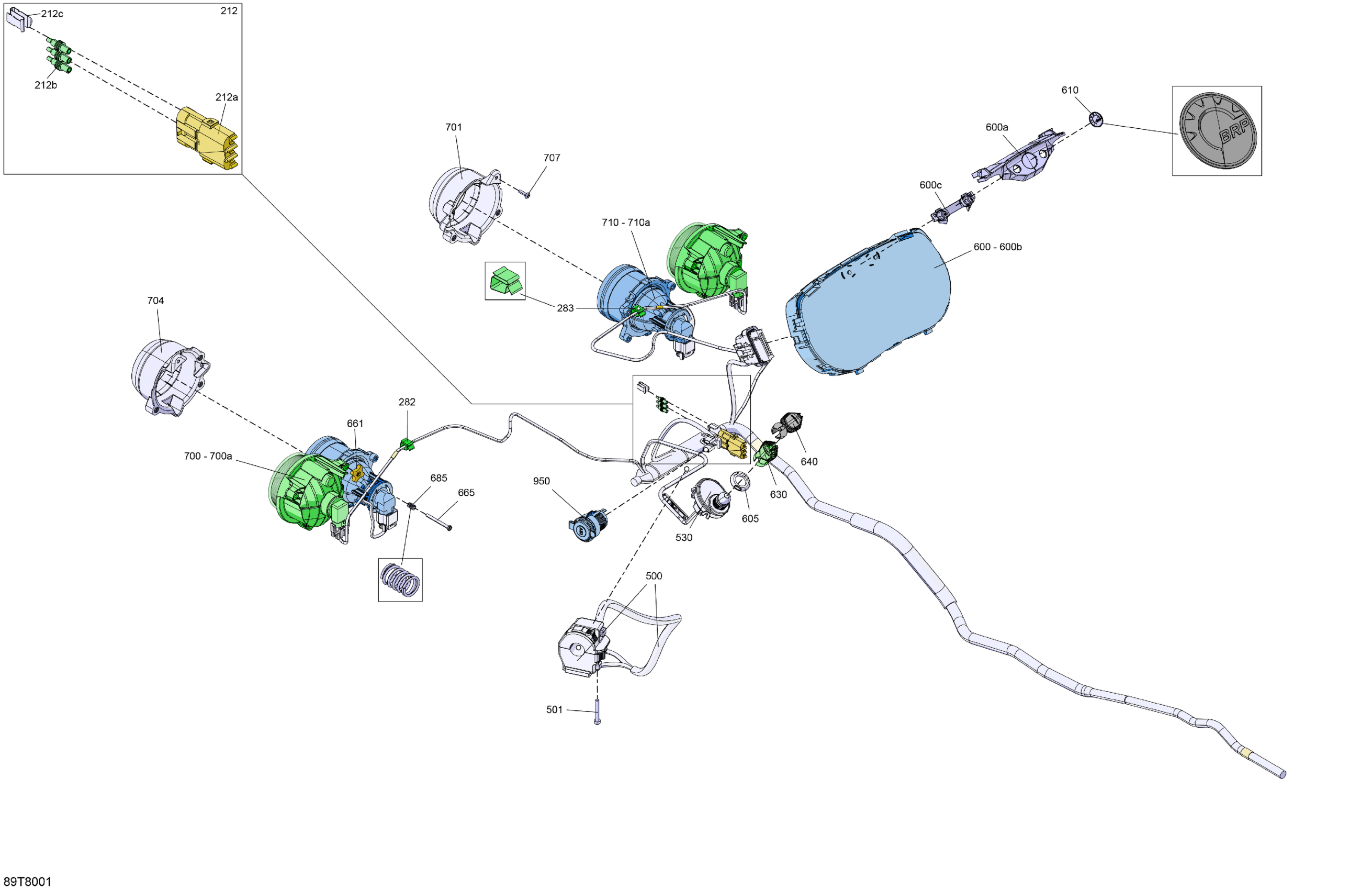

Can-Am OUTLANDER - 4X4 - XXC - 1000R - 1XJA - Sunburst Yellow, 2018 Electric - Front Section Diagram

Description

Price

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

282

Clip

414227300

$1.45

283

Clip

414227300

$1.45

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$78.43

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Speedometer | Includes 600 to 600c

710005632

$415.35

600a

Cap Support | XTP

705004366

$12.31

600b

Lens | XTP

415129349

$23.05

600c

Speedometer Button | XTP

415129355

$13.94

605

Safety Nut (DESS Switch)

278002963

$2.72

610

BRP Logo13 mm

704904615

$9.66

630

Green Key RFID | Except Model Europe, Except T3

710005232

$55.35

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

661

Handle

572106600

$9.31

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.91

700

Low Beam | Includes 54 to 55

710006177

$113.99

700a

Bulb 12V 55W

715900141

$39.42

701

RH High Front Housing

710002291

$27.54

704

LH High Front Housing

710002292

$21.37

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$113.99

710a

Halogen Bulb

415129249

$39.97

950

DC Outlet

710001248

$31.17
