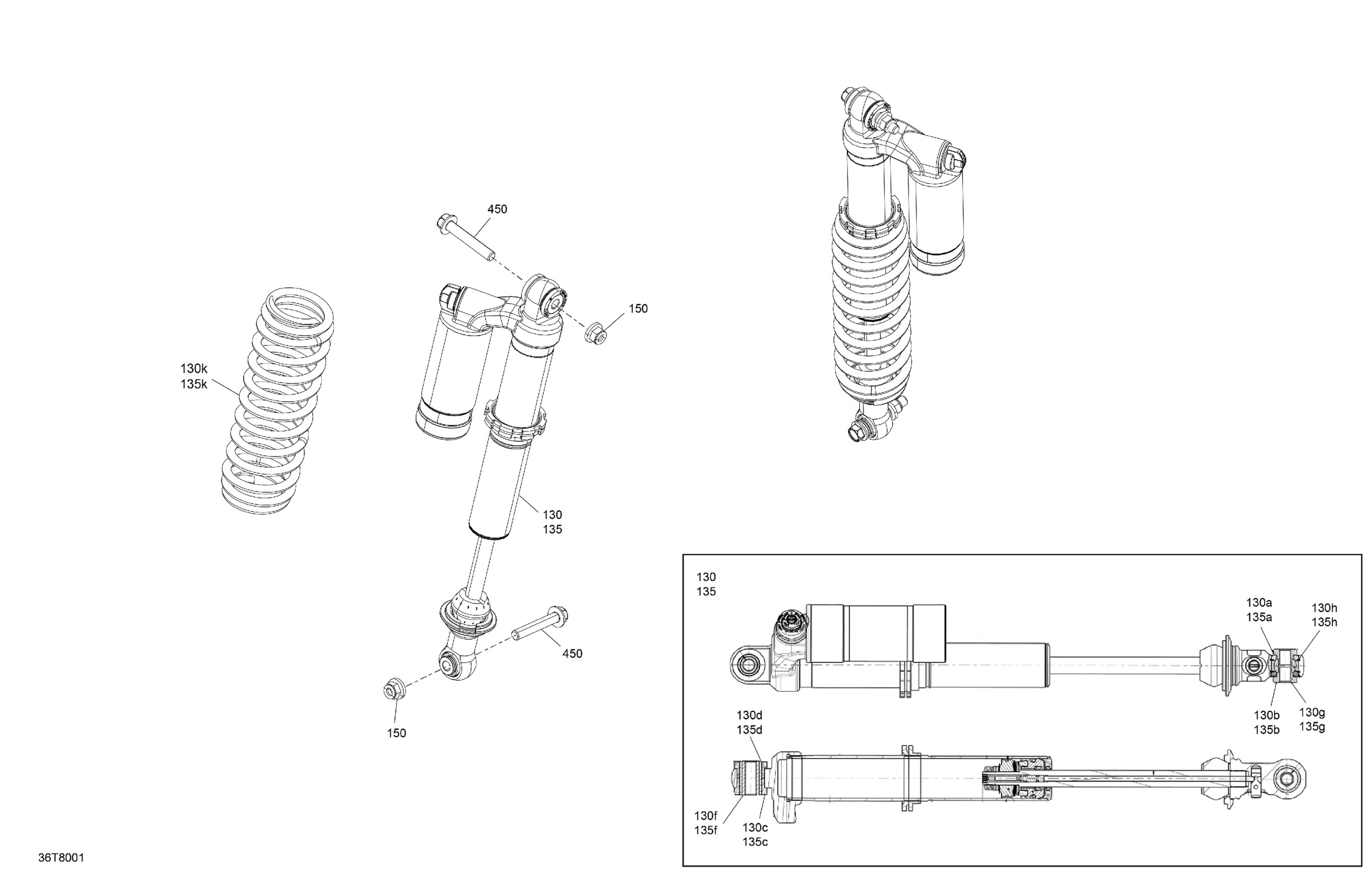

Can-Am OUTLANDER - 4X4 - XXC - 1000R - 1XJA - Sunburst Yellow, 2018 Suspension - Rear Shocks Diagram

Description

Price

130

Rear Shock | Model-XTP, Includes 91a to 91b

706001572

$709.99

130a

O-Ring Bushing

715900209

$13.52

130b

Interior Bushing | XTP

715900210

$14.75

130c

Bushing | XTP

706201648

$13.83

130d

Bushing Sleeve | XTP

706201585

$27.66

130f

Bushing Sleeve | XTP

706201586

$27.66

130g

Spherical Bearing

715900251

$76.12

130h

Retaining Ring

715900252

$10.98

130k

Spring Yellow Sunburst

706002808

$96.89

135

Rear Shock | Model-XTP, Includes 91a to 91b

706001572

$709.99

135a

O-Ring Bushing

715900209

$13.52

135b

Interior Bushing | XTP

715900210

$14.75

135c

Bushing | XTP

706201648

$13.83

135d

Bushing Sleeve | XTP

706201585

$27.66

135f

Bushing Sleeve | XTP

706201586

$27.66

135g

Spherical Bearing

715900251

$76.12

135h

Retaining Ring

715900252

$10.98

135k

Spring Yellow Sunburst

706002808

$96.89

150

Hex. Flange Elastic Nut M10

233201436

$1.74

450

Hex. Flange Screw M10 X 6

207606046

$3.38
