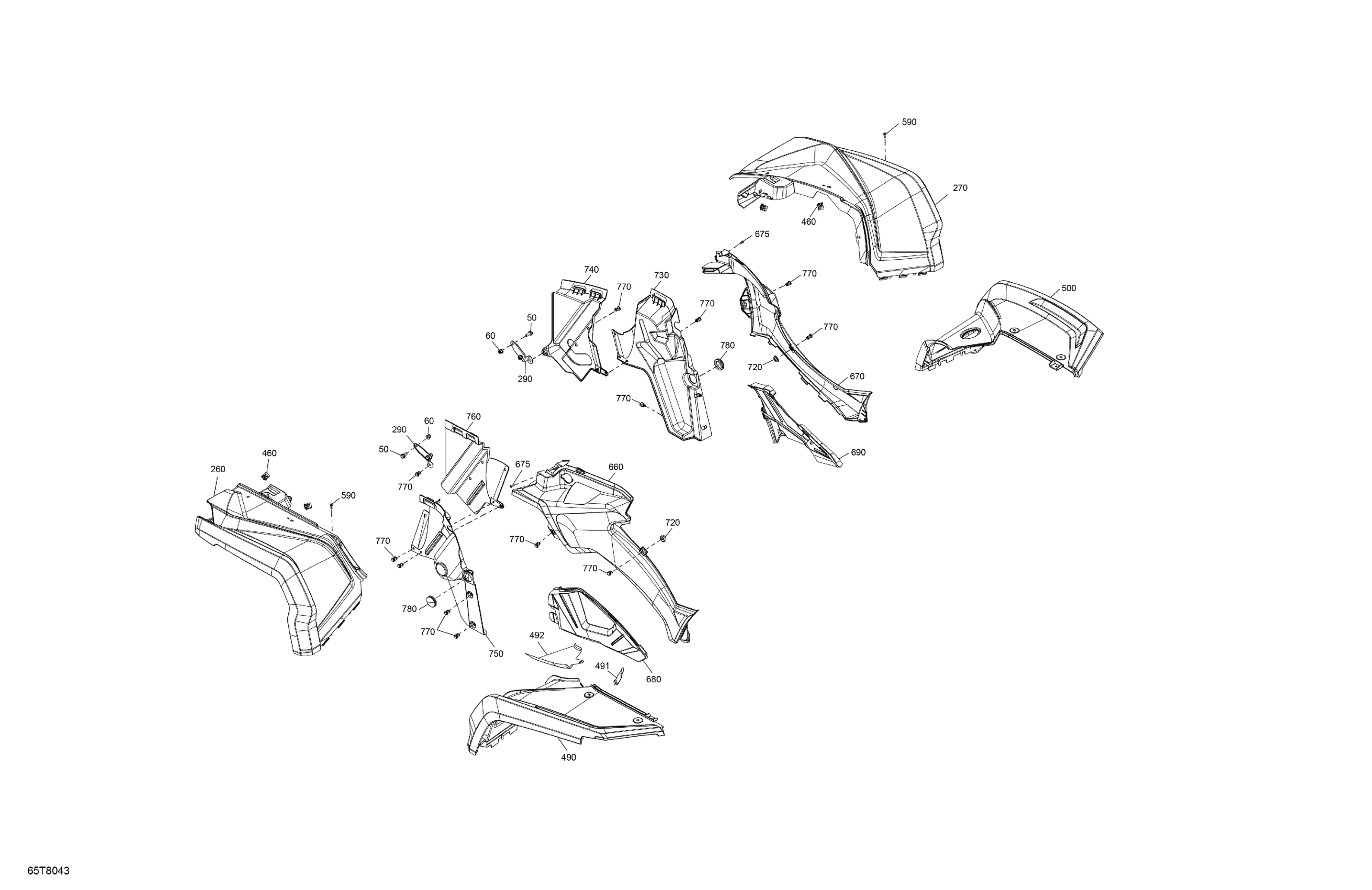

Can-Am OUTLANDER - 4X4 - XTP - 850 EFI - 5RJB - Timeless Black Metallic - CALI, 2018 Body - Fender Kit Diagram

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Elastic Nut M8

233281434

$1.74

Black, LH Front Fender Kit | Max XTP North America

715004016

$368.63

Timeless Black, RH Front Fender Kit | Max XTP North America

715004018

$368.63

Lower Fender Support

705004565

$6.19

Edge Clip

517302785

$0.70

Black, LH Rear Fender Kit | Max XTP North America

715004020

$368.63

Heat Shield | Package XTP, XMR

707002104

$8.66

Heat Shield | Package XTP, XMR

707002105

$8.66

Black, RH Rear Fender Kit | Package XTP North America

715004022

$368.63

Torx Screw M6 X 20

250000722

$1.34

Black, LH Lateral Panel

705012116

$246.24

Black, RH Lateral Panel

705012117

$246.24

Phillips Screw K40 X 16

250000723

$0.81

Deflector Body Panel Kit

715007294

$49.97

Engine Cover

705003444

$18.63

Grommet

705003264

$3.43

RH Rear Inner Fender

705011462

$19.37

RH Front Inner Fender

705011463

$14.13

LH Rear Inner Fender

705013111

$19.37

LH Front Wheel Arch Protector

705017001

$14.13

Tuflok Plastic Rivet

293150230

$1.21

Rubber Cover

293250242

$5.18
