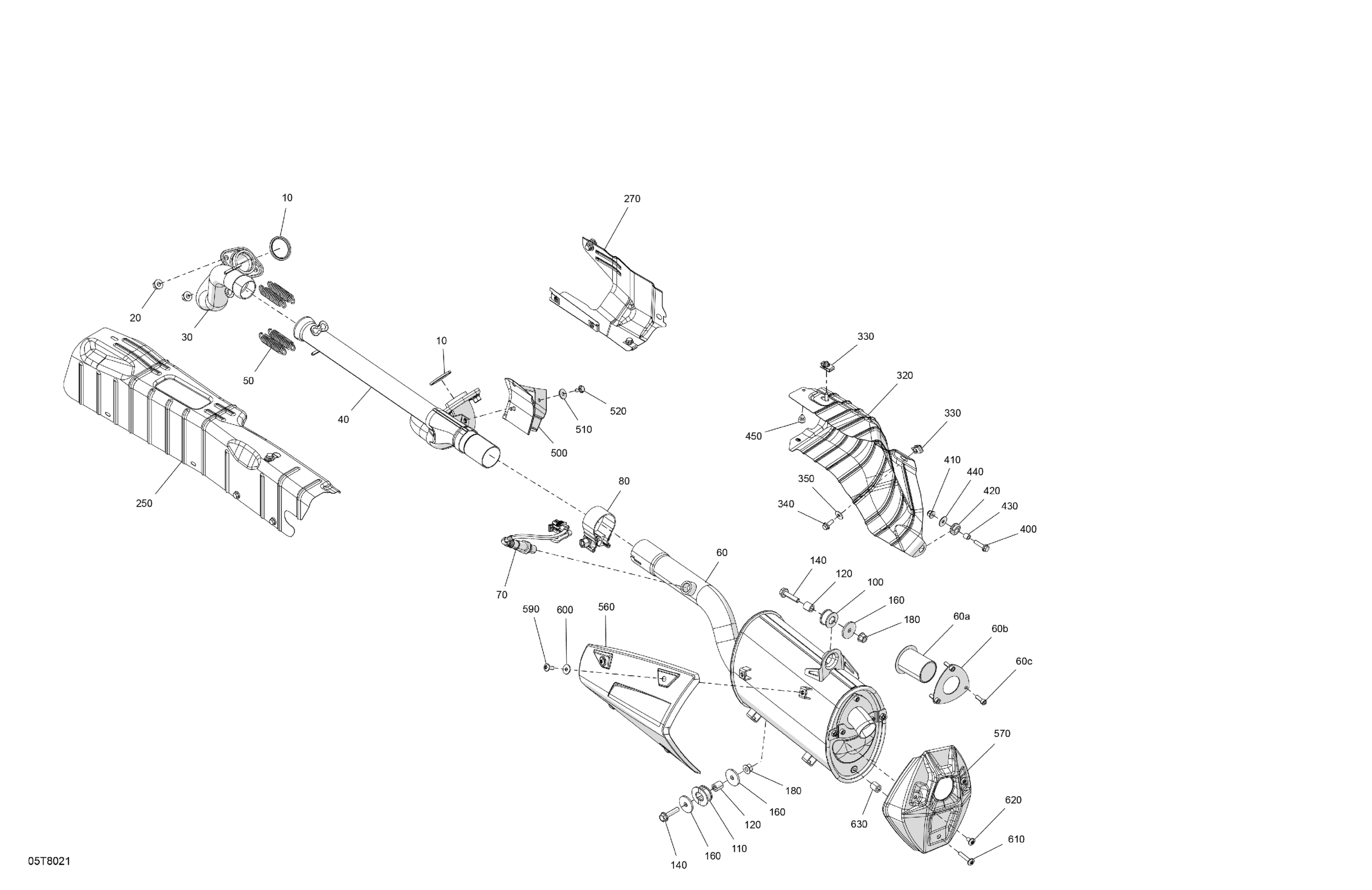

Can-Am OUTLANDER - 4X4 - XTP - 1000R - 5XJC - Timeless Black Metallic - CALI, 2018 Engine - Exhaust Diagram

Description

Price

Gasket

707600317

$10.52

Hex. Flange Nut M8

233081416

$1.63

Front Head Pipe

707600627

$138.43

Rear Head Pipe

707601455

$203.05

Spring

415107100

$6.20

Exhaust Muffler | Includes 60 to 60f

707602183

$535.35

60a

Spark Arrestor

707601803

$47.49

60b

Gasket

707601799

$4.62

60c

Socket Head Screw M6 X 20

205062060

$1.92

60d

Muffler End Piece

715900143

$36.89

60f

Support

715900147

$3.85

Oxygen Sensor

707600872

$115.67

Exhaust Pipe Clamp

293650228

$11.87

100

Vibration Damper

707603323

$11.07

110

Rubber

707600448

$7.60

120

Spacer Bushing

293900116

$3.08

140

Hex. Flange Screw M8 X 35

207683544

$1.39

160

Flat Washer M8

250200158

$1.74

180

Hex. Flange Nut M8

233081416

$1.63

250

Heat Shield

707603724

$12.68

270

Protector

707601484

$12.07

320

Protector

707601425

$18.43

330

Panel Nut M6 X 1.0

250100198

$1.73

340

Hex. Flange Screw M6 X 16

207661644

$0.61

350

Flat Washer 6 mm

234062410

$0.64

400

Hex. Flange Screw M6 X 25

207662534

$1.74

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Overmolded Grommet

293720130

$4.38

430

Bushing

293900105

$6.26

440

Flat Washer

224060201

$1.15

450

Rubber Bumper

293830005

$5.33

500

Pipe Protector

707600932

$14.37

510

Flat Washer

250200082

$0.35

520

Hex. Flange Screw M6 X 12

250000574

$2.06

560

Heat Deflector

707600710

$41.51

570

Heat Shield End Cap

707601255

$46.12

590

Torx Head Screw M6 X 16

250000717

$1.74

600

Stainless Steel Flat Washer

234062670

$1.74

610

Torx Screw M6 X 35

250000541

$1.74

620

Torx Truss Screw M6 X 12

250000767

$1.66

630

Bushing

293900106

$4.42
