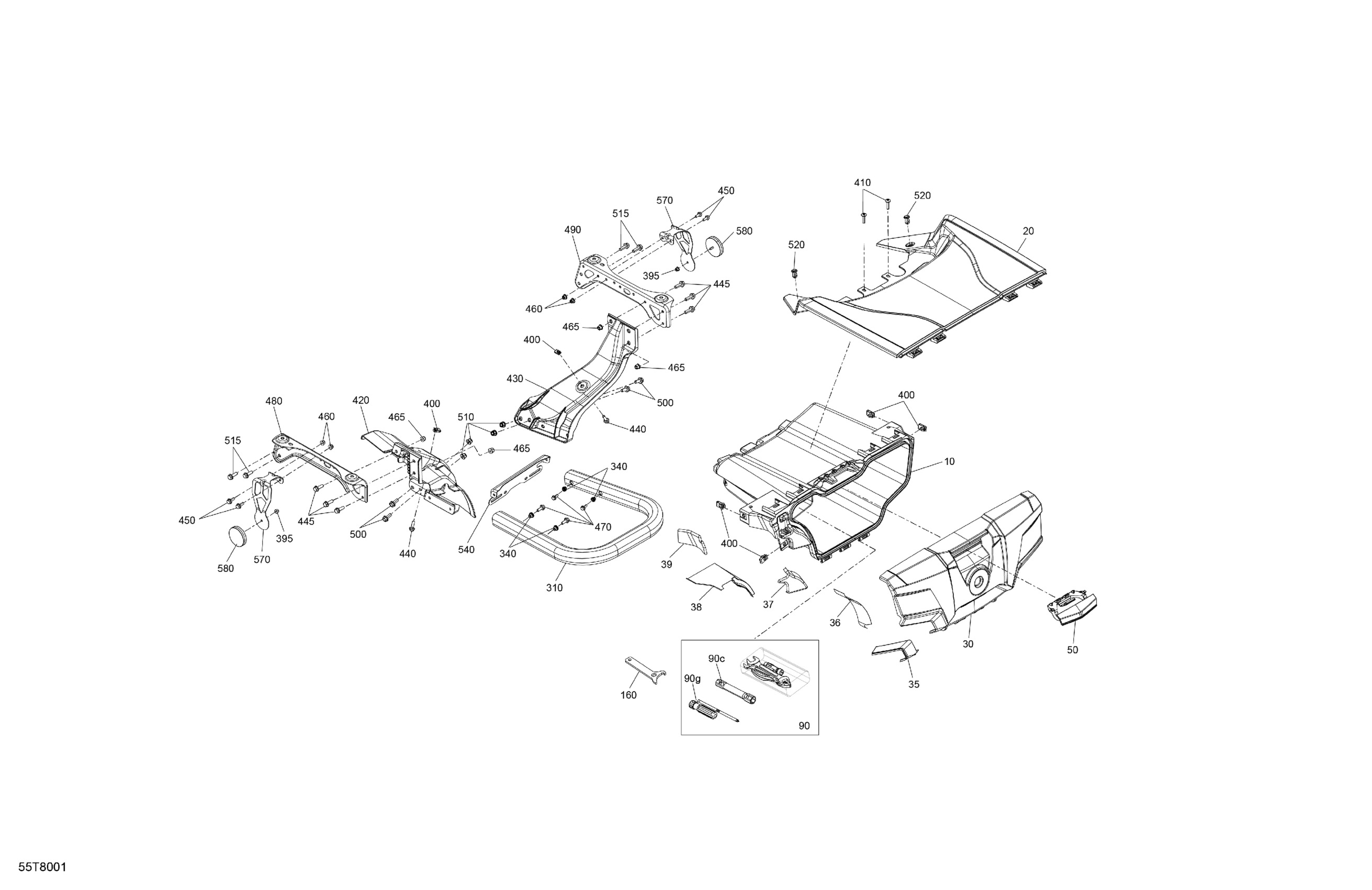

Can-Am OUTLANDER - 4X4 - XT - 850 EFI - 2JJF - Intense Red Satin - CALI, 2018 Body - Rear Storage Tray Diagram

Description

Price

Rear Storage Box

708300674

$87.66

Rear Storage Box Cover

708301212

$49.39

Rear Panel

708300150

$36.89

Heat Shield

707002102

$9.23

Heat Shield

707002294

$9.29

Heat Shield

707002295

$9.29

Heat Shield

707002296

$9.29

Heat Shield

707002297

$9.29

Handle Latch

708201250

$11.54

Tool Kit

704700168

$44.99

90c

Socket Wrench 14/16MM

529000085

$6.99

90g

Screw Driver

529000021

$3.99

160

Adjustment Wrench

529000035

$2.19

310

Rear Bumper Ass'y

715001564

$55.35

340

Insert Half Hex Body M6 x 1.0

250100199

$2.54

395

Hex. Flange Elastic Nut M5

233251414

$1.66

400

Panel Nut M6 X 1.0

250100198

$1.73

410

Torx Truss Screw M6 X 25

250000807

$1.74

420

LH Cargo Support

705006997

$51.51

430

RH Cargo Support

705006998

$51.51

440

Hex. Flange Screw M6 X 20

207662044

$1.66

445

Hex. Flange Screw M6 X 25

207662544

$0.53

450

Hex. Flange Screw M6 X 16

207661644

$0.61

460

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

465

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

470

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

480

LH Support

705004563

$28.43

490

RH Support

705004564

$28.43

500

Hex. Flange Screw M8 X 20

207682044

$0.92

510

Hex. Flange Elastic Nut M8

233281414

$1.14

515

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

520

Tuflok Plastic Rivet

293150230

$1.21

540

Plate Support

705004806

$14.75

570

Reflector Support | Except Europe

705202576

$7.11

580

Red Reflector

705011221

$12.32
