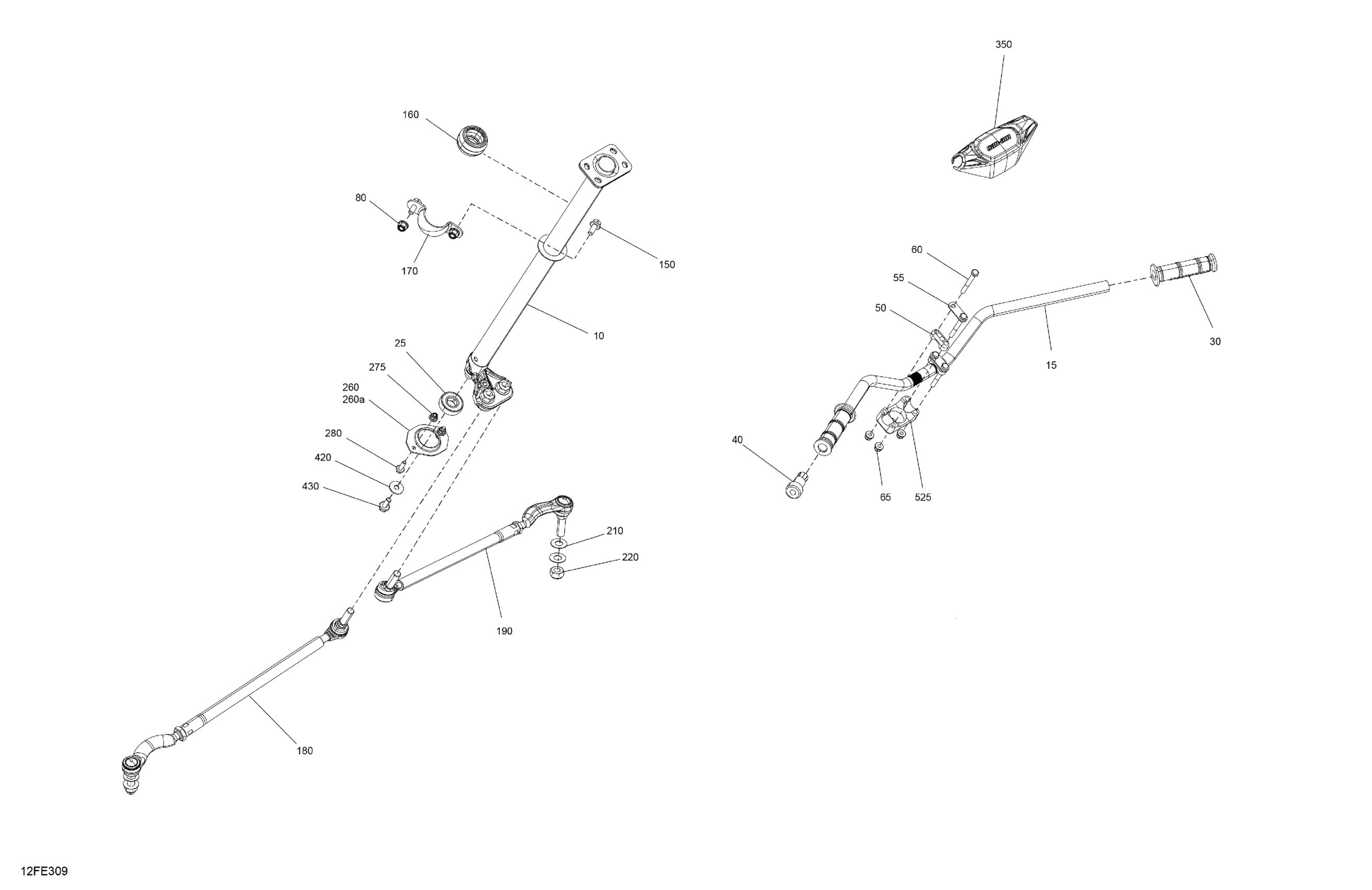

Can-Am OUTLANDER - 4X4 - STD - 850 - 4ASB - Legion Red - 2025 Mechanic - Steering Diagram

Description

Price

Steering Column

709402740

$103.70

Handlebar

709402985

$28.33

Ball Bearing

709402499

$16.39

Handle Grip

709400493

$13.82

End Piece

709400449

$7.57

Steering Support

709401799

$20.12

Stiffner

709400509

$4.30

Hex. Screw M8 X 70

207087044

$1.99

Hex. Elastic Flange Nut M8

233281416

$1.43

Hex. Elastic Flange Nut M8

233281416

$1.43

150

Hex. Flange Screw M8 X 20

207682044

$1.06

160

Spherical Bushing

709402169

$5.96

170

Upper Column Attachment

709400827

$0.97

180

LH Tie Rod Ass'y

709402737

$58.18

190

RH Tie Rod Ass'y

709402738

$58.18

210

Hardened Washer

706200281

$2.69

220

Hex. Elastic Hex. Nut M12

250100089

$0.45

260

Lower Bearing Support | Includes 260 to 260a

709402360

$9.91

260a

Lower Bearing Support

709402713

$39.52

275

Hex. Flange Elastic Nut M6

233261466

$1.91

280

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

350

Handlebar Trim

709402570

$21.61

420

Flat Washer 8 mm

234082410

$1.27

430

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

525

Handlebar Riser Block

709402987

$20.12
