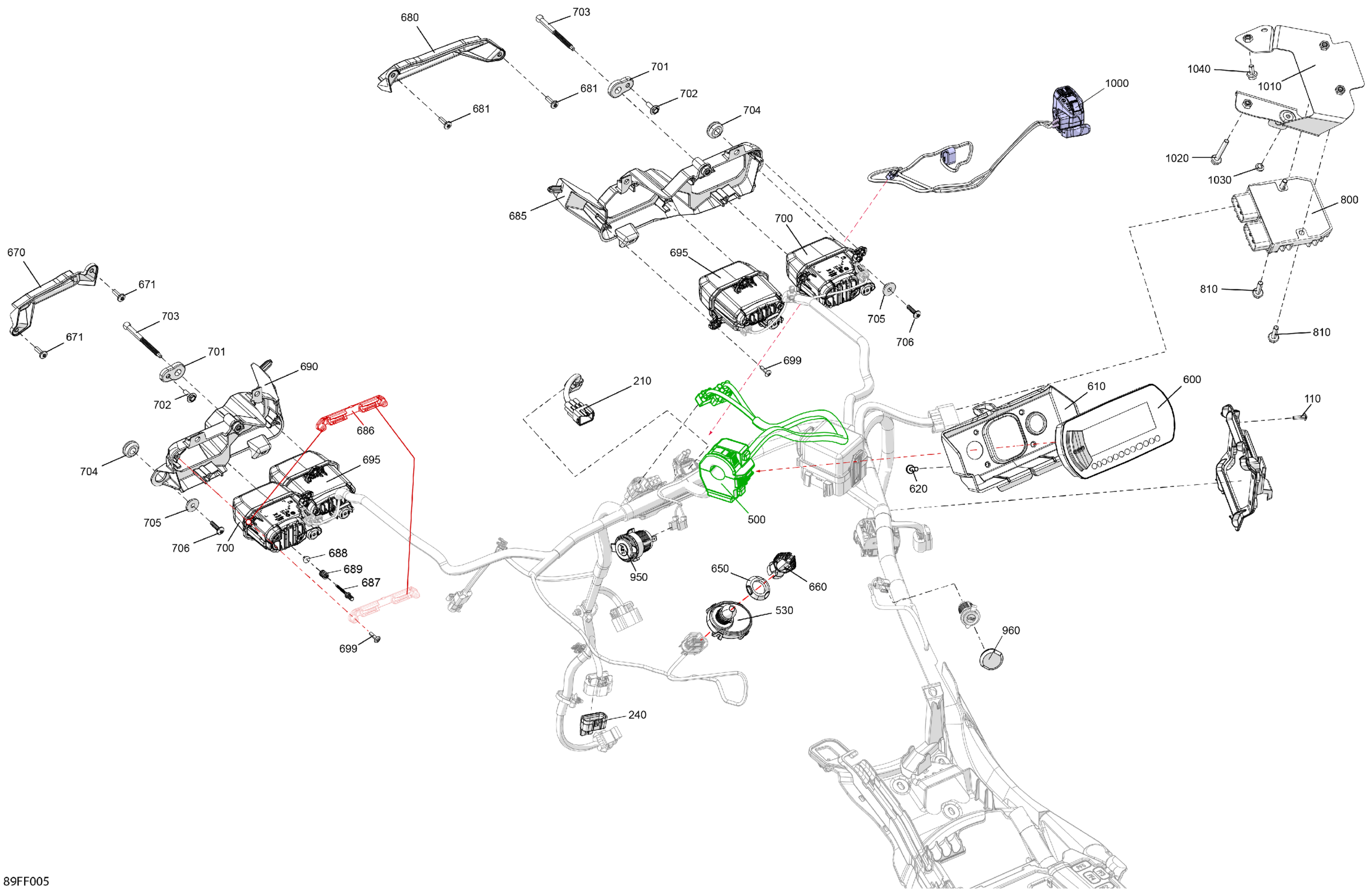

Can-Am OUTLANDER - 4X4 - STD - 700 - 1CTD - CALI - Legion Red - 2026 Electric - Front Section Diagram

Torx-Truss Pt K40 X 16

250000759

$2.11

Switch Wiring Harness

710009366

$40.99

DPS Connector Cap | Not Shown

710005760

$16.86

LH Front Switch Housing | CARB Vehicle

710006944

$289.99

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

Multifunction Compact Gauge

710008298

$389.99

Int Gauge Support

710007694

$6.09

Torx Screw K50 X 16

250000720

$1.69

Specialized Nut

278004274

$3.28

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

LH Cap

705015024

$11.99

Torx Screw K50 X 16

250000720

$1.69

RH Cap

705015025

$11.05

Torx Screw K50 X 16

250000720

$1.69

RH Front Headlight Support

710009678

$47.99

Support Pivot | Not Shown

517309049

$2.79

Threaded Rod | Not Shown

517309133

$7.55

Specialized Nut | Not Shown

517309134

$1.01

Compression Spring | Not Shown

517309058

$7.41

LH Front Headlight Support

710009677

$44.99

HIgh Beam Light

710006910

$129.99

Torx-Truss Pt K40 X 16

250000759

$2.11

Low Beam Light

710008088

$139.99

Ball Socket

293900157

$9.59

Screw PT Type K-50 X 16

250000959

$2.11

Ajustment Screw

710005837

$6.35

Grommet

705003264

$4.09

Shoulder Bushing

710004749

$2.69

Torx Screw K50 X 16

250000720

$1.69

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Hex. Flange Screw M6 X 25

207562544

$1.69

DC Outlet

710001248

$37.99

Rubber Plug

710002858

$2.85

Accelerator Hand Lever

710010583

$309.99

Voltage Regulator Support

710009942

$17.49

Hex. Flange Screw M6 X 40

207664044

$2.22

Rubber Stopper

293830229

$8.79

Hex. Flange Screw M6 X 12

207661244

$2.11
