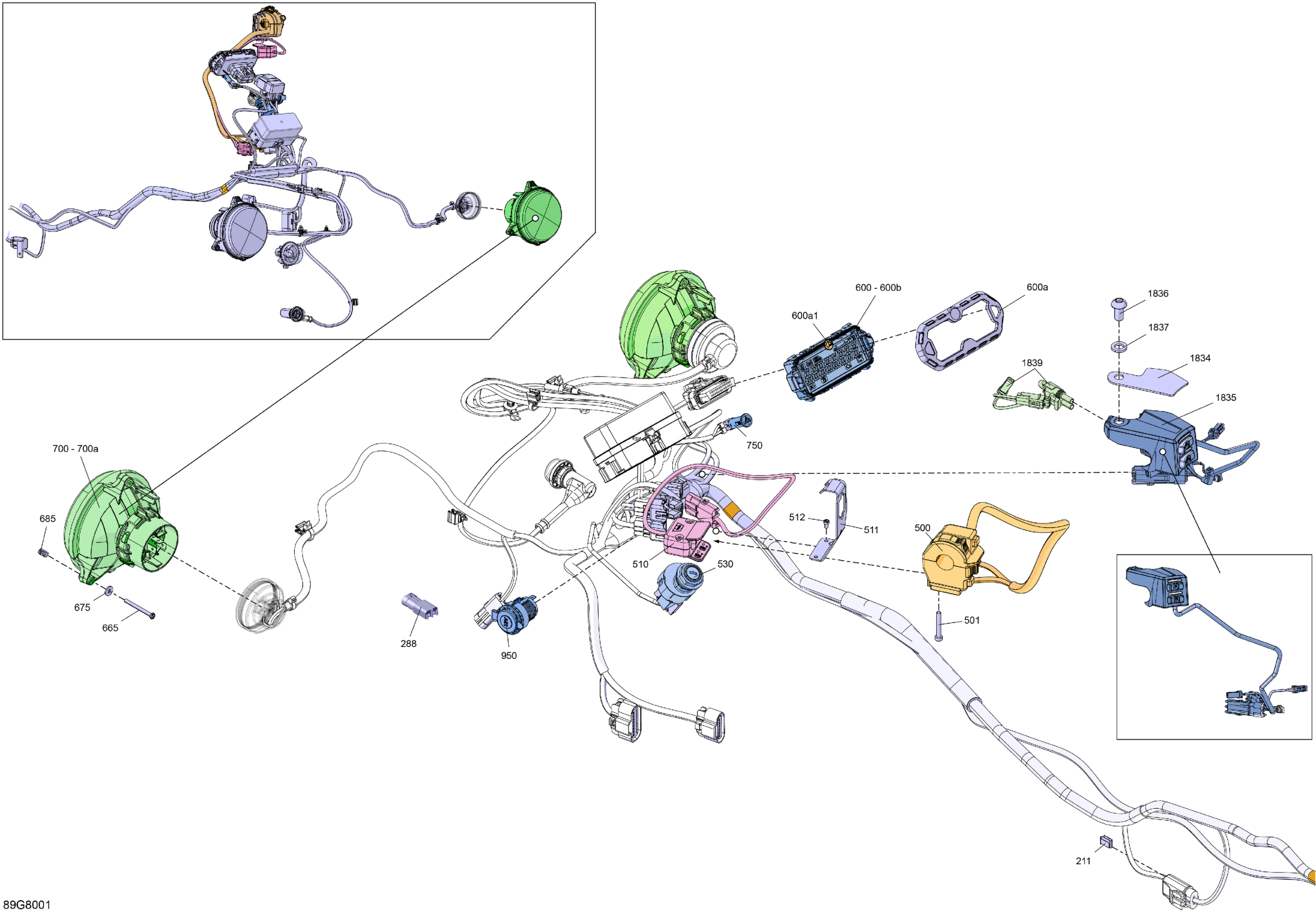

Can-Am OUTLANDER - 4X4 - Mossy Oak Hunting Edition - 570 EFI - 3ZJC - Break Up Country - CALI, 2018 Electric - Front Section Diagram

Description

Price

211

Clip

710000992

$3.88

288

Connector Ass'y

710001642

$8.42

500

Multi-Function Handle | Except Model Europe, Except T3

710005072

$58.93

501

Socket Head Screw M5 X 35

205053588

$1.79

510

Winch Switch

710005241

$153.70

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.61

530

Ignition Switch | Except Model Pro, T3

710007864

$79.82

600

Speedometer | Includes 600 to 600b

710005553

$305.19

600a

Trim Ring Ass'y

710001183

$17.88

600a1

BRP Logo 13 MM

516010651

$11.09

600b

Button

715900265

$11.81

665

Hex. Screw K40 X 45

250000718

$2.00

675

Flat Washer

517225900

$0.16

685

Spring

517168600

$6.70

700

Low Beam

710003900

$101.46

700a

Bulb, 12V 35/35W

710000871

$32.06

750

Pilot Lamp Cap

710003910

$3.33

950

DC Outlet

710001248

$35.79

1834

Top Plate

715004008

$19.37

1835

Multifonction Housing Ass'y

710004990

$138.78

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

1837

Washer

503192496

$0.73

1839

Cable

710004567

$12.60
