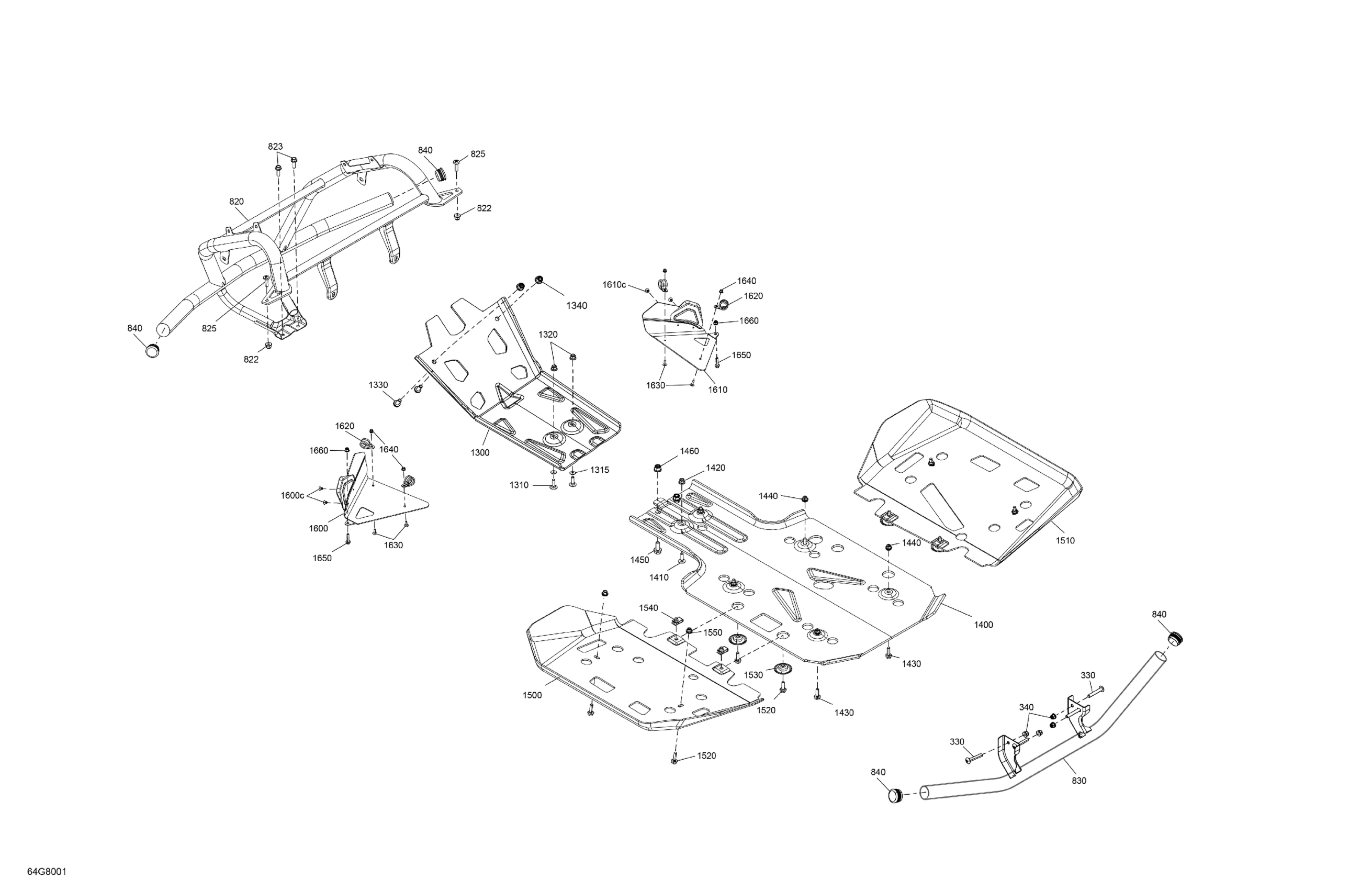

Can-Am OUTLANDER - 4X4 - Mossy Oak Hunting Edition - 570 EFI - 3ZJC - Break Up Country - CALI, 2018 Body - Skid Plate and Bumper Diagram

Description

Price

330

Torx Truss Screw M8 X 50

250000761

$7.09

340

Elastic Flange Nut M8

233281464

$0.96

820

Front Bumper kit | Model XT, Hunter

715001910

$167.13

822

Elastic Flange Nut M8

233281464

$0.96

823

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

825

Pan Torx Screw M8 X 25

250000898

$2.00

830

Rear Bumper kit | Package Hunter

715001911

$132.06

840

Cap

705202455

$4.27

1300

Front Skid Plate | Package Hunter

705205019

$165.64

1310

Torx Screw M6 X 20

250000712

$2.00

1315

Stainless Steel Flat Washer

234062670

$2.00

1320

Flange Elastic Nut M6

233261434

$4.15

1330

Hex. Screw M8 X 20

236282054

$1.40

1340

Hex. Flange Elastic Nut M8

233281434

$2.00

1400

Central Skid Plate | Package-XXC

705204031

$159.67

1410

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

1420

Flange Elastic Nut M6

233261434

$4.15

1430

Hex. Flange Screw M6 X 20

207662054

$0.96

1440

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1450

Hex. Flange Screw M8 X 25

207682544

$1.03

1460

Hex. Flange Elastic Nut M8

233281434

$2.00

1500

LH Skid Plate | Package Hunter

705010659

$109.67

1510

RH Skid Plate | Package Hunter

705010660

$109.67

1520

Hex. Flange Screw M6 X 20

207662054

$0.96

1530

Cup | Package Hunter

705007171

$6.00

1540

Panel Nut M6 X 1.0

250100198

$1.99

1550

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1600

A Arm Protector Kit | Includes 1600 to 1600c

715001667

$165.99

1600c

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1610

A Arm Protector Kit | Includes 1600 to 1600c

715001667

$165.99

1610c

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1620

Hose Anchor

709200036

$10.51

1630

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

1640

Flange Elastic Nut M6

233261434

$4.15

1650

Hex. Flange Screw M8 X 35

207683534

$2.00

1660

Hex. Flange Elastic Nut M8

233281434

$2.00
