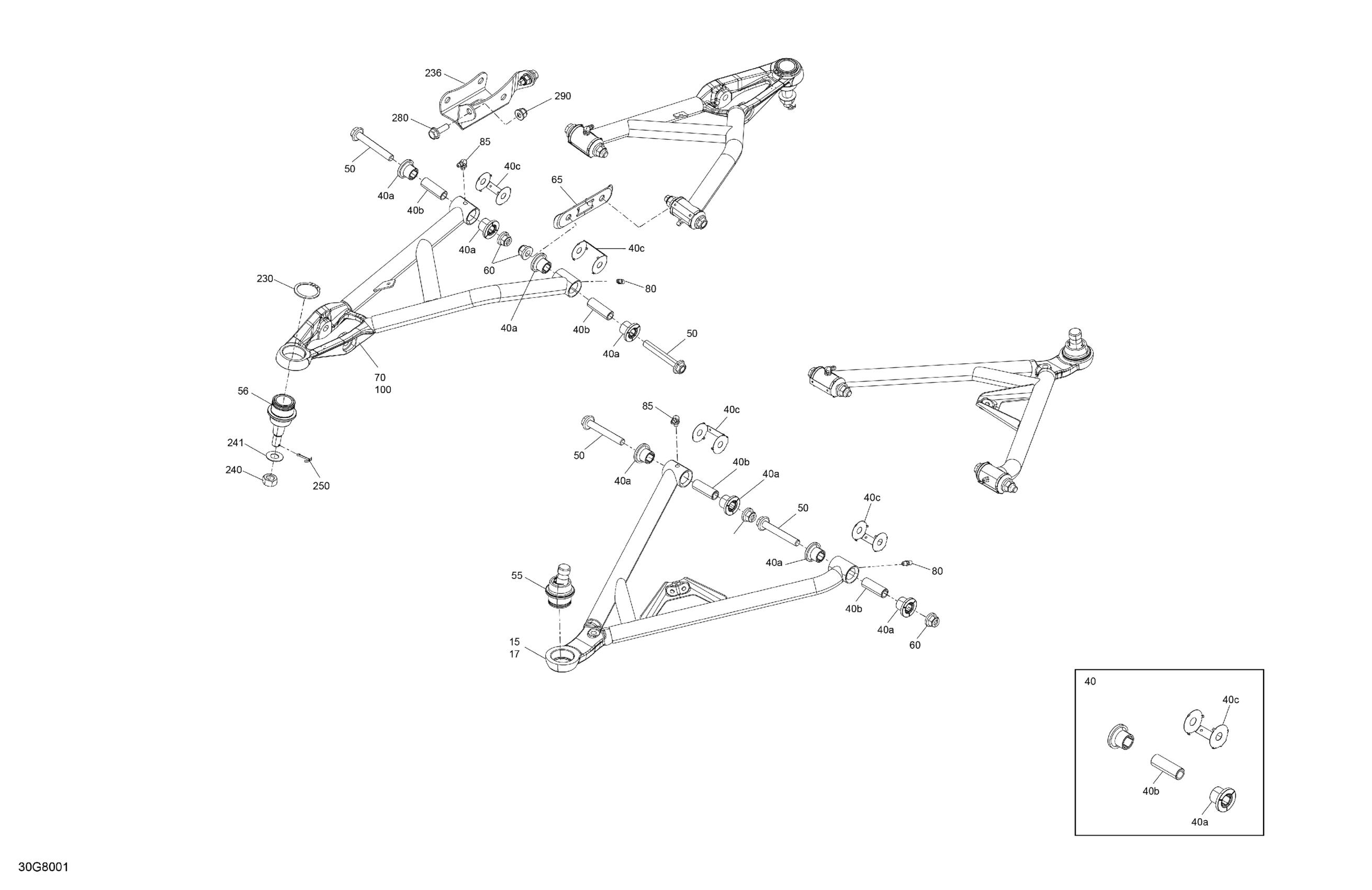

Can-Am OUTLANDER - 4X4 - Mossy Oak Hunting Edition - 570 EFI - 3ZJC - Break Up Country - CALI, 2018 Suspension - Front Components Diagram

Description

Price

LH Lower Suspension Arm

706204639

$147.73

Black, RH Lower Arm

706202870

$147.73

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

40a

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

40b

Spacer

706204623

Unavailable

40c

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

Hex. Flange Screw M10 X 70

207607046

$2.82

Ball Joint

706202045

$34.30

Ball Joint

706202044

$34.30

Hex. Flange Elastic Nut M10

233201436

$2.00

Front Suspension Cross Plate

706200998

$4.76

RH Upper Suspension Arm

706204642

$147.73

Grease Fitting

408200700

$3.21

Grease Fitting 90°

293550056

$1.04

100

LH Upper Suspension Arm

706204641

$147.73

230

Circlip

293370035

$2.48

236

Upper Front Holder

705203247

$13.09

240

Nut M12

250100099

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

280

Hex. Flange Screw M8 X 25

207682544

$1.03

290

Hex. Flange Elastic Nut M8

233281414

$1.31
