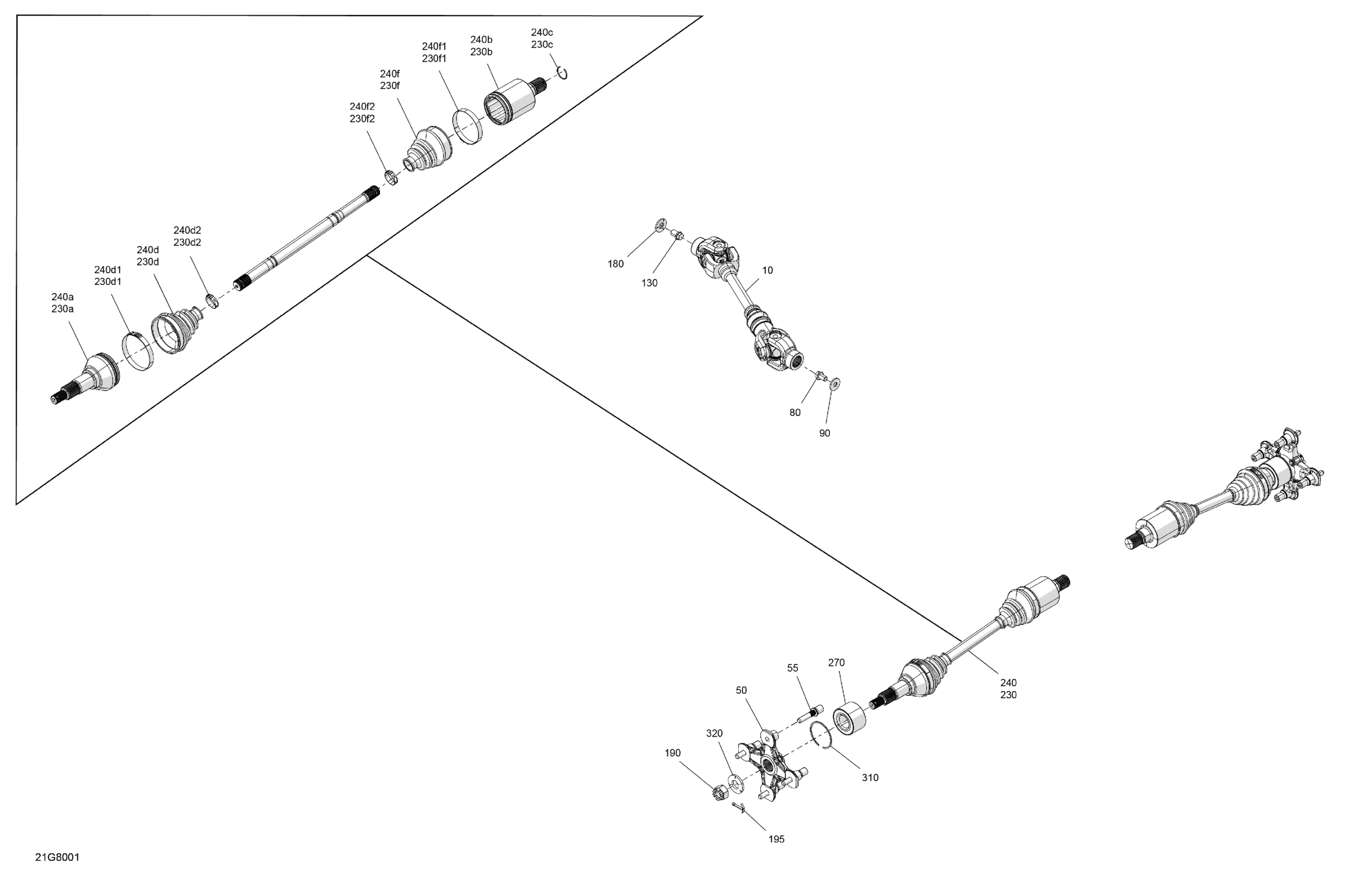

Can-Am OUTLANDER - 4X4 - Mossy Oak Hunting Edition - 450 EFI - 1YJC - Break Up Country - CALI, 2018 Drive - Rear - Common Parts Diagram

Description

Price

Rear Propeller Shaft Ass'y Kit

703500932

$259.49

Wheel Hub Ass'y

705501716

$105.99

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Half Shaft Ass'y

705501897

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Circlip

705501781

$6.50

230d

Boot Kit, Wheel Side

705401345

$42.49

230d1

Oetiker Clamp

715900282

$5.29

230d2

Oetiker Clamp, Small

715900283

$5.29

230f

Boot Kit, Differential Side

705401346

$42.49

230f1

Oetiker Clamp, Large

715900284

$5.29

230f2

Oetiker Clamp, Small

715900261

$5.29

240

LH Half Shaft Ass'y

705501898

$243.99

240a

CV Joint

705401344

$259.49

240b

Plunging Joint

715900304

$121.49

240c

Circlip

705501781

$6.50

240d

Boot Kit, Wheel Side

705401345

$42.49

240d1

Oetiker Clamp

715900282

$5.29

240d2

Oetiker Clamp, Small

715900283

$5.29

240f

Boot Kit, Differential Side

705401346

$42.49

240f1

Oetiker Clamp, Large

715900284

$5.29

240f2

Oetiker Clamp, Small

715900261

$5.29

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65
