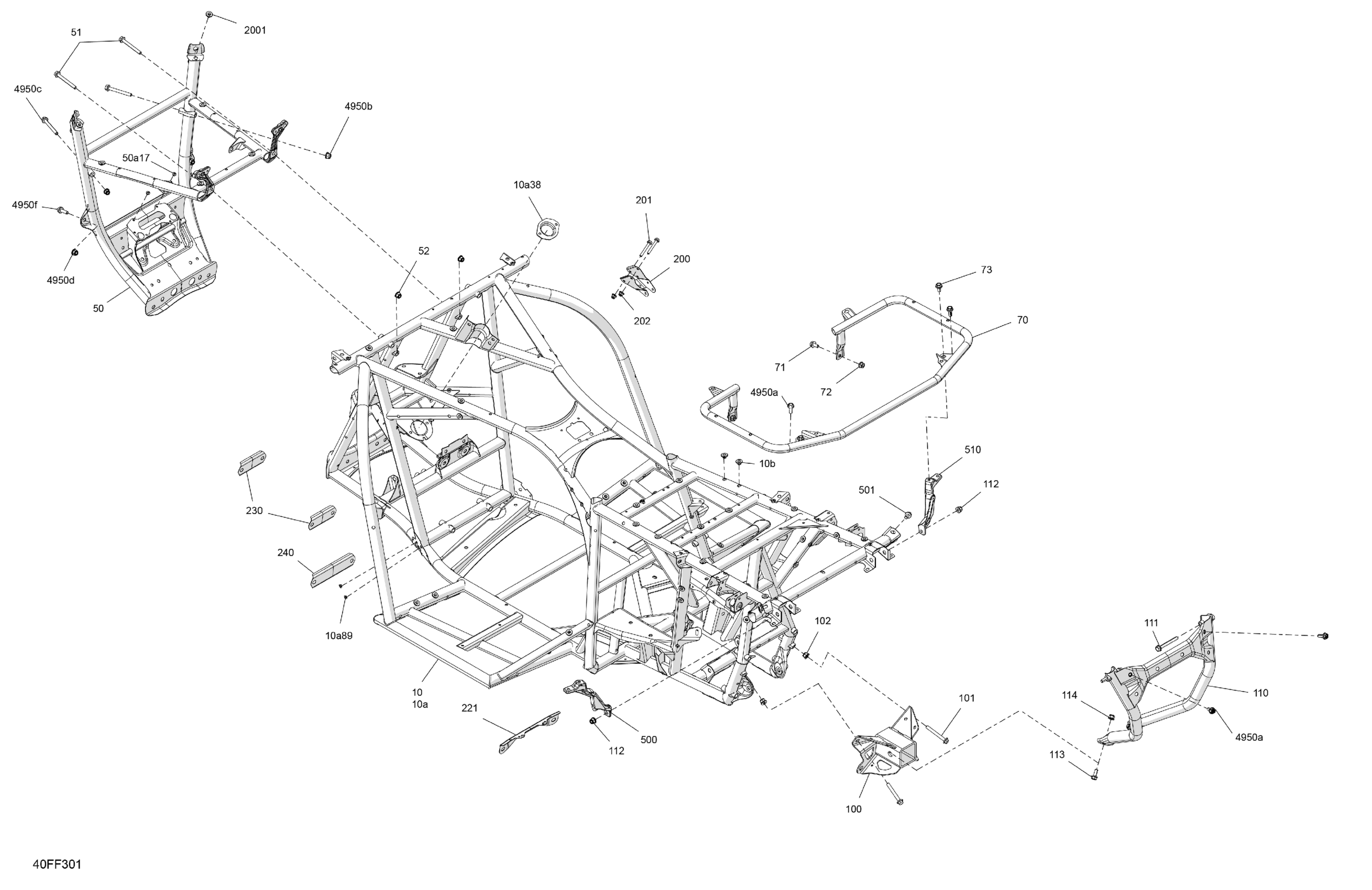

Can-Am OUTLANDER - 4X4 - DPS - 1000R - 4DTB - CALI - Granite Grey - 2026 Frame - System Diagram

#

Description
Price

4950a

Hex Screw Washer Head M8 X 20

207582054

$2.61

4950b

Hex. Flange Nut M8

233181414

$0.91

4950c

Hex. Flange Screw S.Grip M8 X 75

250001296

$3.68

4950d

Hex. Flange Nut M8

233181414

$0.91

4950f

Hex Screw Washer Head M8 X 20

207582054

$2.61

10

Chassis Ass'y | Includes 10 to 10b

715010932

$1,899.99

10a

Not Available As Spare Parts

XXX

Unavailable

10a38

Lower Bearing Support

709402713

$41.51

10a89

Pop Rivet 3/16 X ,425

293150293

$0.26

10b

Threaded Insert

293450383

$2.31

50

Front Bumper | Includes 50 to 50a17

705211446

$258.43

50a17

Pop Rivet 3/16 X ,425

293150293

$0.26

51

Hex. Flange Screw M8 X 70

207687044

$6.11

52

Hex. Flange Elastic Nut M8

233281414

$1.14

70

Rear Bumper Anchorage

705211733

$239.97

71

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

72

Hex. Flange Nut M8

233181414

$0.91

73

Hex Torx Truss M8 X30

250000745

$3.05

100

Trailer Hitch Kit | Includes 100 to 100a3

715010529

$59.97

101

Hex. Flange Screw, M8 X 65

207686544

$9.74

102

Hex. Flange Elastic Nut M8

233281414

$1.14

110

Rear Chassis Reinforcement Kit

715010514

$91.99

111

Hex. Flange Screw M8 X 70

207687044

$6.11

112

Hex. Flange Elastic Nut M8

233281414

$1.14

113

Hex. Flange Screw M8 X 20

207682044

$0.92

114

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Lever Support

705208228

$10.62

201

Hex. Flange Screw M6 X 45

207664544

$1.07

202

Hex. Flange Elastic Nut M6

233261466

$1.66

221

Rear Suspension Arm Reinforcement

705209026

$4.91

230

Front Upper Suspension Arm Reinforcement

705212296

$5.52

240

Front Lower Suspension Arm Reinforcement

705211664

$5.52

500

LH Machined Bumper Anchorage

705211736

$34.58

501

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

510

RH Machined Bumper Anchorage

705211738

$34.58

2001

Threaded Insert

293450383

$2.31
