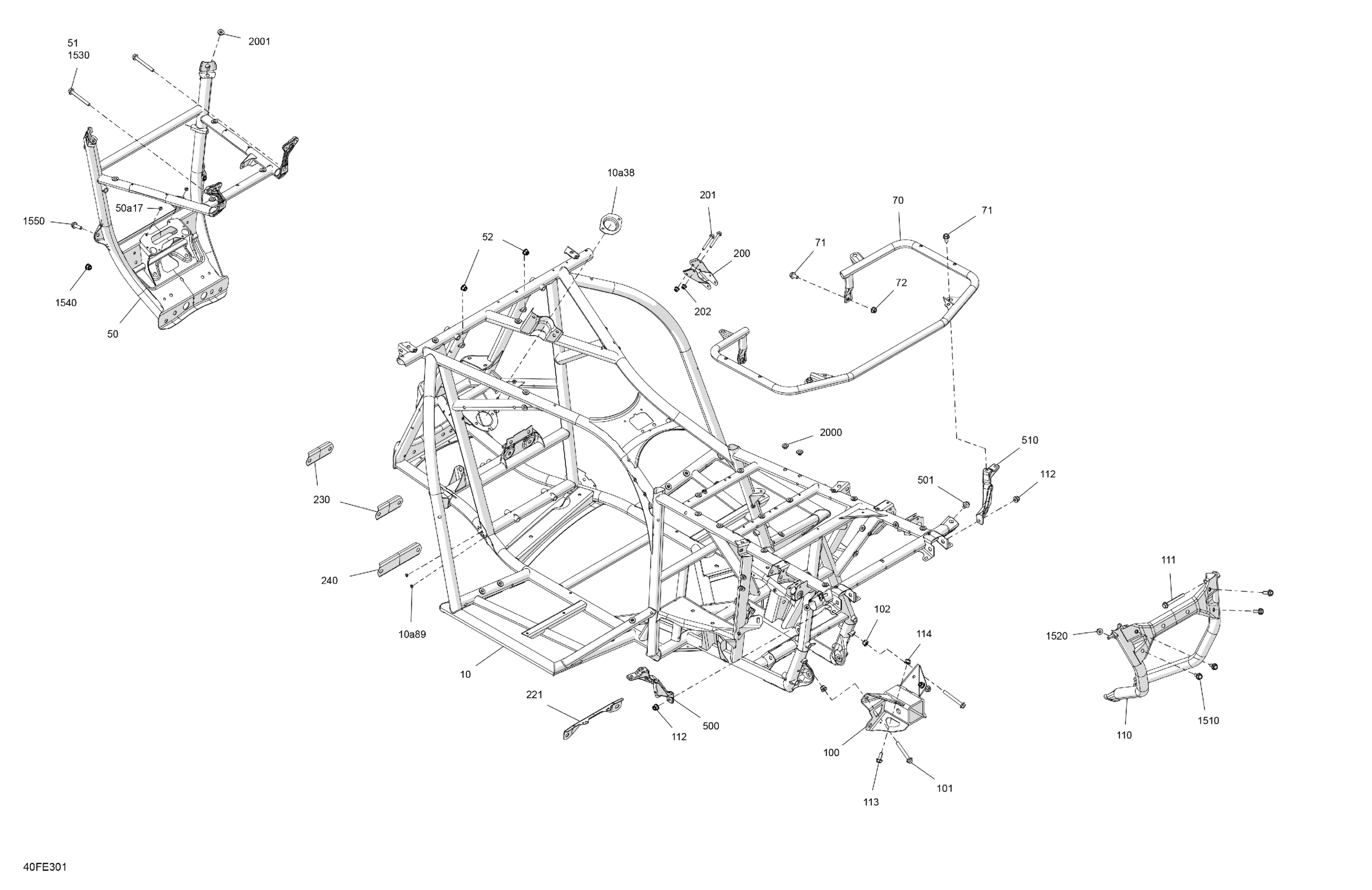

Can-Am OUTLANDER - 4X4 - DPS - 1000R - 4DSB - Granite Grey - 2025 Frame - System Diagram

#

Description
Price

10

Chassis Ass'y | Includes 10 to 10a101a

715010301

$1,049.99

10a38

Lower Bearing Support

709402713

$43.99

10a89

Pop Rivet 3/16 X ,425

293150293

$0.35

50

Front Bumper | Includes 50 to 50a17

705211446

$264.99

50a17

Pop Rivet 3/16 X ,425

293150293

$0.35

51

Hex. Flange Screw M8 X 70

207687044

$7.41

52

Hex. Flange Elastic Nut M8

233281414

$1.47

70

Rear Bumper Anchorage

705211733

$248.99

71

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

72

Hex. Flange Nut M8

233181414

$1.15

73

Hex Torx Truss M8 X30

250000745

$3.17

100

Trailer Hitch Kit | Includes 100 to 100a3

715010529

$62.49

101

Hex. Flange Screw, M8 X 65

207686544

$13.16

102

Hex. Flange Elastic Nut M8

233281414

$1.47

110

Rear Chassis Reinforcement Kit

715010514

$91.99

111

Hex. Flange Screw M8 X 70

207687044

$7.41

112

Hex. Flange Elastic Nut M8

233281414

$1.47

113

Hex. Flange Screw M8 X 20

207682044

$1.15

114

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Lever Support

705208228

$12.49

201

Hex. Flange Screw M6 X 45

207664544

$1.46

202

Hex. Flange Elastic Nut M6

233261466

$2.00

221

Rear Suspension Arm Reinforcement

705209026

$5.29

230

Front Upper Suspension Arm Reinforcement

705212296

$5.49

240

Front Lower Suspension Arm Reinforcement

705211664

$5.49

500

LH Machined Bumper Anchorage

705211736

$37.99

501

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

510

RH Machined Bumper Anchorage

705211738

$37.99

1510

Hex Screw Washer Head M8 X 20

207582054

$3.17

1520

Hex. Flange Nut M8

233181414

$1.15

1530

Hex. Flange Screw S.Grip M8 X 75

250001296

$3.06

1540

Hex. Flange Nut M8

233181414

$1.15

1550

Hex Screw Washer Head M8 X 20

207582054

$3.17

2000

Threaded Insert

293450383

$2.61

2001

Threaded Insert

293450383

$2.61
