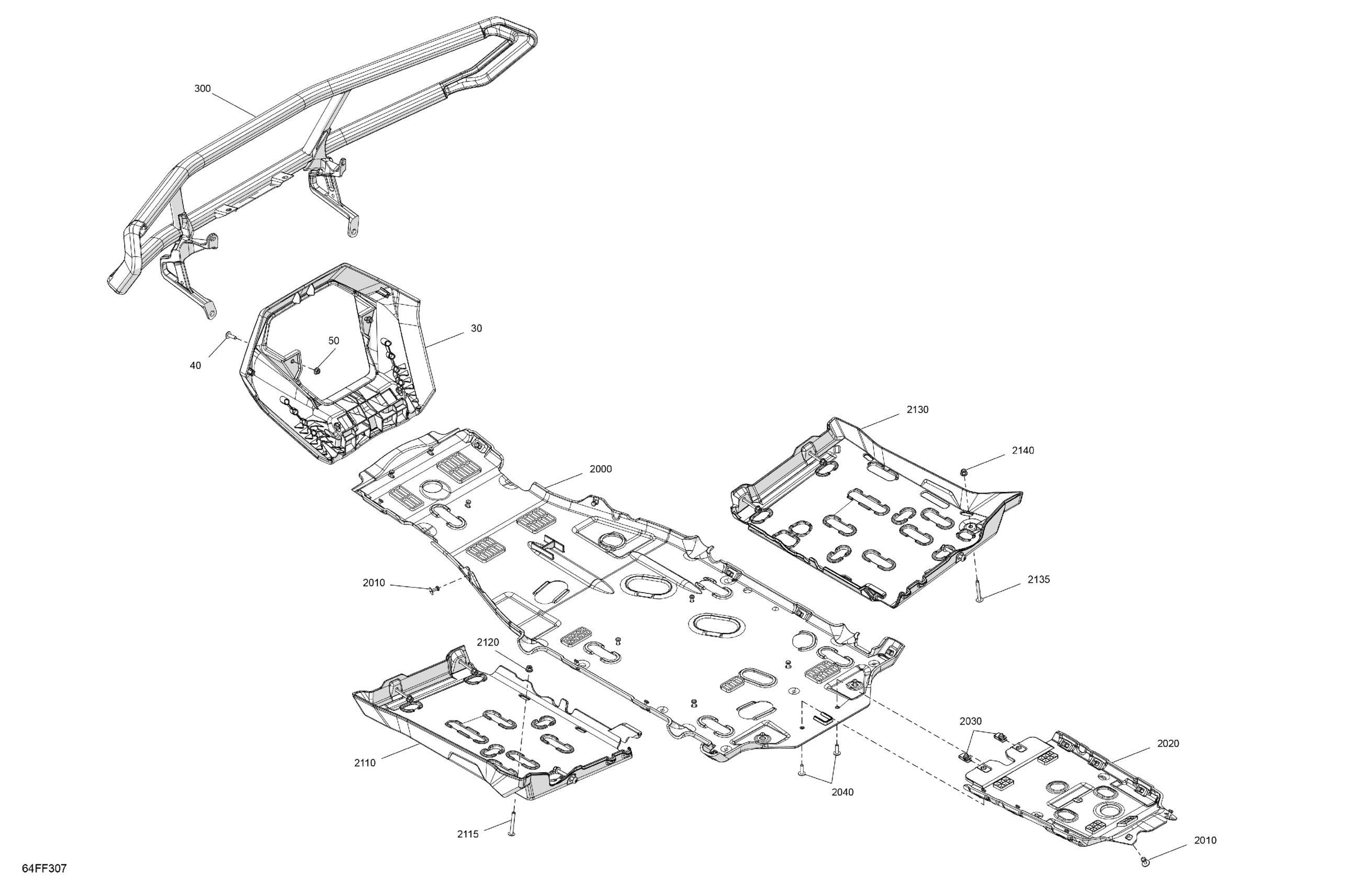

Can-Am Off-Road North America - OUTLANDER - 4X4 - BACKCOUNTRY - 1000R - 4NTF - Stealth Black - 2026 07- Body - Skid Plate and Bumper Diagram

Description

Price

Front Skid Plate

715010536

$29.49

Screw Torx M6 X 20

250001257

$1.68

Hex. Flange Nut M6

233161414

$2.11

2000

Central Skid Plate Short

705018715

$98.49

2010

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

2020

Lower Rear Skid Plate

705014893

$98.49

2030

Panel Nut M6 X 1.0

250100198

$2.11

2040

Screw Torx M6 X 20

250001257

$1.68

2110

LH Skid Plate

705019277

$98.49

2115

Torx Truss Screw M6 X 50

250000749

$3.17

2120

Hex. Flange Elastic Nut M6

233261494

$1.58

2130

RH Skid Plate

705019278

$98.49

2135

Torx Truss Screw M6 X 50

250000749

$3.17

2140

Hex. Flange Elastic Nut M6

233261494

$1.58

4950a

Tuflok Plastic Rivet

293150230

$1.47

4950b

Tuflok Plastic Rivet

293150230

$1.47

4950c

Torx Head Screw M6 X 16

250000717

$2.11

4950d

Stainless Steel Flat Washer

234062670

$2.11

300

Macchiato Satin, Front Bumper

705212942

$264.99
