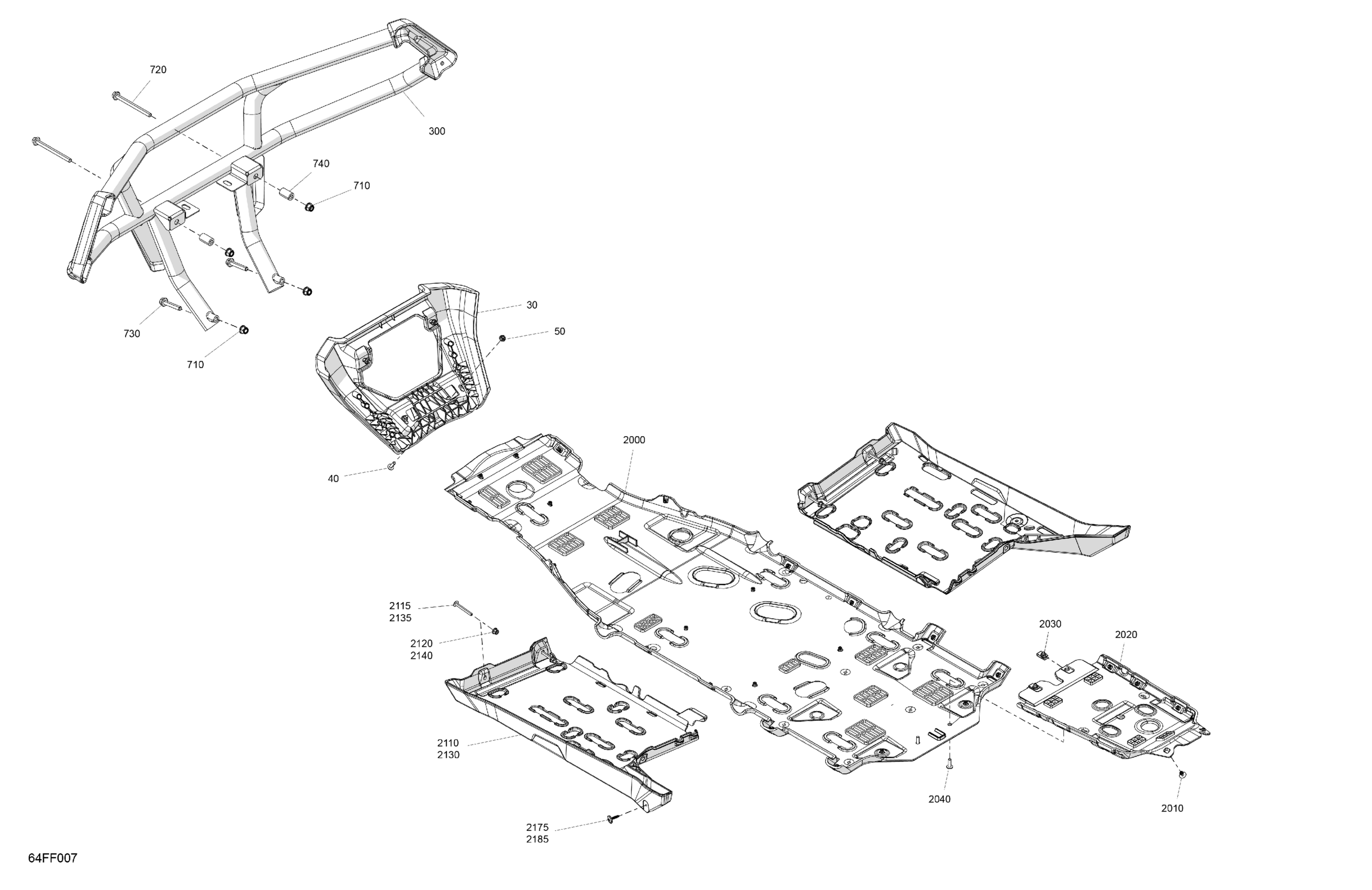

Can-Am OUTL-PRO-MAX - 4X4 - HUNT - HD7 - 2ATB - CALI - Dark Wildland Camo - 2026 Body - Skid Plate and Bumper Diagram

#

Description

Price

30

Front Skid Plate

705014900

Unavailable

40

Screw Torx M6 X 20

250001257

Unavailable

50

Hex. Flange Nut M6

233161414

Unavailable

2000

Central Skid Plate Long

705018716

Unavailable

2010

Black, Pop Rivet 3/16 X ,550

293150292

Unavailable

2020

Lower Rear Skid Plate

705014893

Unavailable

2030

Panel Nut M6 X 1.0

250100198

Unavailable

2040

Screw Torx M6 X 20

250001257

Unavailable

2110

LH Skid Plate

705019453

Unavailable

2115

Torx Truss Screw M6 X 50

250000749

Unavailable

2120

Hex. Flange Elastic Nut M6

233261494

Unavailable

2130

RH Skid Plate

705019454

Unavailable

2135

Torx Truss Screw M6 X 50

250000749

Unavailable

2140

Hex. Flange Elastic Nut M6

233261494

Unavailable

2175

Torx Screw Truss Head PT.K50 X 25

250000907

Unavailable

2185

Torx Screw Truss Head PT.K50 X 25

250000907

Unavailable

710

Hex. Elastic Flange Nut M8

233281416

Unavailable

720

Hex. Flange Screw M8 X 95

207689534

Unavailable

730

Hex. Flange Screw M6 X 45

250001028

Unavailable

740

Spacer

705210807

Unavailable

300

Deep Black, Front Bumper

705016741

Unavailable
