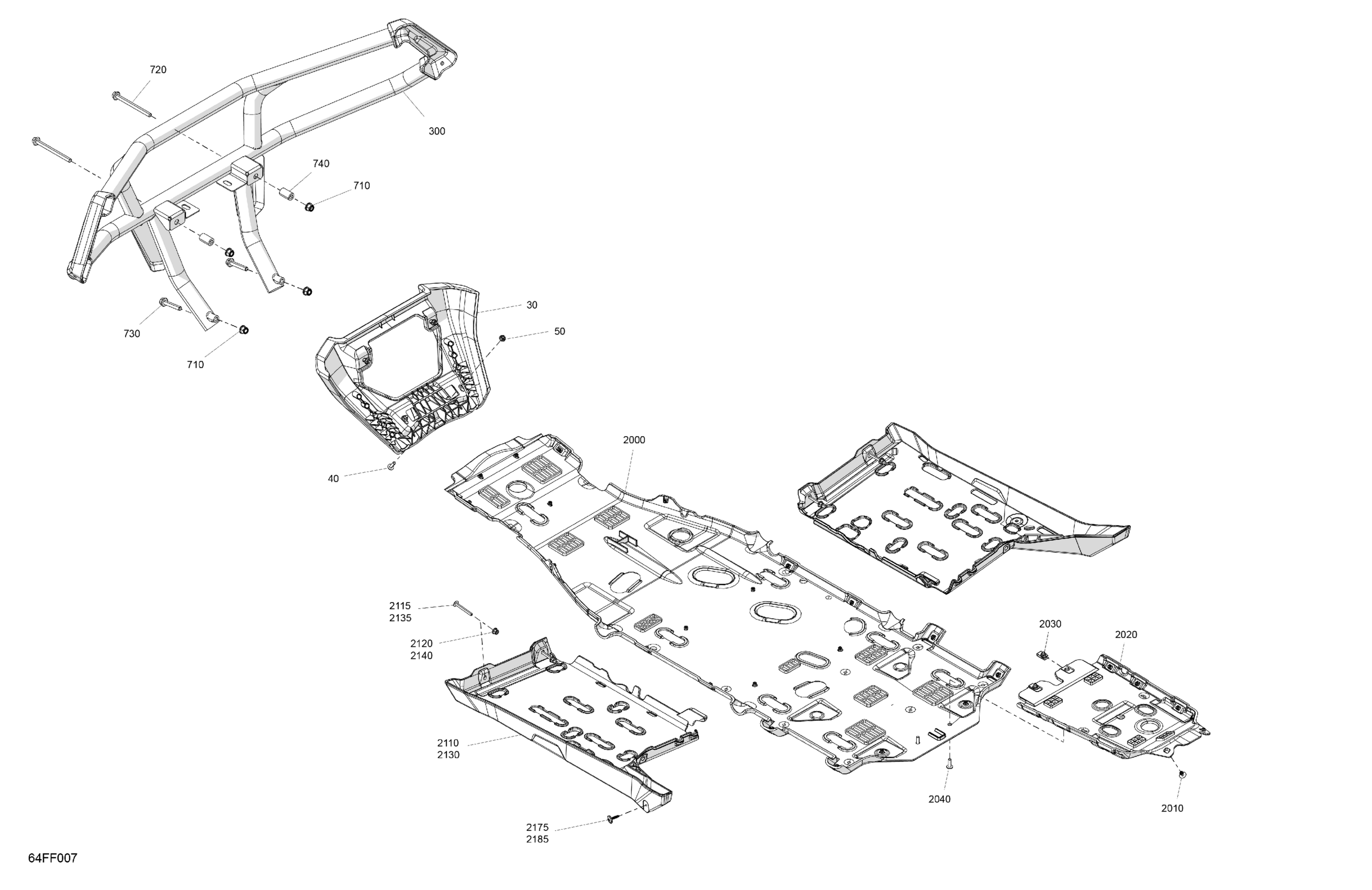

Can-Am OUTL-PRO-MAX - 4X4 - HUNT - HD7 - 2ATB - CALI - Dark Wildland Camo - 2026 Body - Skid Plate and Bumper Diagram

Description

Price

Front Skid Plate

705014900

$28.99

Screw Torx M6 X 20

250001257

$1.68

Hex. Flange Nut M6

233161414

$2.11

2000

Central Skid Plate Long

705018716

$98.49

2010

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

2020

Lower Rear Skid Plate

705014893

$98.49

2030

Panel Nut M6 X 1.0

250100198

$2.11

2040

Screw Torx M6 X 20

250001257

$1.68

2110

LH Skid Plate

705019453

$98.49

2115

Torx Truss Screw M6 X 50

250000749

$3.17

2120

Hex. Flange Elastic Nut M6

233261494

$1.58

2130

RH Skid Plate

705019454

$98.49

2135

Torx Truss Screw M6 X 50

250000749

$3.17

2140

Hex. Flange Elastic Nut M6

233261494

$1.58

2175

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

2185

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

710

Hex. Elastic Flange Nut M8

233281416

$1.48

720

Hex. Flange Screw M8 X 95

207689534

$4.23

730

Hex. Flange Screw M6 X 45

250001028

$1.26

740

Spacer

705210807

$10.49

300

Deep Black, Front Bumper

705016741

$291.49
