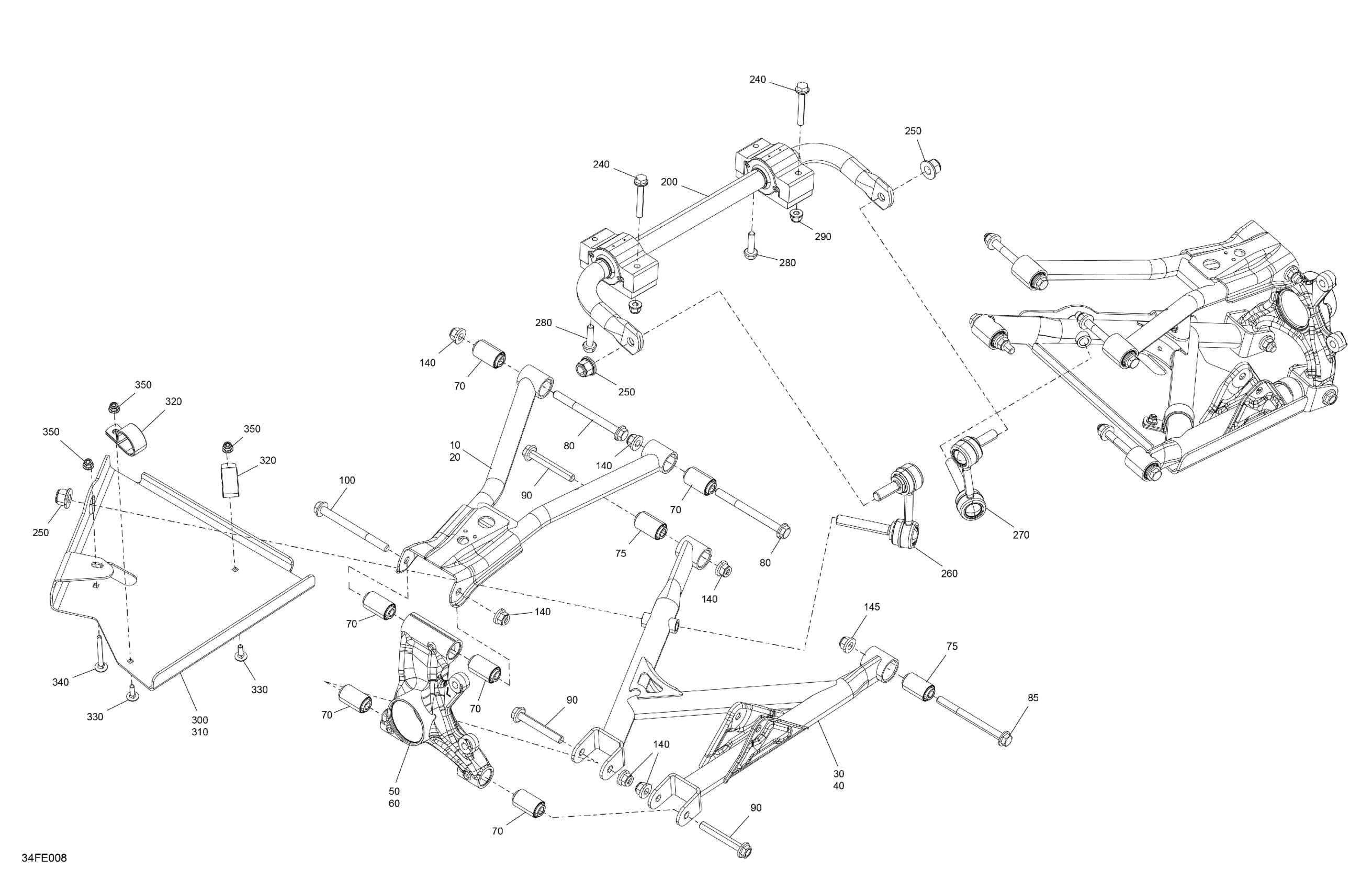

Can-Am OUTL-PRO-MAX - 4X4 - HUNT - HD7 - 2ASB - Widland Camo - 2025 Suspension - Rear Components Diagram

LH Upper Suspension Arm Ass'y

715010405

$156.89

RH Upper Suspension Arm Ass'y

715010406

$156.89

LH Lower Suspension Arm Ass'y With Bushing | Includes 30 to 30d

715010958

$156.89

RH Lower Suspension Arm Ass'y With Bushing | Includes 40 to 40d

715010959

$156.89

LH Rear Knuckle

706004297

$119.97

RH Rear Knuckle

706004298

$119.97

Suspension Arm Bushing

706004511

$12.91

Suspension Arm Bushing

706005631

$12.91

Hex.Flange Screw Din.6921

230601546

$2.59

Screw Flange M12 X 115

250000860

$5.47

Hex. Flange Screw M10 X 70

207607046

$2.91

Hex Flange Screw DIN.6921

230601046

$2.20

Hex. Flange Elastic Nut M10

233201436

$1.74

Elastic Flange Nut M12

233221416

$2.33

Stabilizer Bar Ass'y

706004983

$96.89

Hex. Flange Screw M8 x 60

207686044

$2.56

Elastic Flange Nut M12

233221416

$2.33

LH Rear Stabilizer Bar Link

706205989

$67.66

RH Rear Stabilizer Bar Link

706205990

$67.66

Hex. Flange Screw M8 X 30 Scotch Grip

250001073

$4.25

Hex. Flange Elastic Nut M8

233281414

$1.14

LH Rear Suspension Arm Guard

706003924

$114.58

RH Rear Suspension Arm Guard

706003925

$114.58

Fastener

706005364

$7.60

Carriage Bolt M6 X 20

250000677

$2.06

Carriage Bolt M6 X 60

207766054

$16.12

Hex. Flange Elastic Nut M6

233261466

$1.66
