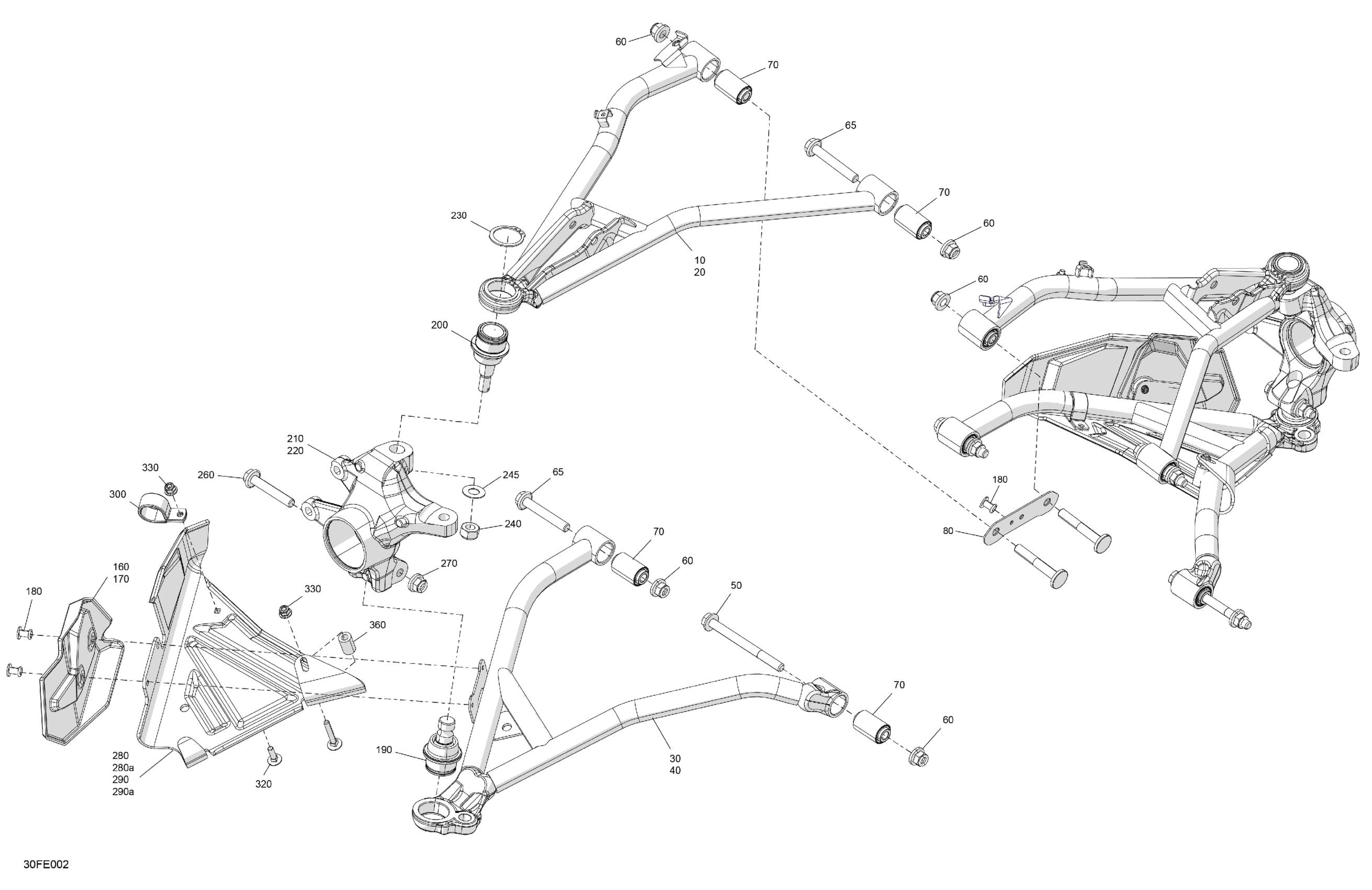

Can-Am OUTL-PRO-MAX - 4X4 - HUNT - HD7 - 2ASB - Widland Camo - 2025 Suspension - Front Components Diagram

LH Upper Suspension Arm

706206099

$104.99

RH Upper Suspension Arm

706206100

$104.99

LH Lower Suspension Arm

706203187

$158.99

RH Lower Suspension Arm

706203188

$158.99

Hex Flange Screw DIN.6921

230601046

$2.64

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 65

207606536

$4.44

Suspension Arm Bushing

706004511

$13.49

Suspension Arm Anchorage

705208352

$134.99

LH CV joint Guard

706202134

$11.01

RH CV joint Guard

706202135

$11.01

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Ball Joint

706202045

$35.99

Ball Joint

706202044

$35.99

LH Knuckle

706203212

$179.99

RH Knuckle

706203213

$179.99

Circlip

293370035

$2.64

Hex. Elastic Hex. Nut M12

250100089

$0.46

Hardened Washer

706200281

$2.85

Hex. Flange Screw M10 X 60

207606044

$3.38

Hex. Flange Elastic Nut M10

233201436

$2.11

LH Front Formed Suspension Guard

706205630

$106.49

LH Front Suspension Arm Guard

706204073

Unavailable

RH Front Formed Suspension Guard

706205631

$106.49

RH Front Suspension Arm Guard

706204074

Unavailable

Fastener

706205579

$8.09

Carriage Bolt M6 X 20

250000677

$2.11

Hex. Flange Elastic Nut M6

233261466

$2.00

Torx-Truss M/S M5X20 | Not Shown

250000895

$2.11

Flange Elastic Nut M5

233251434

$2.00

Spacer

706205578

$8.99
