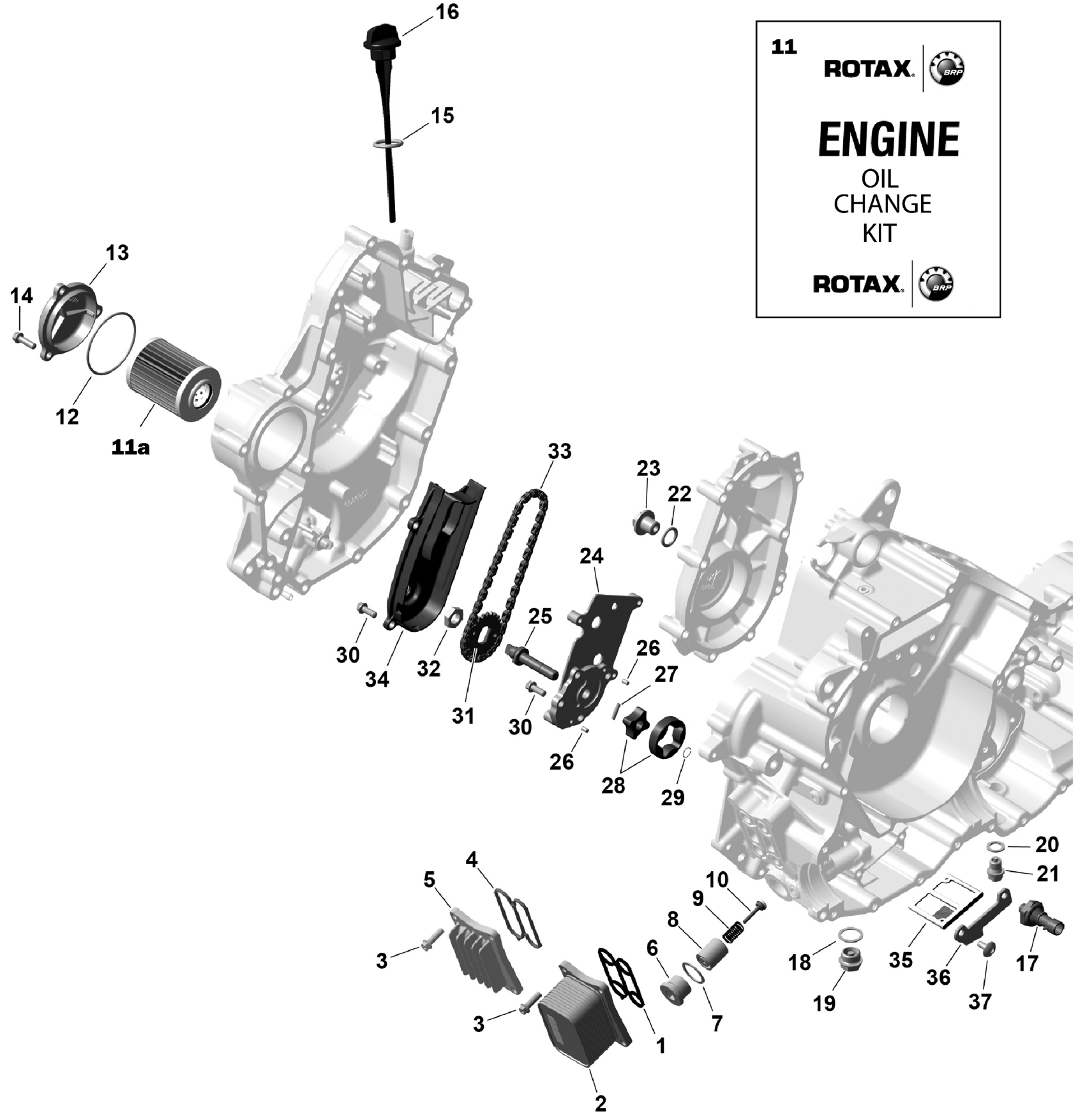

Can-Am OUTL-PRO - 4X4 - STD - HD7 - 1JSB - Compass Green - 2025 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Gasket | Included in gasket kit

420431876

$27.49

2

Radiator

420890181

$95.49

3

Torx Flange Screw M6 X 16

420440164

$2.19

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Plug Screw

420640271

$13.77

7

Gasket Ring

420650465

$13.16

8

Housing

420256487

$7.41

9

Compression Spring

420939485

$12.99

10

Pressure Relief Valve

420656370

$19.19

11

CAN-AM Oil Change Kit 5W40 ACE 650C

9779480

$64.99

11a

Oil Filter

420256188

$13.77

12

O-Ring | Included in gasket kit

420230922

$0.92

13

Oil Filter cover

420612135

$11.63

14

Torx Flange Screw M6 X 20

420440207

$3.06

15

O-Ring

420631641

$1.01

16

Oil Lever Tube

420256821

$17.68

17

Oil Pressure Switch

420256915

$40.99

18

Crush Washer

420552280

$3.70

19

Drain Plug M18 X 1.5

420840278

$23.99

20

Copper Washer

420250640

$0.98

21

Magnetic Drain Plug M12

420241787

$17.99

22

O-Ring

420650352

$0.90

23

Plug Screw M14 X 1.5

420241662

$15.81

24

Oil Pump Cover

420210655

$47.49

25

Oil Pump Shaft

420220862

$45.49

26

Needle Pin

420929075

$2.11

27

Needle Pin

420232731

$4.01

28

Oil Pump Rotor Set

420256355

$38.99

29

Retaining Ring | Included in gasket kit

420245100

$1.47

30

Torx Flange Screw M6 X 16

420440164

$2.19

31

Drive Gear 25 Teeth

420254441

$7.30

32

Hexagonal Nut M12 X 1

420642059

$9.48

33

Silent Chain

420297055

$51.99

34

Chain Guide

420251341

$15.81

35

Oil Sieve

420256585

$30.49

36

Cover Sieve

420612072

$4.14

37

Torx Screw M6X13

420240051

$0.90
