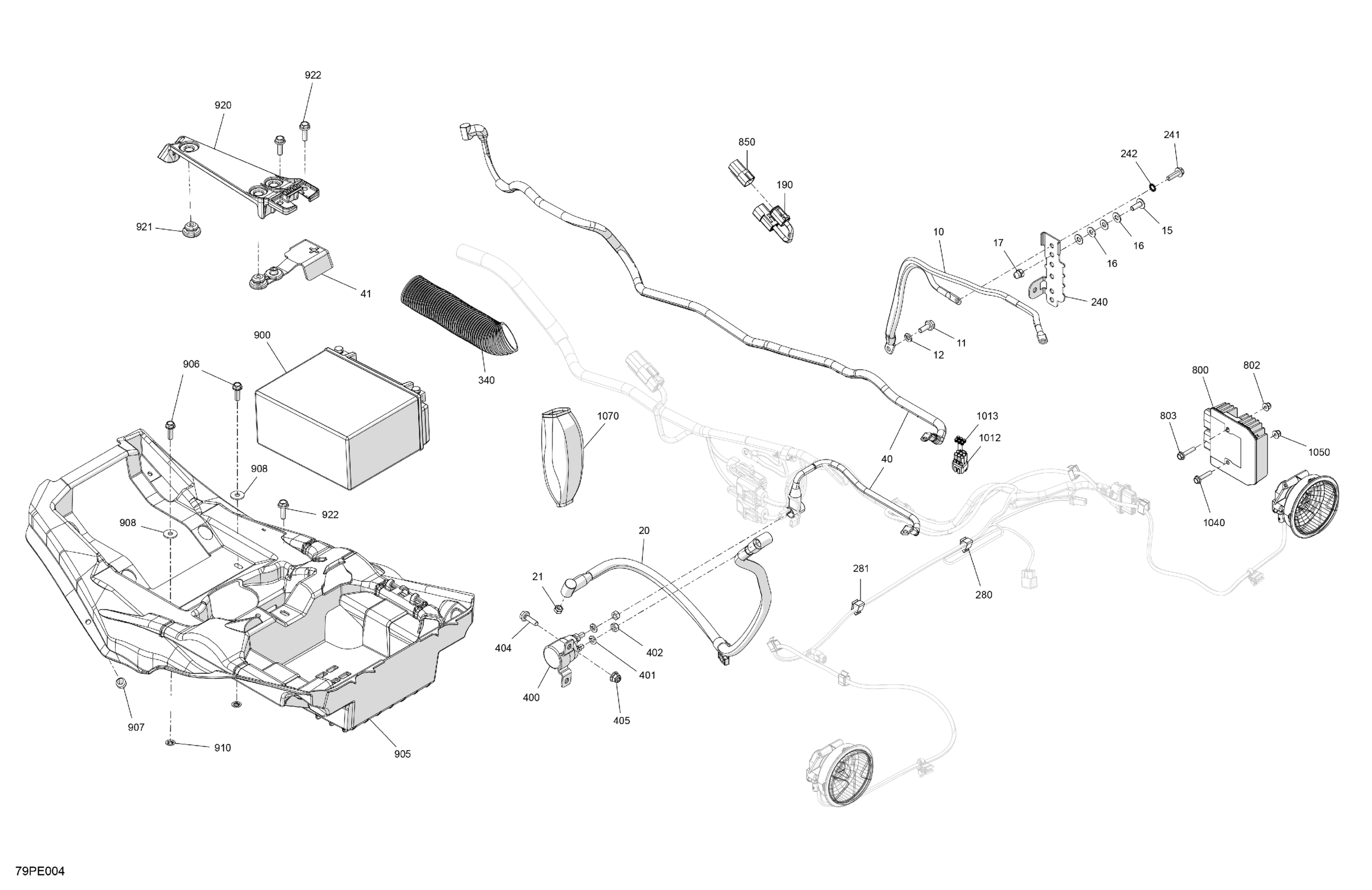

Can-Am OUT-MAX - 6X6 - XT - 1000 EFI - 5ZSA - Boreal Green - 2025 Electric - Rear Section Diagram

Ground Cable

710004382

$17.88

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Lock Washer Helical M6

234161601

$1.06

Torx Head Screw M6 X 16

250000717

$2.00

Flat Washer

224061121

$0.51

Domed Hexagonal Nut Din.1587

232361453

$1.55

Positive Cable

710004377

$24.60

Elastic Stop Nut M6

232561434

$1.78

Cable

710007437

$30.57

Battery Cable Cap

710006729

$6.72

Wiring Harness Adaptor

710009310

$15.64

Connector Bracket

710004118

$5.04

Hex. Flange Screw M6 X 20

210262040

$2.00

External Serrated Lock Washer 6 mm

234461608

$1.06

Clip

710010204

$1.40

Clip

710010204

$1.40

Tubing 35 MM 1000MM Long

219704428

$9.84

Starter Relay

710007777

$45.49

Lock Washer Helical M6

234161601

$1.06

Elastic Stop Nut M6

232561434

$1.78

Hex. Flange Screw M6 X 20

207662054

$0.96

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Voltage Regulator

710005842

$183.55

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Housing

710003006

$8.31

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Support

710008370

$41.76

Hexagonal Head Screw

210262050

$2.00

Rubber Bumper

293830005

$6.12

Stainless Steel Flat Washer

234062670

$2.00

Push Nut

732610072

$1.97

Retaining Plate

710009129

$7.09

Stopper Rubber

705014429

$6.09

Hex. Flange Screw M6 X 20

207662054

$0.96

Rear Lighting Wiring Harness | Not Shown

710009472

$273.85

Male Terminal Housing, 6 Circuits

710000835

$15.64

Cap

710000080

$6.28

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Sheath | Not Shown

710004193

$18.63
