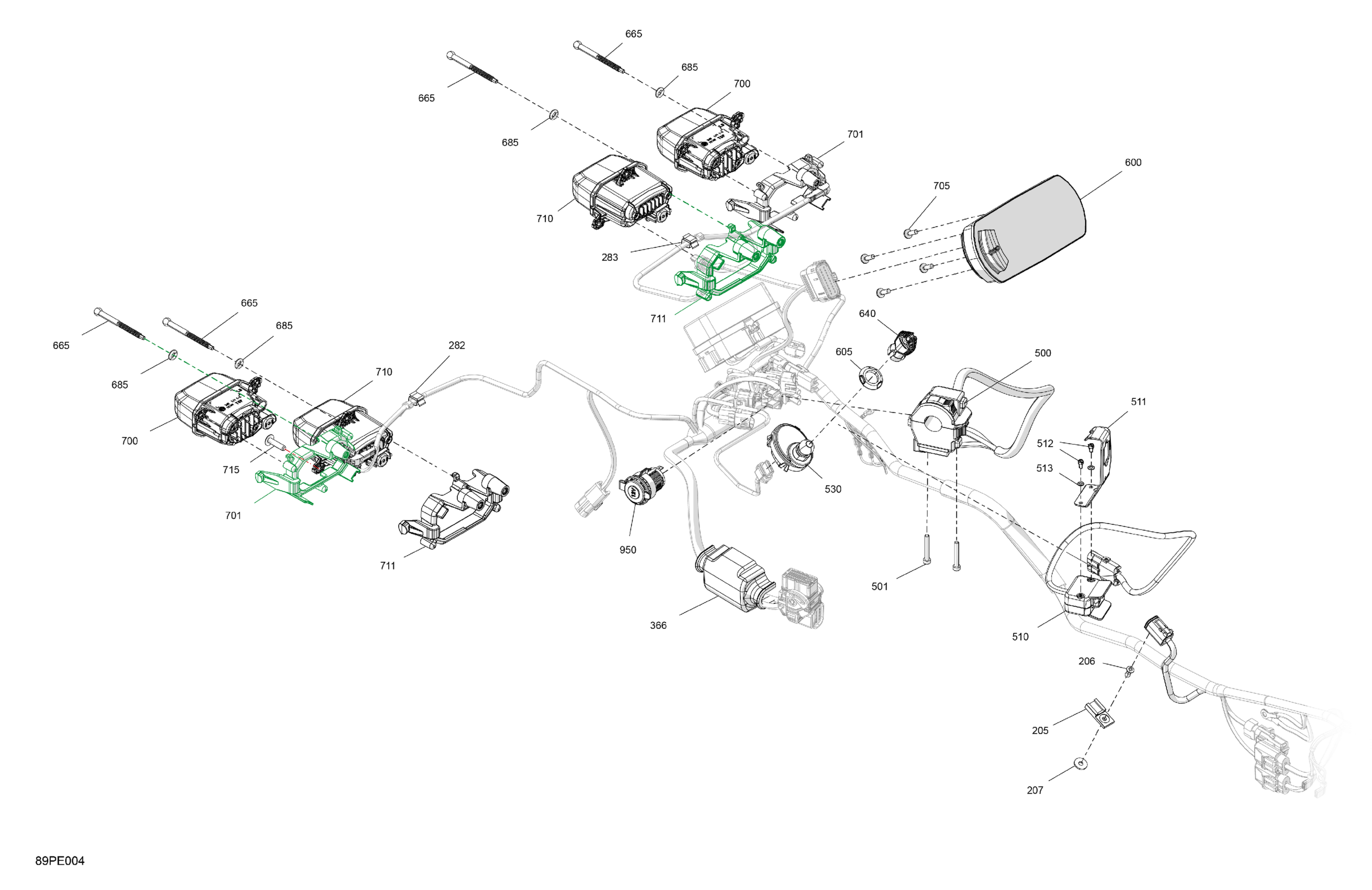

Can-Am OUT-MAX - 6X6 - XT - 1000 EFI - 5ZSA - Boreal Green - 2025 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$9.57

206

Pop Rivet 3/16 X ,551

293150301

$0.73

207

Washer | DS 650 X

391301600

$0.46

282

Clip

710010204

$1.40

283

Clip

710010204

$1.40

366

Soft Protection Sleeve

710007255

$2.51

500

Multifunction Switch

710008837

$74.60

501

Socket Head Screw M5 X 35

205053588

$1.79

510

Winch Switch

710007327

$11.33

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.61

513

Flat Washer 4 mm

234040600

$0.52

530

Terminal DESS One Wire

515179305

$69.37

600

Multifunction Compact Gauge

710008298

$347.73

605

Specialized Nut

278004274

$3.12

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

665

Ajustment Screw

710005837

$5.90

685

O-Ring

293300192

$3.81

700

Low Beam Light

710008088

$152.21

701

Exterior Headlight Support

710008396

$23.85

705

Torx Screw K50 X 16

250000720

$1.60

710

HIgh Beam Light

710006910

$152.21

711

Interior Headlight Support

710008394

$8.15

715

Torx-Truss Pt K40 X 16

250000759

$2.00

950

DC Outlet

710001248

$35.79
