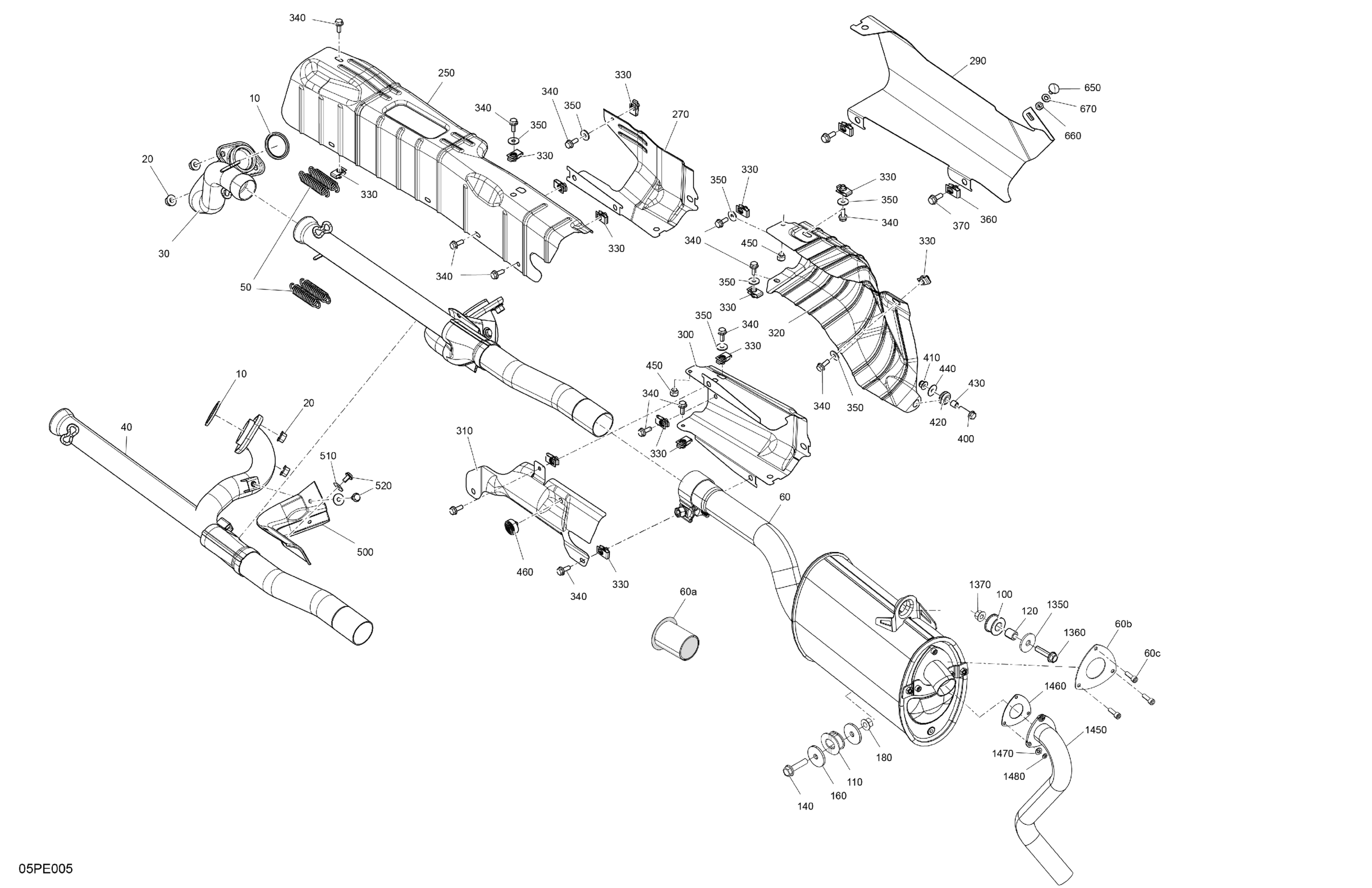

Can-Am OUT-MAX - 6X6 - XT - 1000 EFI - 5ZSA - Boreal Green - 2025 Engine - Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$10.52

20

Hex. Flange Nut

233081436

$1.63

30

Front Head Pipe

707600627

$138.43

40

Rear Head Pipe

707601456

$203.05

50

Spring

415107100

$6.20

60

Exhaust Muffler

707603039

$516.89

60a

Spark Arrestor

707601803

$50.74

60b

Gasket

707601799

$4.62

60c

Socket Head Screw M6 X 20

205062060

$1.92

60d

Muffler End Piece

715900143

$36.89

60f

Support

715900147

$3.98

100

Vibration Damper

707603323

$11.98

110

Rubber

707600448

$7.60

120

Spacer Bushing

293900116

$3.08

140

Hex. Flange Screw M8 X 35

207683544

$1.39

160

Flat Washer M8

250200158

$1.74

180

Hex. Flange Nut

233081436

$1.63

250

Heat Shield

707603724

$12.68

270

Protector

707601484

$12.91

290

Heat Shield

707600996

$23.05

300

Protector

707601485

$12.91

310

Heat Shield

707602604

$16.89

320

Protector

707601425

$18.43

330

Panel Nut M6 X 1.0

250100198

$1.73

340

Hex. Flange Screw M6 X 16

207661644

$0.61

350

Flat Washer 6 mm

234062410

$0.64

360

Panel Nut M6 X 1.0

250100198

$1.73

370

Hex. Flange Screw M6 X 16

207661644

$0.61

400

Hex. Flange Screw M6 X 25

207662544

$0.53

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

420

Overmolded Grommet

293720130

$4.38

430

Bushing

293900105

$6.26

440

Flat Washer

224060201

$1.15

450

Rubber Bumper

293830005

$5.33

460

Rubber Stopper

708000506

$6.15

500

Pipe Protector

707600932

$14.37

510

Flat Washer

250200082

$0.35

520

Hex. Flange Screw M6 X 12 S.Grip

250001090

$1.56

650

Carriage Bolt M6 X 12

207761244

$1.56

660

Elastic Stop Nut M6

232561434

$1.55

670

Flat Washer 6 mm

234061410

$1.04

1350

Washer

503032900

$3.20

1360

Hex. Flange Screw M8 X 35

207683534

$1.74

1370

Hex. Flange Nut

233081436

$1.63

1450

Welded Pipe | Optional

707601604

$258.43

1460

Gasket

707601799

$4.62

1470

Flat Washer 6 mm

234062410

$0.64

1480

Lock Washer Helical M6

234161601

$0.92
