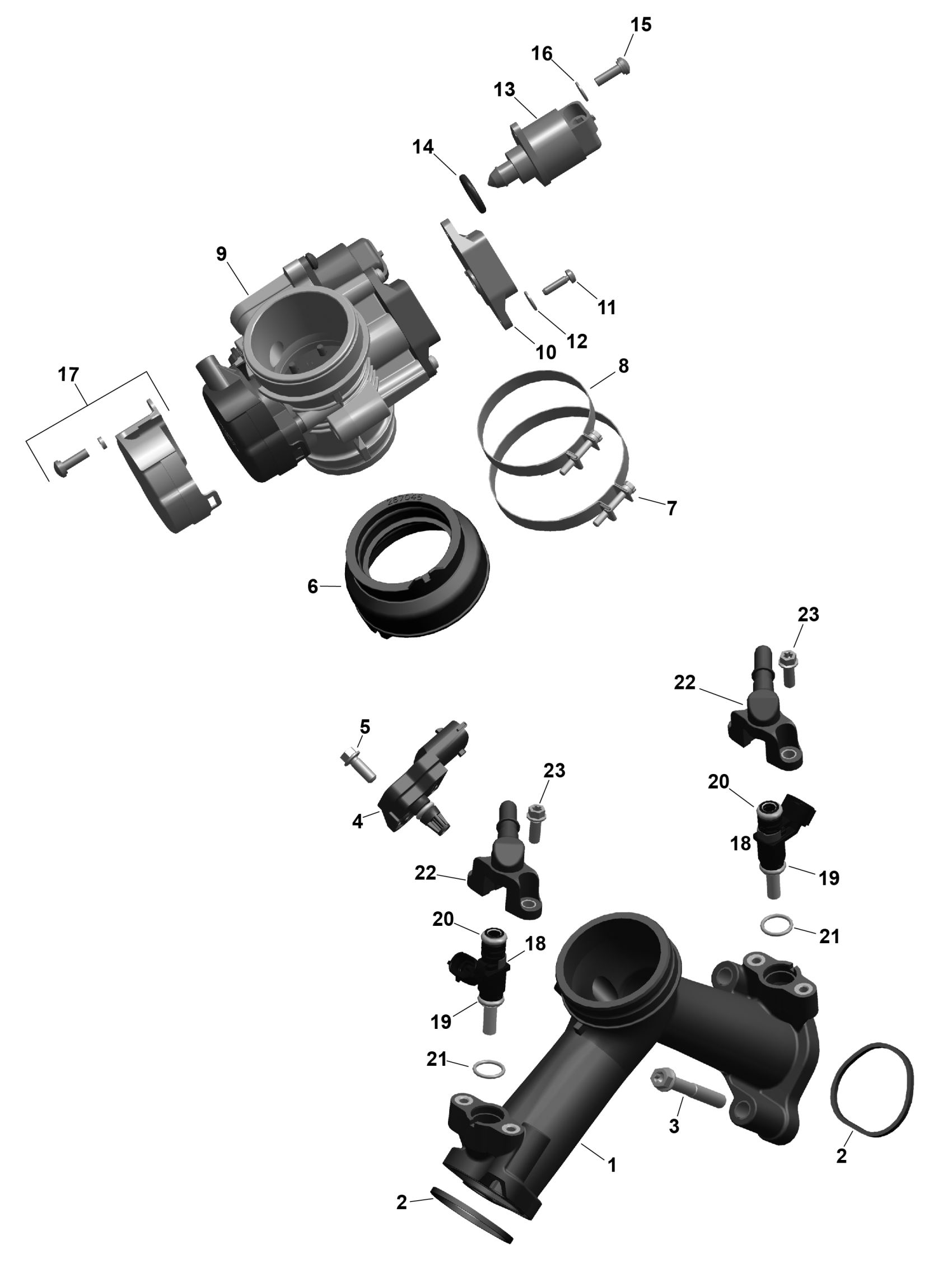

Can-Am OUT-MAX - 6X6 - XT - 1000 EFI - 5ZSA - Boreal Green - 2025 ROTAX - Air Intake Manifold And Throttle Body Diagram

Description

Price

Air Intake Manifold

420667520

$73.82

Gasket

420630642

$5.22

Torx Flange Screw M8 X 55

420641213

$6.11

Pressure And Temperature Sensor

420874658

$70.82

Hex. Flange Screw M6 X 12

420440149

$2.06

Intake Neck

420267045

$10.98

Clamp

420251209

$8.34

Clamp

420251480

$13.58

Throttle Body Ass'y | Includes 8 to 16

420685326

$679.97

Position Sensor

420866120

$77.97

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Idle Air Control Valve

420665941

$147.52

O-Ring

420631780

$3.61

Snap Ring

420845710

$3.38

Binding Head Screw M5 X 16

420440911

$11.48

Cover Kit

420281540

$23.05

Injection Valve Ass'y | Includes 18 to 20

420874887

$166.24

O-Ring

420431890

$4.95

O-Ring

420631220

$11.48

O-Ring

420631296

$0.74

Fuel Rail

420874901

$23.05

Torx Flange Screw M6 X 16

420440162

$3.11
