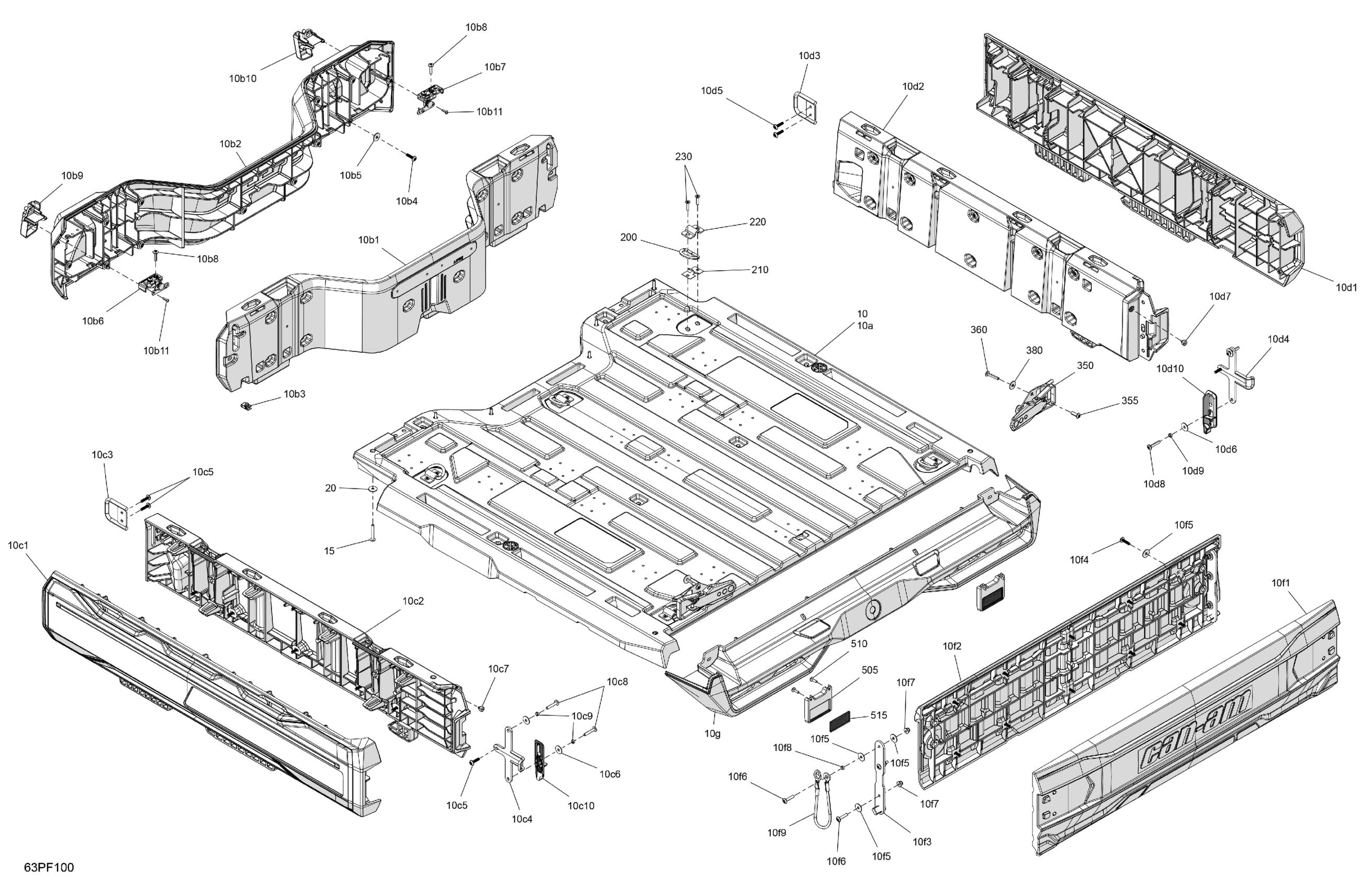

Can-Am OUT-MAX - 6X6 - DPS - 850 EFI - 2HTA - Granite Grey - 2026 Body - Cargo Diagram

#

Description
Price

10

Open Carrier Kit | Includes 10 to 10g

715011226

Unavailable

10a

Open Carrier

708304633

Unavailable

10b1

Open Carrier Interior Panel

708304672

$285.79

10b2

Open Carrier Exterior Panel

708304673

$285.79

10b3

Panel Nut M6 X 1.0

250100245

$3.25

10b4

Hex. Screw Pt K60 X 25

250000980

$2.00

10b5

Flat Washer M6.6 X 22

250200162

$2.19

10b6

LH Latch

705013095

$53.70

10b7

RH Latch

705013096

$53.70

10b8

Torx Truss Screw M6 X 25

250000807

$2.00

10b9

LH Front Latch Handle

708304644

$4.91

10b10

RH Front Latch Handle

708304643

$4.91

10b11

Phillips Screw K40 X 16

250000723

$0.93

10c1

LH Exterior Cargo Box Panel

708304640

$159.67

10c2

LH Interior Cargo Box Panel

708304642

$159.67

10c3

Retaining Plate

708304876

$44.75

10c4

Retaining Plate

708304796

$44.75

10c5

Hex. Screw Pt K60 X 25

250000980

$2.00

10c6

Flat Washer M6.6 X 22

250200162

$2.19

10c7

Rubber Bumper

293830005

$6.12

10c8

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

10c9

Bushing

293900101

$6.16

10c10

LH Rear Lock

708305300

$6.19

10d1

RH Exterior Cargo Box Panel

708304639

$159.67

10d2

RH Interior Cargo Box Panel

708304641

$159.67

10d3

Retaining Plate

708304876

$44.75

10d4

Retaining Plate

708304796

$44.75

10d5

Hex. Screw Pt K60 X 25

250000980

$2.00

10d6

Flat Washer M6.6 X 22

250200162

$2.19

10d7

Rubber Bumper

293830005

$6.12

10d8

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

10d9

Bushing

293900101

$6.16

10d10

RH Rear Lock

708305301

$6.19

10f1

Tailgate Exterior Panel

708304637

$108.93

10f2

Tailgate Liner

708304638

$142.51

10f3

Tailgate Support

708304800

$44.75

10f4

Hex. Screw Pt K60 X 25

250000980

$2.00

10f5

Flat Washer M6.6 X 22

250200162

$2.19

10f6

Stainless, Torx Screw M6 X 30

250000842

$2.00

10f7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

10f8

Bushing

293900101

$6.16

10f9

Cable Retaining

708302893

$27.58

10g

Taillight Support

708304687

$91.76

15

Torx-Truss M/S Nylon Patch M6 X 45

250001351

$1.79

20

Flat Washer M6.6 X 22

250200162

$2.19

200

D-Ring

708302990

$4.15

210

Tie-Down Ring Spring

708302991

$2.39

220

Tie-Down Ring Bracket

708302992

$2.39

230

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$2.00

350

Tailgate Latch Ass'y

708304828

$35.04

355

Binding Barrel Torx M6 X 20

250001339

$5.60

360

Screw Torx M6 X 35

250001258

$2.00

380

Flat Washer M6.6 X 22

250200162

$2.19

505

Reflector Support

708304683

$2.79

510

Torx Screw K50 X 16

250000720

$1.60

515

Red Reflector

520001820

$17.13
