Description

Price

25

Open Carrier Frame

708304771

$499.99

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

35

Ring Half

708305237

$7.89

40

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

45

Latch Handle

708304679

$85.99

50

LH Interior Molded Latch Handle

708304700

$6.59

55

LH Exterior Molded Latch Handle

708305012

$6.59

60

RH Interior Molded Latch Handle

708304701

$6.59

65

RH Exterior Molded Latch Handle

708305013

$6.59

70

Torx-Truss Pt K40 X 16

250000759

$2.11

80

Rubber Stopper

708304685

$5.59

85

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

100

Retaining Hook

708305234

$47.99

110

Bushing

705601622

$14.81

120

Ball Bearing

705601974

$7.49

140

Socket Screw Nylon Patch M10 X 45

250001120

$1.37

150

Brake Pedal Spring

705600792

$9.10

160

Latch Rod

708305011

$5.89

170

Bushing Shouldered

293710216

$3.49

180

Retaining Ring

293370190

$2.29

240

Flat Washer M6.6 X 22

250200162

$2.32

250

Screw Torx M6 X 20

250001257

$1.68

300

Retaining Plate

708305212

$30.99

320

Hex. Flange Screw M10 X 70

207607046

$2.96

330

Hex. Flange Elastic Nut M10

233201436

$2.11

385

Protruding Stud M8 X 28

250300645

$3.99

390

Hex. Flange Screw M8 X 25

207682544

$1.35

395

Stainless Steel Flat Washer

234082670

$2.11

400

Pivot Support

708304664

$36.99

410

Elastic Flange Nut M8

233281464

$1.01

415

Hinge Bushing

708303361

$11.99

420

O-Ring

293300131

$5.29

425

Cap

293000158

$5.29

550

Box Support

708304702

$18.49

560

Rear Storage Box Kit

715011231

$93.99

570

Box Handle

708304628

$19.49

580

Upper Rear Box Cover

708304629

$12.49

590

Gasket

293200177

$16.99

595

Torsion Spring

708305343

$10.49

600

Hinge Pin

708304880

$104.99

605

Torx Screw K50 X 16

250000720

$1.69

610

Screw Torx M6 X 20

250001257

$1.68

620

Plastite Torx Screw M6.81X25

250001231

$1.69

630

Flat Washer M6.6 X 22

250200162

$2.32

650

Red, Reflector

705016982

$14.49

660

Hex. Flange Elastic Nut M5

233251414

$1.04

680

Reflector Support

708200987

$4.09

690

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

700

Shock Absorber

708305227

$114.99

710

Hex. Elastic Flange Nut M8

233281416

$1.48

715

Pin Clevis

250400098

$5.99

720

Hair Pin

414575600

$1.89

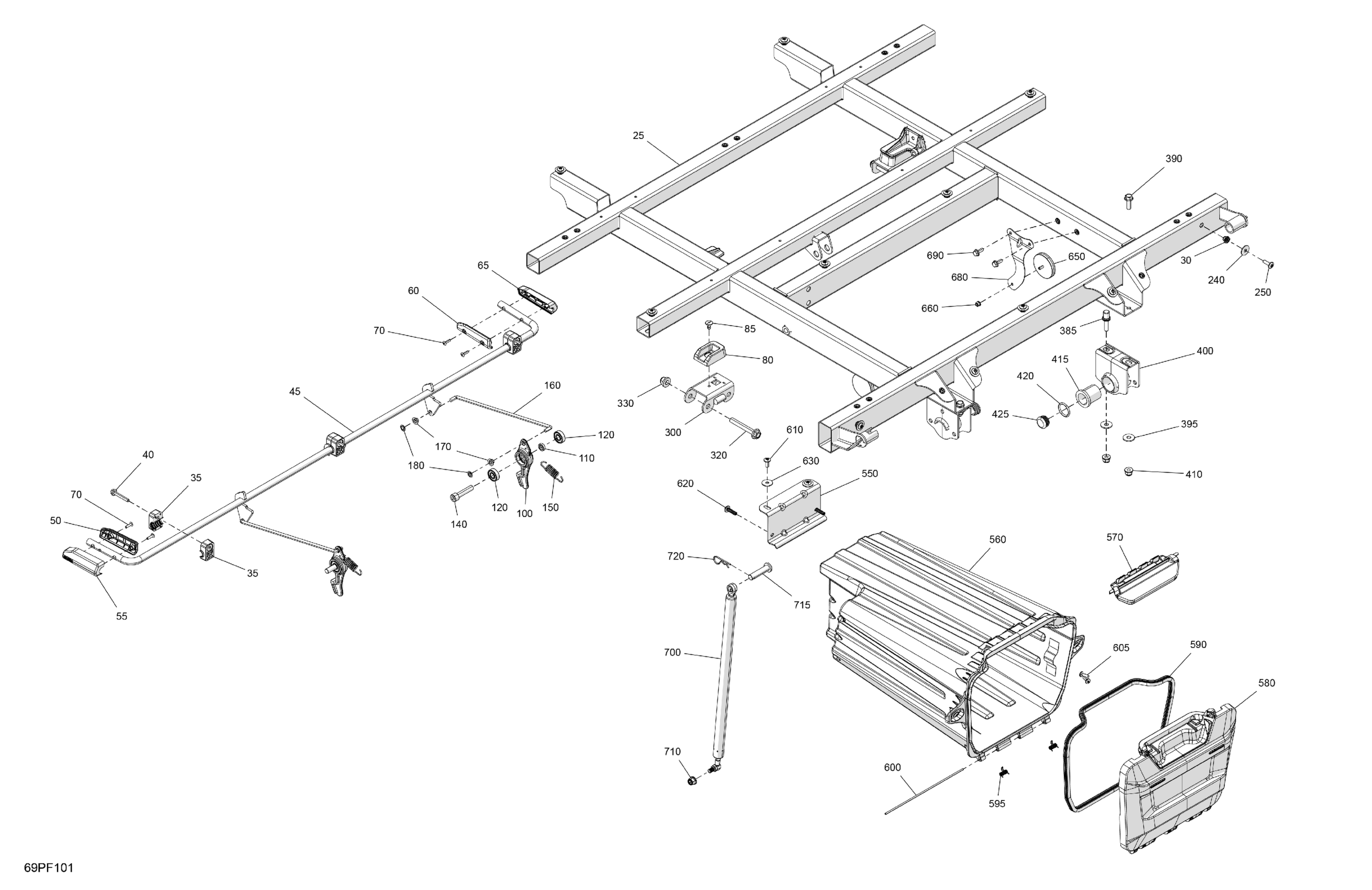

Can-Am Off-Road North America - OUT-MAX - 6X6 - DPS - 850 EFI - 2HTA - Granite Grey - 2026 07- Body - Cargo Frame Diagram

Open Carrier Frame

Insert Half Hex Body M6 x 1.0

Ring Half

Hex. Flange Screw M6 X 40, Scotch Grip

Latch Handle

LH Interior Molded Latch Handle

LH Exterior Molded Latch Handle

RH Interior Molded Latch Handle

RH Exterior Molded Latch Handle

Torx-Truss Pt K40 X 16

Rubber Stopper

Black, Pop Rivet 3/16 X ,550

Retaining Hook

Bushing

Ball Bearing

Socket Screw Nylon Patch M10 X 45

Brake Pedal Spring

Latch Rod

Bushing Shouldered

Retaining Ring

Flat Washer M6.6 X 22

Screw Torx M6 X 20

Retaining Plate

Hex. Flange Screw M10 X 70

Hex. Flange Elastic Nut M10

Protruding Stud M8 X 28

Hex. Flange Screw M8 X 25

Stainless Steel Flat Washer

Pivot Support

Elastic Flange Nut M8

Hinge Bushing

O-Ring

Cap

Box Support

Rear Storage Box Kit

Box Handle

Upper Rear Box Cover

Gasket

Torsion Spring

Hinge Pin

Torx Screw K50 X 16

Screw Torx M6 X 20

Plastite Torx Screw M6.81X25

Flat Washer M6.6 X 22

Red, Reflector

Hex. Flange Elastic Nut M5

Reflector Support

Hex. Flange Screw M6 X 16, Scotch Grip

Shock Absorber

Hex. Elastic Flange Nut M8

Pin Clevis

Hair Pin
