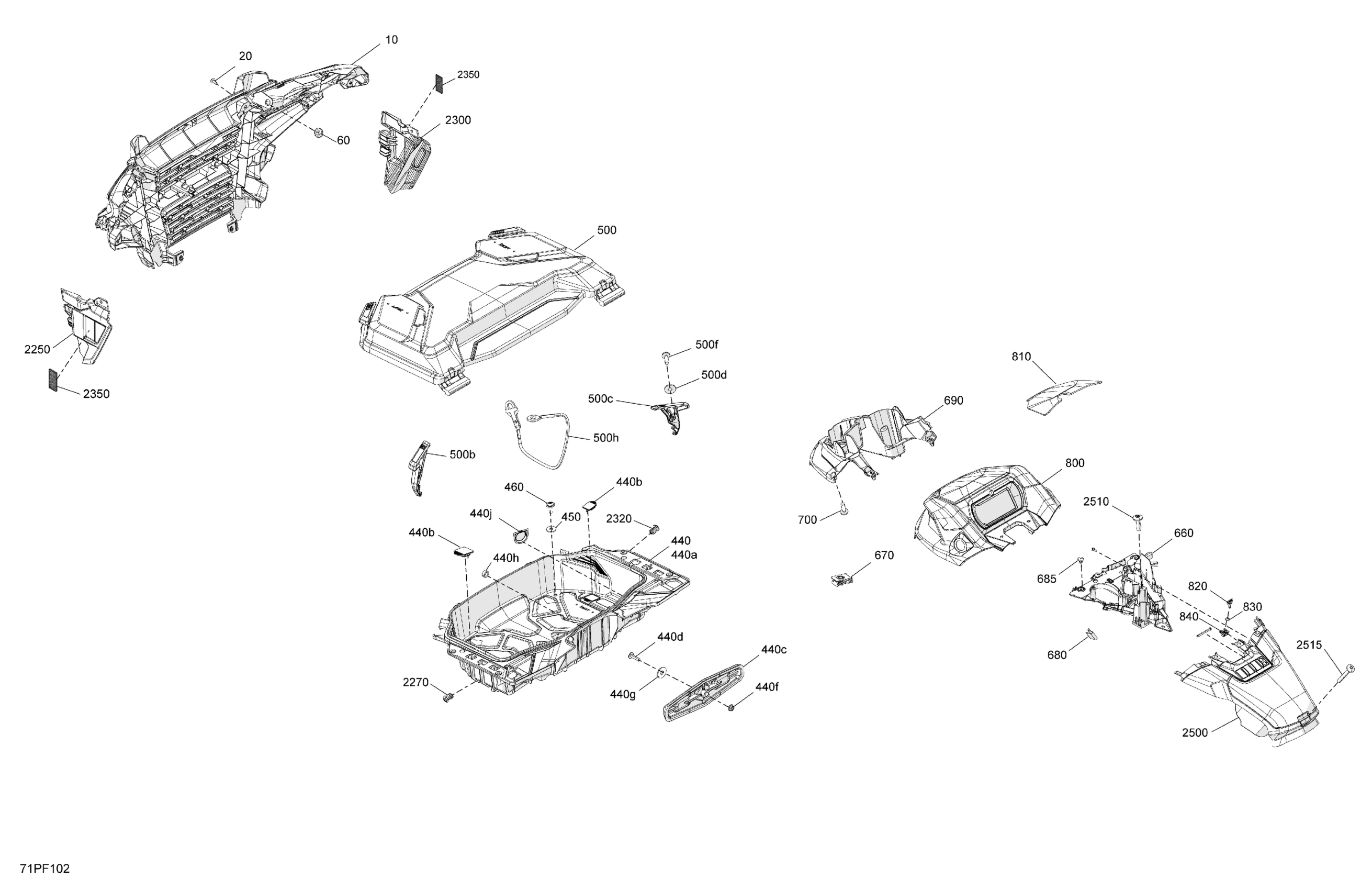

Can-Am OUT-MAX - 6X6 - DPS - 700 EFI - 2FTB - Granite Grey - 2026 Body - Front Section Diagram

Description

Price

Front Grille

705013201

$89.99

Screw Torx M6 X 20

250001257

$1.34

Grommet

705003264

$3.43

440

Front Storage Box Kit

715011222

$199.97

440a

Front Storage Box

705019056

Unavailable

440b

Box Cap

705015244

$7.75

440c

Cam

705018509

$9.91

440d

Torx Truss Screw M6 X 25

250000807

$1.74

440f

Hex. Flange Nut M6

233161414

$1.74

440g

Flat Washer

250200097

$1.74

440h

Bushing

708300737

$4.43

440j

Body Cap

705014660

$5.70

450

Stainless Steel Flat Washer

234062670

$1.74

460

Screw Torx M6 X 20

250001257

$1.34

500

Front Box Cover Kit | Includes 500 to 500k

715010526

$139.99

500b

Latch

707900789

$7.57

500c

Latch

707900799

$7.57

500d

Washer M5

250200025

$0.61

500f

Torx Screw K50 X 16

250000720

$1.39

500h

Retaining Cable

708304440

$29.82

660

Multi Purpose Support

705018661

$13.88

670

Panel Nut M6 X 1.0

250100198

$1.73

680

Clip

414479100

$1.81

685

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

690

Dashboard Support

705014887

$41.01

700

Torx Screw K50 X 16

250000720

$1.39

800

Dashboard

705012914

$41.76

810

Foam

705015852

$6.82

820

Quarter Turn

708400278

$4.15

830

Washer

708400286

$3.90

840

Clip

708400285

$3.90

2250

LH Front Radiator Deflector

705015256

$16.39

2270

Tuflok Plastic Rivet

293150230

$1.21

2300

RH Front Radiator Deflector

705015257

$16.39

2320

Tuflok Plastic Rivet

293150230

$1.21

2350

Amber, Reflector

520002680

$18.63

2500

Glove Box Ass'y

705019060

$59.67

2510

Torx Screw M6 X 20

250000712

$1.74

2515

Torx Truss Screw M6 X 50

250000749

$3.01
