Description

Price

25

Open Carrier Frame

708304771

$455.35

30

Insert Half Hex Body M6 x 1.0

250100199

$2.54

35

Ring Half

708305237

$7.31

40

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$3.61

45

Latch Handle

708304679

$83.05

50

LH Interior Molded Latch Handle

708304700

$5.38

55

LH Exterior Molded Latch Handle

708305012

$5.38

60

RH Interior Molded Latch Handle

708304701

$5.38

65

RH Exterior Molded Latch Handle

708305013

$5.38

70

Torx-Truss Pt K40 X 16

250000759

$1.74

80

Rubber Stopper

708304685

$5.52

85

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

100

Retaining Hook

708305234

$46.12

110

Bushing

705601622

$14.75

120

Bearing

705600458

$7.03

140

Socket Screw Nylon Patch M10 X 45

250001120

$1.34

150

Brake Pedal Spring

705600792

$9.22

160

Latch Rod

708305011

$5.52

170

Bushing Shouldered

293710216

$3.68

180

Retaining Ring

293370190

$2.75

240

Flat Washer M6.6 X 22

250200162

$1.91

250

Screw Torx M6 X 20

250001257

$1.34

300

Retaining Plate

708305212

$28.43

320

Hex. Flange Screw M10 X 70

207607046

$2.91

330

Hex. Flange Elastic Nut M10

233201436

$1.74

385

Protruding Stud M8 X 28

250300645

$3.39

390

Hex. Flange Screw M8 X 25

207682544

$0.90

395

Stainless Steel Flat Washer

234082670

$1.74

400

Pivot Support

708304664

$16.89

410

Elastic Flange Nut M8

233281464

$0.83

415

Hinge Bushing

708303361

$10.98

420

O-Ring

293300131

$5.52

425

CAP

293000156

Unavailable

550

License Plate Support

708304817

$12.63

610

Screw Torx M6 X 20

250001257

$1.34

650

Red, Reflector

705016982

$12.32

660

Hex. Flange Elastic Nut M5

233251414

$1.66

680

Reflector Support

708200987

$4.06

690

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

700

Shock Absorber

708305227

$110.74

710

Hex. Elastic Flange Nut M8

233281416

$1.25

715

Pin Clevis

250400098

$5.52

720

Hair Pin

414575600

$1.51

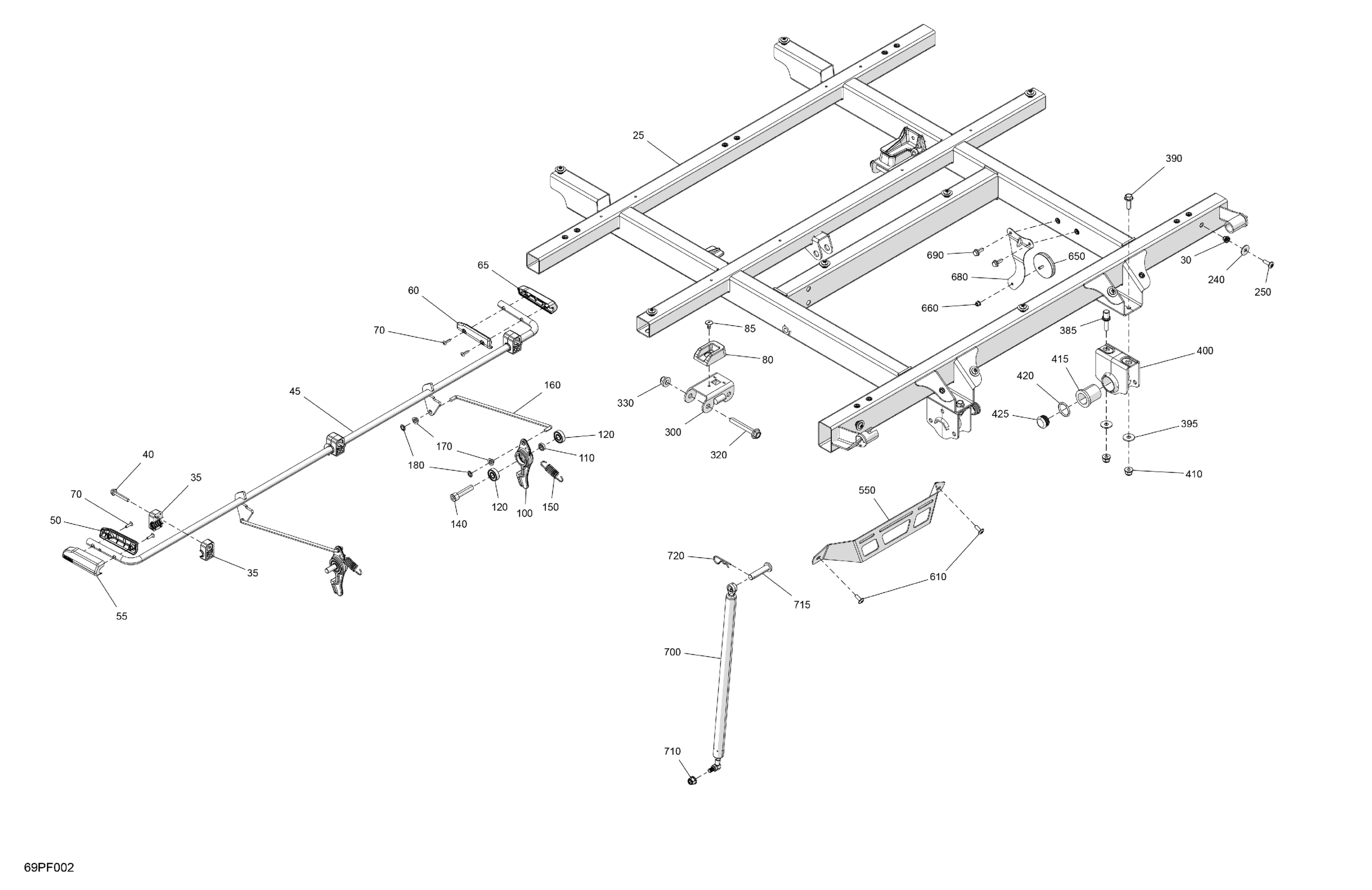

Can-Am OUT-MAX - 6X6 - DPS - 700 EFI - 2FTB - Granite Grey - 2026 Body - Cargo Frame Diagram

Open Carrier Frame

Insert Half Hex Body M6 x 1.0

Ring Half

Hex. Flange Screw M6 X 40, Scotch Grip

Latch Handle

LH Interior Molded Latch Handle

LH Exterior Molded Latch Handle

RH Interior Molded Latch Handle

RH Exterior Molded Latch Handle

Torx-Truss Pt K40 X 16

Rubber Stopper

Black, Pop Rivet 3/16 X ,550

Retaining Hook

Bushing

Bearing

Socket Screw Nylon Patch M10 X 45

Brake Pedal Spring

Latch Rod

Bushing Shouldered

Retaining Ring

Flat Washer M6.6 X 22

Screw Torx M6 X 20

Retaining Plate

Hex. Flange Screw M10 X 70

Hex. Flange Elastic Nut M10

Protruding Stud M8 X 28

Hex. Flange Screw M8 X 25

Stainless Steel Flat Washer

Pivot Support

Elastic Flange Nut M8

Hinge Bushing

O-Ring

CAP

License Plate Support

Screw Torx M6 X 20

Red, Reflector

Hex. Flange Elastic Nut M5

Reflector Support

Hex. Flange Screw M6 X 16, Scotch Grip

Shock Absorber

Hex. Elastic Flange Nut M8

Pin Clevis

Hair Pin
