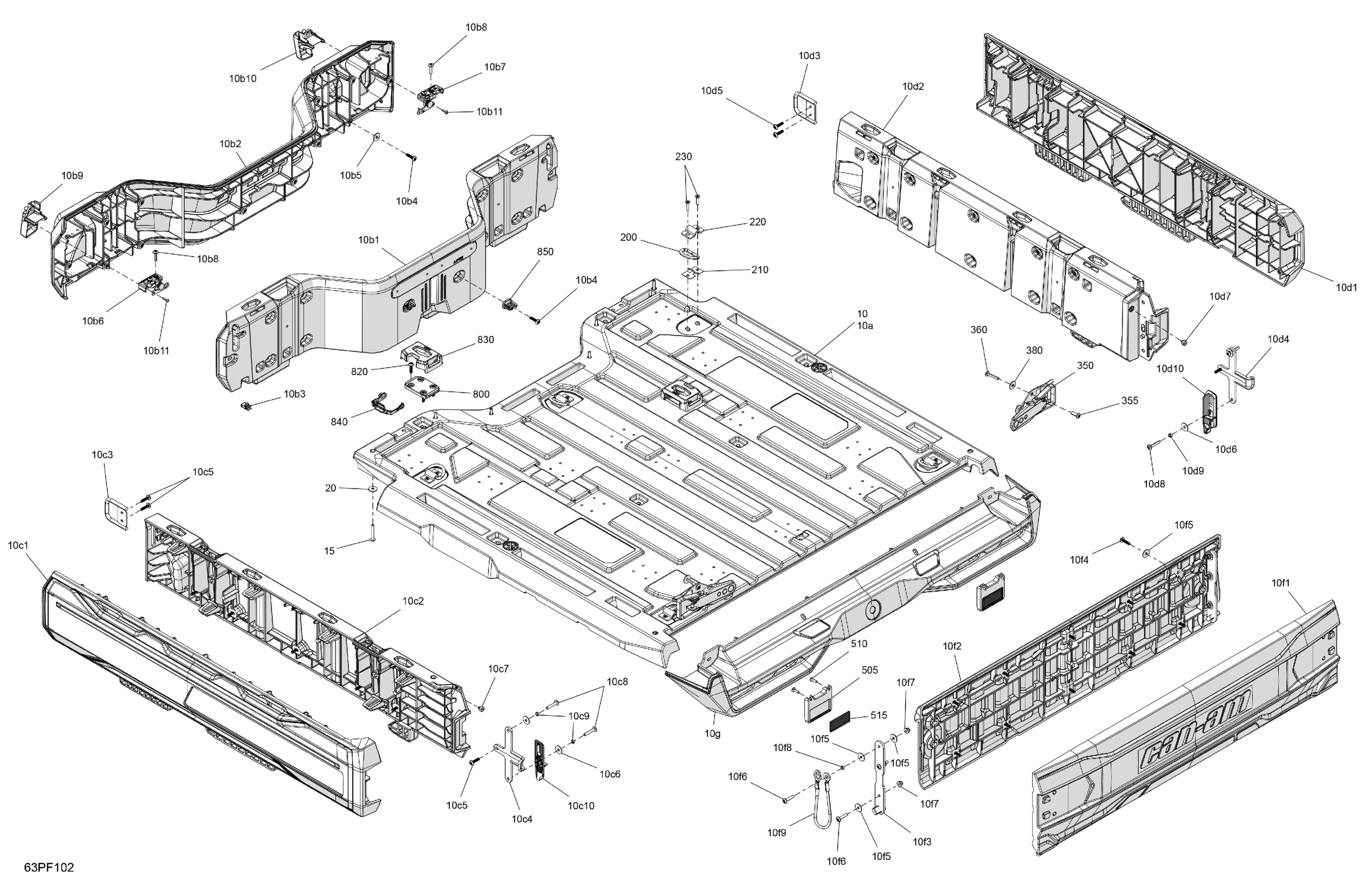

Can-Am OUT-MAX - 6X6 - BACKCOUNTRY - 1000R EFI - 2KTA - Stealth Black - 2026 Body - Cargo Diagram

#

Description
Price

10

Open Carrier Kit | Includes 10 to 10g

715011226

Unavailable

10a

Open Carrier

708304633

Unavailable

10b1

Open Carrier Interior Panel

708304672

$319.99

10b2

Open Carrier Exterior Panel

708304673

$319.99

10b3

Panel Nut M6 X 1.0

250100245

$3.49

10b4

Hex. Screw Pt K60 X 25

250000980

$2.11

10b5

Flat Washer M6.6 X 22

250200162

$2.32

10b6

LH Latch

705013095

$43.99

10b7

RH Latch

705013096

$43.99

10b8

Torx Truss Screw M6 X 25

250000807

$2.11

10b9

LH Front Latch Handle

708304644

$6.59

10b10

RH Front Latch Handle

708304643

$6.59

10b11

Phillips Screw K40 X 16

250000723

$0.98

10c1

LH Exterior Cargo Box Panel

708304640

$179.99

10c2

LH Interior Cargo Box Panel

708304642

$179.99

10c3

Retaining Plate

708304876

$49.99

10c4

Retaining Plate

708304796

$49.99

10c5

Hex. Screw Pt K60 X 25

250000980

$2.11

10c6

Flat Washer M6.6 X 22

250200162

$2.32

10c7

Rubber Bumper

293830005

$8.09

10c8

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

10c9

Bushing

293900101

$7.87

10c10

LH Rear Lock

708305300

$6.19

10d1

RH Exterior Cargo Box Panel

708304639

$179.99

10d2

RH Interior Cargo Box Panel

708304641

$179.99

10d3

Retaining Plate

708304876

$49.99

10d4

Retaining Plate

708304796

$49.99

10d5

Hex. Screw Pt K60 X 25

250000980

$2.11

10d6

Flat Washer M6.6 X 22

250200162

$2.32

10d7

Rubber Bumper

293830005

$8.09

10d8

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

10d9

Bushing

293900101

$7.87

10d10

RH Rear Lock

708305301

$6.19

10f1

Tailgate Exterior Panel

708304637

$124.99

10f2

Tailgate Liner

708304638

$159.99

10f3

Tailgate Support

708304800

$49.99

10f4

Hex. Screw Pt K60 X 25

250000980

$2.11

10f5

Flat Washer M6.6 X 22

250200162

$2.32

10f6

Stainless, Torx Screw M6 X 30

250000842

$2.11

10f7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10f8

Bushing

293900101

$7.87

10f9

Cable Retaining

708302893

$30.99

10g

Taillight Support

708304687

$104.99

15

Torx-Truss M/S Nylon Patch M6 X 45

250001351

$1.90

20

Flat Washer M6.6 X 22

250200162

$2.32

200

D-Ring

708302990

$4.29

210

Tie-Down Ring Spring

708302991

$2.39

220

Tie-Down Ring Bracket

708302992

$2.39

230

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$2.11

350

Tailgate Latch Ass'y

708304828

$38.99

355

Binding Barrel Torx M6 X 20

250001339

$6.03

360

Screw Torx M6 X 35

250001258

$2.11

380

Flat Washer M6.6 X 22

250200162

$2.32

505

Reflector Support

708304683

$2.79

510

Torx Screw K50 X 16

250000720

$1.69

515

Red Reflector

520001820

$20.99

800

Support Anchoragelinq

708304476

$8.29

820

Plastite Torx Screw M6.81X25

250001231

$1.69

830

Anchorage Linq

708304475

$42.99

840

Linq Lock Lever

708304788

Unavailable

850

Retaining Hook

708305198

$10.49
