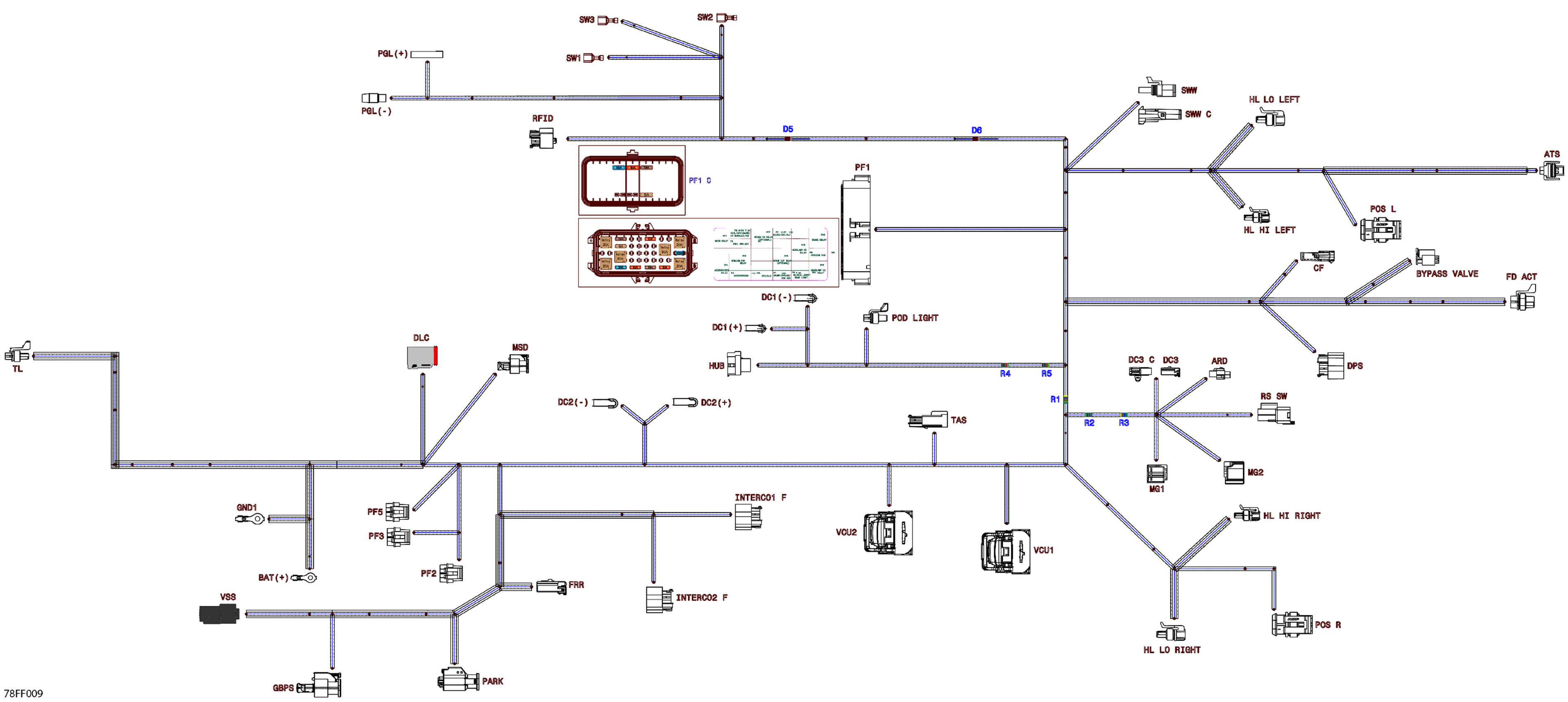

Can-Am OUT-MAX - 4X4 - EV - 2VTD - Bright White - 2026 Electric - Main Harness - 710009748 Diagram

#

Description
Price

200

Main Wiring Harness

710009748

$1.00

200a

Fuse Holder Cover Kit | Not Shown

715011425

$48.99

200c

Connector Support

710007290

$19.99

200d

Fuse Holder Cover

710007296

$47.49

200f

Positive Terminal Cap

710008598

$11.49

ARD

Sumitomo Female Connector 2 Cavities

710008152

$10.33

ARD

Wire Seal

710000402

$4.55

ARD

Female Terminal

409012100

$4.55

ATS

Female Terminal Housing

515176890

$12.99

ATS

Wire Seal

710001163

$7.69

ATS

Female Terminal

710001164

$8.89

BAT(+)

Open Barrel Terminal

278001392

$4.79

BYPASS VALVE

Housing

710003729

$22.49

BYPASS VALVE

Wire Seal

710001118

$1.16

BYPASS VALVE

Female Terminal

710003862

$2.43

CF

Female Housing, 2 Circuits

278000217

$9.59

CF

Wire Seal

278000218

$4.39

CF

Male Terminal

409004300

$5.61

CLIP12039

Christmas Tree Tie-Rap

710005237

$7.16

D5

Diode

409012700

$11.12

D6

Diode

409012700

$11.12

DC1(+)

Female Terminal

409010300

$4.39

DC1(-)

Female Terminal

409010300

$4.39

DC2(+)

Female Terminal

409010300

$4.39

DC2(-)

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3 C

Male Housing, 2 Circuits

710000667

$8.32

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

FD ACT

Connector Delphi Female 6 Cavities

710006038

$80.49

FD ACT

Plug

409013700

$4.55

FD ACT

Seal

278001482

$3.19

FD ACT

Female Terminal

710001134

$7.69

FL F

Seal

278001482

$3.19

FL F

Female Terminal

710001134

$7.69

FRR

Female Housing, 2 Circuits

515175658

$16.18

FRR

Female Terminal

710003896

$2.19

FR F

Seal

278001482

$3.19

FR F

Female Terminal

710001134

$7.69

GBPS

Tyco 3 Cavities Female Connector

710009819

$17.04

GBPS

Wire Seal

710001118

$1.16

GBPS

Terminal Tyco Female

710008740

$9.69

GND1

Open Barrel Terminal

278001392

$4.79

HAZARD

Cap

710000080

$8.29

HAZARD

Seal

409012300

$4.54

HAZARD

Female Terminal

409012100

$4.55

HL LO LEFT

Female Housing, 2 Circuits

515177192

$9.12

HL LO LEFT

Wire Seal

710001163

$7.69

HL LO LEFT

Female Terminal

710001164

$8.89

HL HI LEFT

Housing

710007660

$7.94

HL HI LEFT

Wire Seal

710001163

$7.69

HL HI LEFT

Female Terminal

710001164

$8.89

HL HI RIGHT

Housing

710007660

$7.94

HL HI RIGHT

Wire Seal

710001163

$7.69

HL HI RIGHT

Female Terminal

710001164

$8.89

HL LO RIGHT

Female Housing, 2 Circuits

515177192

$9.12

HL LO RIGHT

Wire Seal

710001163

$7.69

HL LO RIGHT

Female Terminal

710001164

$8.89

HUB

Female Tyco Connector 34 Cavities

515178745

$35.99

HUB

Plug

515176345

$21.99

HUB

Female Terminal

515176348

$6.99

HUB

Female Terminal

515176541

$4.55

INTERCO1 F

Housing

710001226

$13.49

INTERCO1 F

Seal

710001233

$3.19

INTERCO1 F

Seal Wire

710001332

$3.28

INTERCO1 F

Terminal

710001228

$3.28

INTERCO1 F

Terminal

710001229

$3.19

INTERCO2 F

Housing

710001951

$12.71

INTERCO2 F

Cap

710001225

$9.19

INTERCO2 F

Seal

710001233

$3.19

INTERCO2 F

Terminal

710001229

$3.19

KX(+)

Female Terminal

409010100

$5.61

KX(-)

Female Terminal

409010100

$5.61

LP

Male Terminal

515175232

$1.58

MC1 1

Terminal

710002315

$4.55

MC1 2

Terminal

710002315

$4.55

MG1

Sumitomo Female Connector 13 Cavities

710009839

$10.33

MG1

Plug

710008931

$8.79

MG1

Connector Seal

710009813

$13.77

MG1

Sumitomo Female Terminal

710009309

$4.55

MG2

Sumitomo Female 6 Cavities Connector

710009306

$10.33

MG2

Plug

710008931

$8.79

MG2

Connector Seal

710009813

$13.77

MG2

Sumitomo Female Terminal

710009309

$4.55

MSD

Connector

710009918

$14.29

MSD

Wire Seal

710001118

$1.16

MSD

Terminal Tyco Female

710008740

$9.69

OTH5248

Fuse Holder Cover

710007296

$47.49

OTH5528

Connector Support

710007290

$19.99

PARK

Female Connector 2 Cavities

710010566

Unavailable

PARK

Female Terminal

710010568

Unavailable

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Cap

710000840

$5.89

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Female Terminal

710000836

$5.61

PF1 C

Fuse Cover

710001026

$21.99

PF2

Fuse Holder

278001325

$8.79

PF2

Female Terminal

710000357

$7.69

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3

Female Terminal

710000357

$7.69

PF5

Fuse Holder

278001325

$8.79

PF5

Female Terminal

710000113

$6.99

PGL(+)

Insulated Sheath

278001007

$3.58

PGL(+)

Female Terminal

710000421

$6.11

PGL(-)

Insulated Sheath

278001008

$3.28

PGL(-)

Female Terminal

278002261

$7.55

POD LIGHT

Housing-Female

710005392

$5.35

POD LIGHT

Seal

278001482

$3.19

POD LIGHT

Female Terminal

710001134

$7.69

POS L

Female Housing, 2 Circuits

409209500

$15.27

POS L

Wire Seal

515176621

$7.49

POS L

Female Terminal

710001340

$5.89

POS R

Female Housing, 2 Circuits

409209500

$15.27

POS R

Wire Seal

515176621

$7.49

POS R

Female Terminal

710001340

$5.89

R2

Resistor

710011213

Unavailable

R3

Resistor

710010438

$3.28

RFID

Female Delphi Connector 5 Cavities

710007151

$17.04

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RS SW

Male Terminal Housing, 6 Circuits

710000835

$17.04

RS SW

Cap

710000080

$8.29

RS SW

Seal

409012300

$4.54

RS SW

Male Terminal

409011300

$5.93

SW1

Female Terminal

409010700

$5.39

SW2

Female Terminal

409010700

$5.39

SW3

Female Terminal

409010700

$5.39

SWW

Male Housing, 3 Circuits

278000273

$9.59

SWW

Wire Seal

278000218

$4.39

SWW

Female Terminal

278000223

$3.19

SWW C

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

SWW C

Wire Seal

278000216

$3.19

TAS

Housing

710001231

$13.99

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TL

Housing

710000645

$15.36

TL

Seal

278001482

$3.19

TL

Female Terminal

710001134

$7.69

TL L

Seal

278001482

$3.19

TL L

Female Terminal

710001134

$7.69

TL R

Seal

278001482

$3.19

TL R

Female Terminal

710001134

$7.69

TRL

Seal

409012300

$4.54

TRL

Female Terminal

409012100

$4.55

VCU1

Housing 56 Circuits

515178595

$29.49

VCU1

Plug

515178599

$3.17

VCU1

Plug

515178600

$3.17

VCU1

Terminal

515178596

$3.72

VCU1

Terminal

515178598

$3.61

VCU1

Terminal

515178666

$4.55

VCU2

Plug

515178599

$3.17

VCU2

Plug

515178600

$3.17

VCU2

Terminal

515178596

$3.72

VCU2

Terminal

515178597

$15.36

VCU2

Terminal

515178666

$4.55

VSS

Male Housing

515175666

$15.49

VSS

Male Terminal

710001348

$12.99
